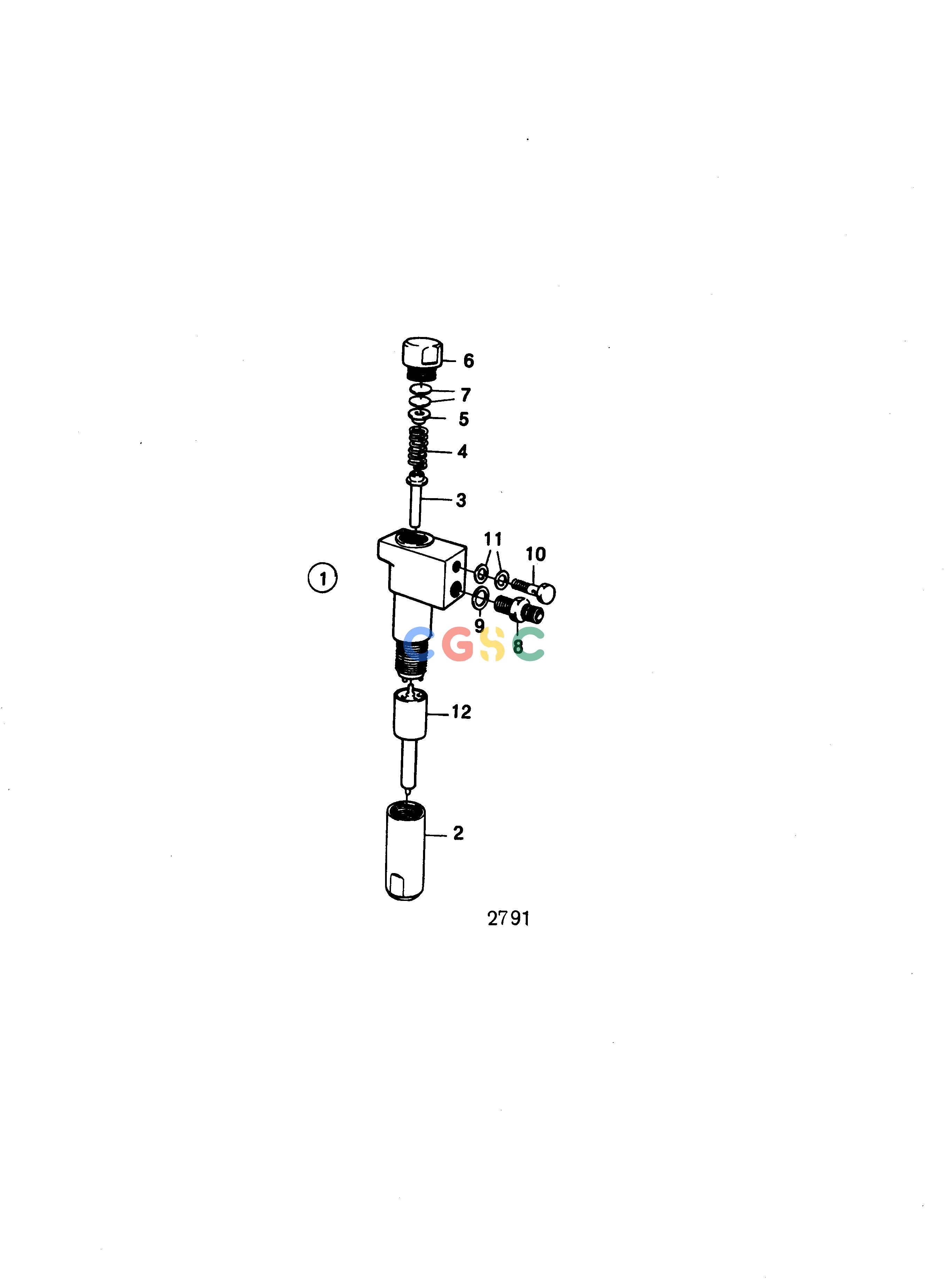

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BFuel SystemFuel InjectorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
584 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833191
|
[1] |
Injector
|
|
| 2. |
870036
|
[1] |
Cap nut
|
|
| 3. |
870785
|
[1] |
Clamping bolt
|
|
| 4. |
76751
|
[1] |
Spring
|
|
| 5. |
870040
|
[1] |
Guide bolt
|
|
| 6. |
870041
|
[1] |
Nut
|
|
| 7. |
870782
|
[1] |
Adjusting washer
|
TH=0,10mm
|
| 7. |
870775
|
[1] |
Washer
|
TH=0.30mm
|
| 7. |
870776
|
[1] |
Washer
|
TH=0.35mm
|
| 7. |
870777
|
[1] |
Washer
|
TH=0.40mm
|
| 7. |
870778
|
[1] |
Washer
|
TH=0.45mm
|
| 7. |
870779
|
[1] |
Washer
|
TH=0.50mm
|
| 7. |
870780
|
[1] |
Washer
|
TH=0.55mm
|
| 7. |
870781
|
[1] |
Washer
|
TH=0.60mm
|
| 7. |
870783
|
[1] |
Washer
|
TH=1.00mm
|
| 7. |
870784
|
[1] |
Washer
|
TH=2,00mm
|
| 8. |
870043
|
[1] |
Pipe connection
|
|
| 9. |
76786
|
[1] |
Gasket
|
|
| 10. |
74033
|
[1] |
Hollow screw
|
|
| 11. |
957171
|
[2] |
Gasket
|
|
| 12. |
233179
|
[1] |
Nozzle
|
|
