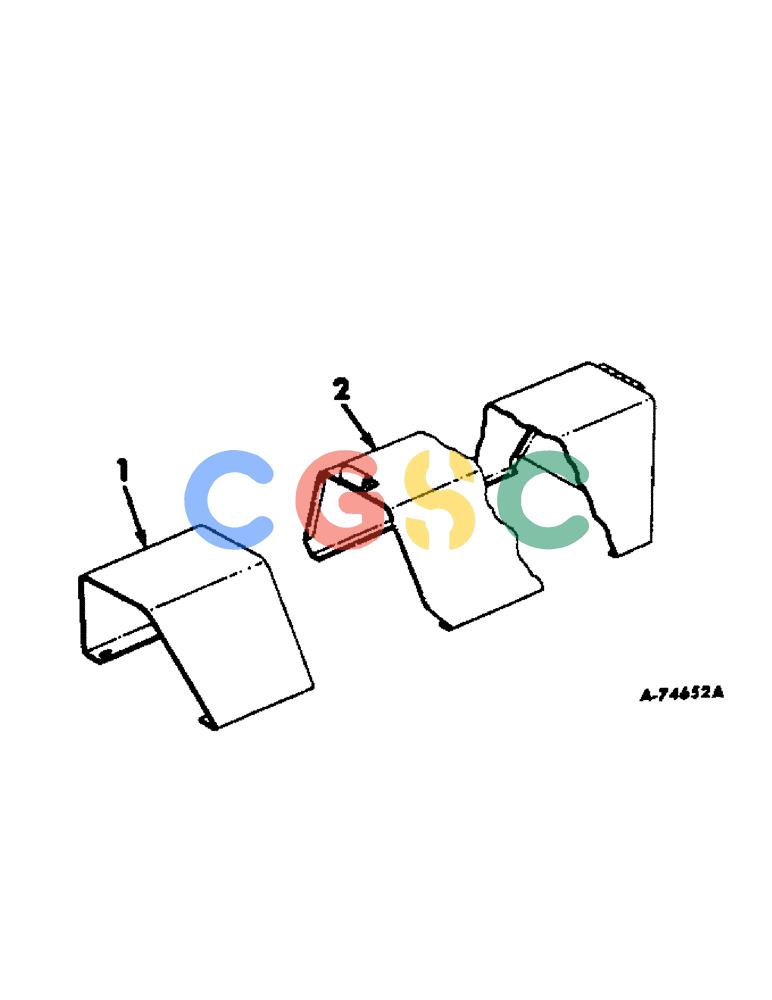

凯斯零件查询(440) - INTERNATIONAL HARVESTER RECTANGULAR BALER (NORTH AMERICA) (1/70-12/78) (E-74[A]) - PLUNGER CRANK SHIELD ATTACHMENT FOR ENGINE DRIVE ONLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
319 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
667974R1
|
[1] |
|
P
SHIELD, plunger crank front
|
| . . |
18764R1
|
[4] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16-18 x 3/4 C-Z hex-hd mach Superseded by part number: 424-512
|
| . . |
120376
|
[4] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[4] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 2. |
674203R1
|
[1] |
|
P
SHIELD ASSY, plunger crank
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
NUT, 5/16-18 C-Z hex.
|
| . . |
619855R1
|
[2] |
WASHER
|
IH
3/4 x 16 ga C-Z Superseded by part number: 86637953
|
