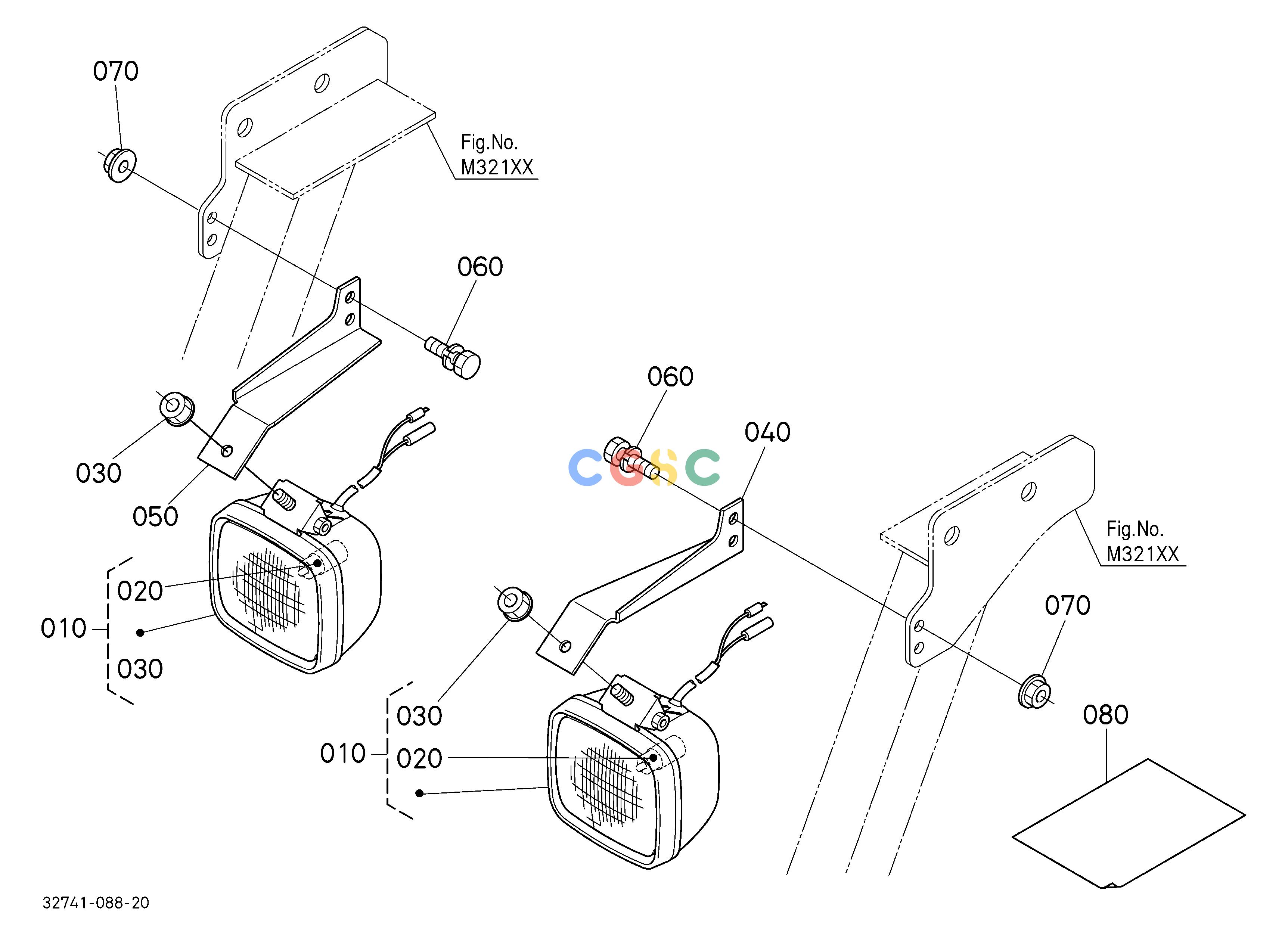

久保田零件查询U80501 WORKING LIGHT KIT (FRONT) (W/G No.L8045) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3F74075910
|
[2] |
LIGHT,WORK
|
0.7920(lbs); 0.360
|
| 020. |
3G71075900
|
[2] |
BLUB
|
0.0154(lbs); 0.007
|
| 030. |
0276360080
|
[2] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 040. |
3278175350
|
[1] |
STAY
|
0.4620(lbs); 0.210
|
| 050. |
3278175360
|
[1] |
STAY
|
0.4620(lbs); 0.210
|
| 060. |
0112350818
|
[4] |
BOLT,SEMS
|
0.0264(lbs); 0.012
|
| 070. |
0275150080
|
[4] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 080. |
---- |
[1] |
MANUAL,ASSEMBLY
|
0.0000(lbs); 0.000
|
