674950R91
|
[1] |
|
P

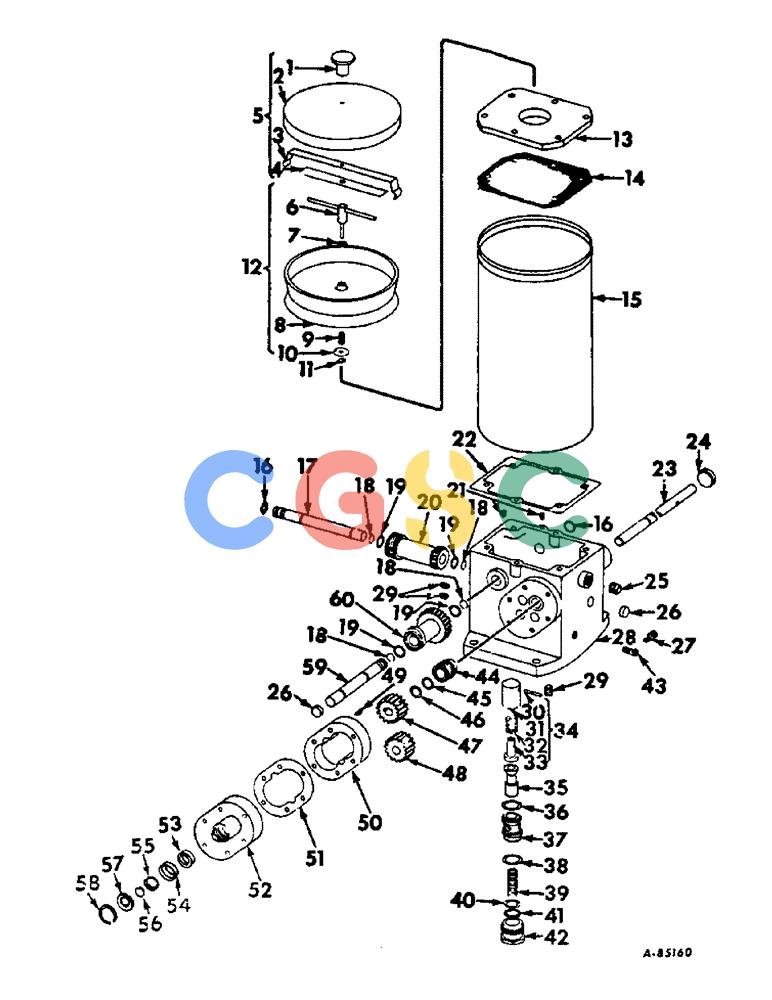

PUMP ASSY, lubrication, consists of the following service parts
|
| 1. |
588683R1
|
[1] |
|
P
KNOB
|
| 2. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
(Not serviced separately), order 588671R92
|
| 3. |
588715R2
|
[1] |
|
P
CLIP, spring
|
| . . |
179791
|
[1] |
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
|
IH
Superseded by part number: 88542
|
| . . |
115574
|
[1] |
WASHER, 1/4 int-tooth lock
|
|
| 4. |
626909R1
|
[1] |
|
P
RETAINER, spring clip
|
| 5. |
588671R92
|
[1] |
|
P
COVER ASSY
|
| 6. |
588686R91
|
[1] |
|
P
STUD AND PIN ASSY
|
| 7. |
NS
|
[1] |
NOT SERVICED
|
BAS
WASHER, not for service
|
| 8. |
588687R1
|
[1] |
|
P
FOLLOWER
|
| 9. |
588685R1
|
[1] |
|
P
SPRING
|
| 10. |
588677R1
|
[1] |
|
P
WASHER, plunger
|
| 11. |
626907R1
|
[1] |
RING,#18, Ext
|
IH
Snap, #18, Ext Superseded by part number: 482755C91
|
| 12. |
588667R92
|
[1] |
|
P
FOLLOWER ASSY
|
| 13. |
588697R1
|
[1] |
|
P
PLATE
|
| . . |
179817
|
[6] |
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd
|
IH
Superseded by part number: 280345
|
| . . |
103320
|
[6] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| 14. |
588714R1
|
[1] |
|
P
SCREEN
|
| 15. |
588695R1
|
[1] |
|
P
RESERVOIR
|
| 16. |
355967R1
|
[2] |
O-RING,0.364" ID x 0.003" Width
|
IH
3/8 x 1/2 x 1/16 Superseded by part number: 86629543
|
| 17. |
588704R1
|
[1] |
|
P
AXLE
|
| 18. |
370290R1
|
[4] |
SNAP RING,#50, .392" Dia, E-Type
|
IH
Ring, Retaining, #50, .392" Dia, E-Type Superseded by part number: 9635806
|
| 19. |
588692R1
|
[4] |
|
P
WASHER
|
| 20. |
588701R1
|
[1] |
|
P
GEAR AND WORM
|
| 21. |
140880
|
[2] |
SCREW, No. 10-32 x 1/4 hex-soc set
|
|
| 22. |
588698R1
|
[1] |
|
P
GASKET
|
| 23. |
588696R1
|
[1] |
|
P
SHAFT
|
| . . |
103385
|
[1] |
COTTER PIN,1/8" x 1"
|
IH
PIN, SPLIT (COTTER), 1/8" x 1" Superseded by part number: 80755
|
| . . |
Q5035
|
[1] |
WASHER
|
IH
17/32 x 1 x 16 ga Superseded by part number: 495-81254
|
| 24. |
588702R1
|
[1] |
|
P
PLUG
|
| 25. |
103883
|
[1] |
PIPE PLUG,Slotted, Headless, 1/8" NPT
|
IH
1/2 znd slt-headless pipe Superseded by part number: 86637724
|
| 26. |
588705R1
|
[2] |
|
P
PLUG
|
| 27. |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
CONNECTOR, 1/8-27 ball sleeve tube
|
| 28. |
588716R1
|
[1] |
|
P
HOUSING, base
|
| 29. |
217-459
|
[3] |
DRAIN PLUG,Sq Soc, 1/4" - 18 NPTF
|
CAS
1/4-28 automotive hex-soc-hd drain
|
| 34. |
588668R91
|
[1] |
|
P
VALVE DEPRESSOR ASSY, repair kit
|
| 36. |
588709R1
|
[1] |
|
P
WASHER, 15/16
|
| 37. |
588707R2
|
[1] |
|
P
SEAT, valve
|
| 38. |
364840R1
|
[1] |
O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro
|
IH
15/16 OD Superseded by part number: 511356
|
| 39. |
588706R1
|
[1] |
|
P
SPRING
|
| 40. |
298389R1
|
[1] |
RING
|
IH
O-RING, 3/4 OD Superseded by part number: 379181R1
|
| 41. |
626908R1
|
[1] |
|
P
WASHER
|
| 42. |
588708R2
|
[1] |
|
P
SCREW
|
| 43. |
200623C1
|
[1] |
|
P
BODY
|
| . . |
18607R1
|
[1] |
LOCK PIN,1/8" x 3/4", Slotted
|
IH
PIN, 1/8" x 3/4", Slotted Superseded by part number: 87663
|
| 45. |
588694R1
|
[1] |
|
P
WASHER
|
| 46. |
252739R1
|
[1] |
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
|
IH
1/2 x 11/16 x 3/32 Superseded by part number: 14457080
|
| 47. |
588690R1
|
[1] |
|
P
GEAR, higher, 16T
|
| 48. |
588691R1
|
[1] |
|
P
GEAR, lower, 16t
|
| 49. |
124543
|
[1] |
WOODRUFF KEY,#3, 1/8" x 1/2", HT
|
IH
Superseded by part number: 126-109
|
| 50. |
588689R2
|
[1] |
|
P
HOUSING, gear
|
| 51. |
588713R1
|
[1] |
WASHER
|
IH
GASKET
|
| 53. |
588693R1
|
[1] |
SEAL
|
|
| 54. |
588711R1
|
[1] |
|
P
RETAINER
|
| 55. |
588712R1
|
[1] |
|
P
RING
|
| 56. |
588710R1
|
[1] |
|
P
RING
|
| 57. |
588684R1
|
[1] |
|
P
WASHER
|
| 58. |
298099R1
|
[1] |
RING
|
IH
retaining Superseded by part number: 238627R1
|
| 59. |
588703R1
|
[1] |
|
P
AXLE
|
| 60. |
588670R91
|
[1] |
|
P
CAM ASSY
|
