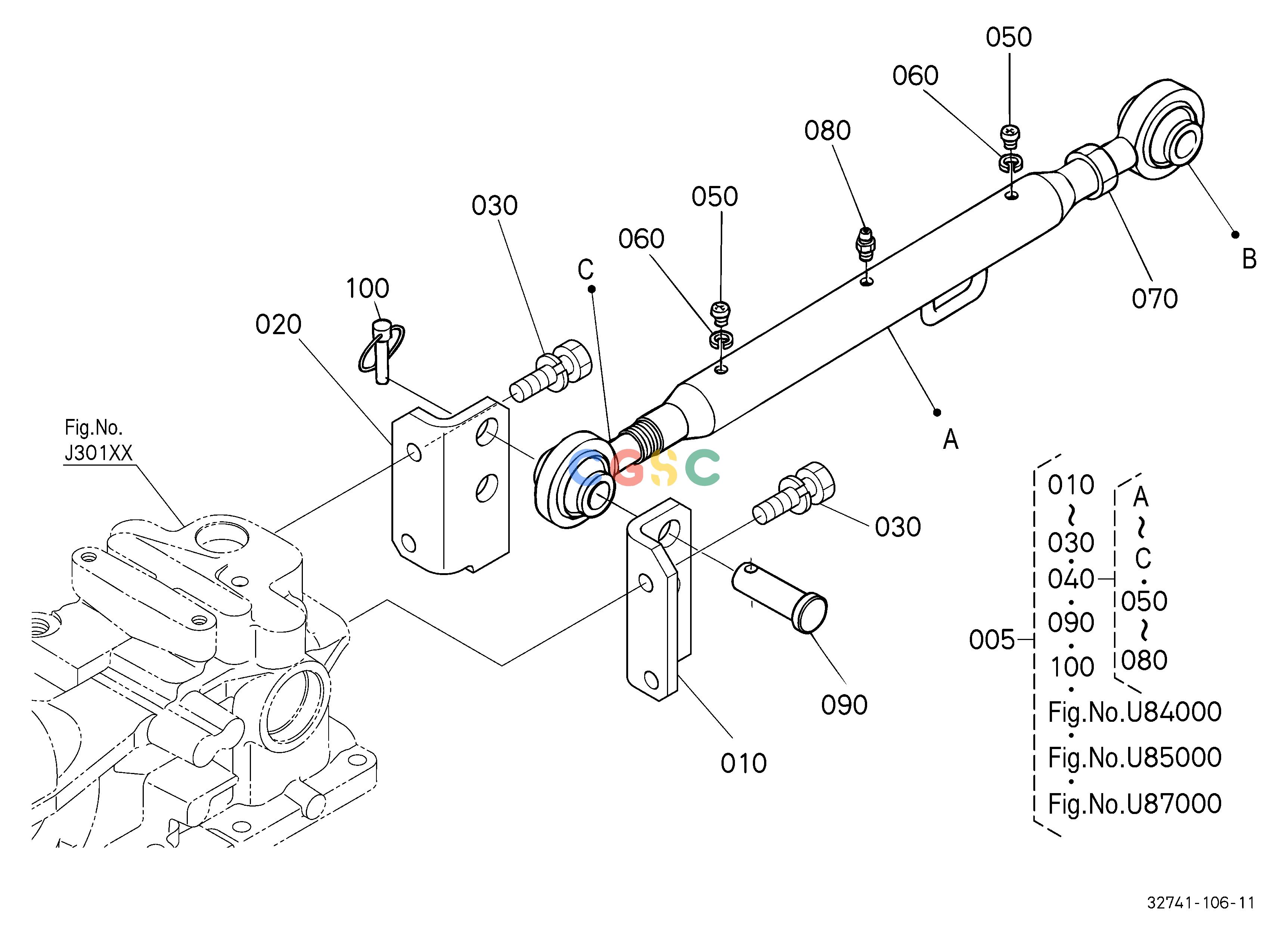

久保田零件查询U86000 3-P LINK KIT (TOP LINK) (W/G No.B3941) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
795 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 005. |
3274196710
|
[1] |
KIT,LINK
|
49.8080(lbs); 22.640
|
| 005. |
3274196713
|
[1] |
LINK,KIT.3P
|
49.8080(lbs); 22.640
|
| 010. |
6C20065190
|
[1] |
BRACKET,TOP LINK LH
|
1.4740(lbs); 0.670
|
| 020. |
6C20065160
|
[1] |
BRACKET,TOP LINK RH
|
1.4740(lbs); 0.670
|
| 030. |
0112351230
|
[4] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 040. |
6C07065400
|
[1] |
LINK,TOP,ASSY
|
4.6640(lbs); 2.120
|
| 040. |
6C20065400
|
[1] |
ASSY LINK,TOP
|
4.6200(lbs); 2.100
|
| 050. |
0301450606
|
[2] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0594(lbs); 0.027
|
| 060. |
0451250060
|
[2] |
WASHER,SPRING LOCK
|
0.0022(lbs); 0.001
|
| 070. |
0215250200
|
[1] |
NUT
|
0.0704(lbs); 0.032
|
| 080. |
0661310675
|
[1] |
NIPPLE,GREASE
|
0.0066(lbs); 0.003
|
| 090. |
3115071360
|
[2] |
PIN,JOINT
|
0.3652(lbs); 0.166
|
| 100. |
3415037640
|
[2] |
PIN,SET
|
0.1320(lbs); 0.060
|
