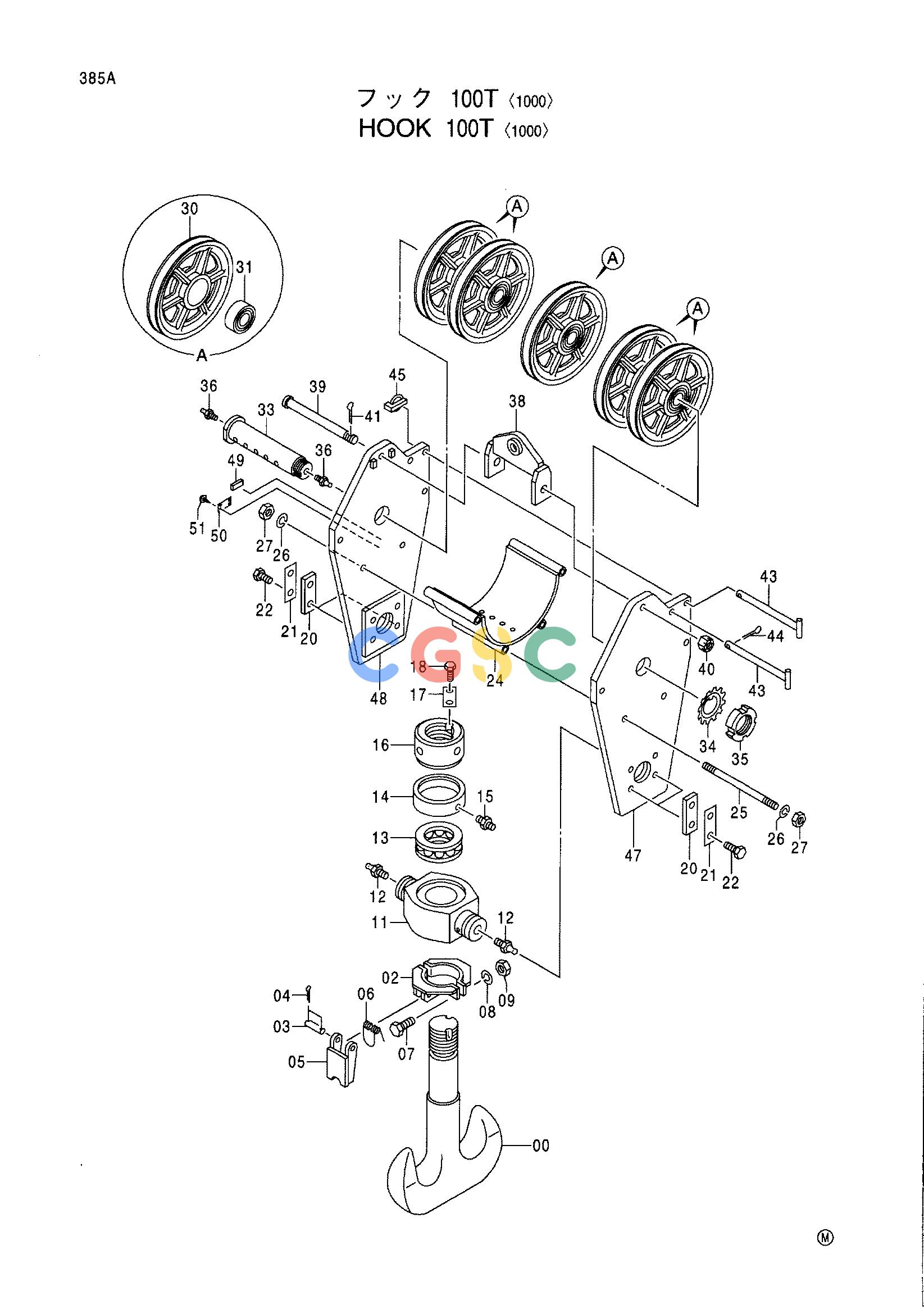

日立零件查询（CX1000）HOOK 100T <1000> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
547 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9032596 | [1] | HOOK 100T | |
| 00. | 2011784 | [1] | HOOK | |
| 02. | 8016317 | [2] | BAND | |
| 03. | 4098428 | [2] | PIN | |
| 04. | A766036 | [4] | PIN;SPLIT | |
| 05. | 9710798 | [2] | BRACKET | |
| 06. | 4098429 | [2] | SPRING;TORSION | |
| 07. | M211056 | [2] | BOLT | |
| 08. | A590916 | [2] | WASHER;SPRING | |
| 09. | M581613 | [2] | NUT | |
| 11. | 3017288 | [1] | TRUNNION | |
| 12. | J75482 | [2] | FITTING;GREASE | |
| 13. | 4098434 | [1] | BRG.;BALL | |
| 14. | 4098431 | [1] | COVER;BRG. | |
| 15. | J75481 | [1] | FITTING;GREASE | |
| 16. | 4098424 | [1] | NUT;ROUND | |
| 17. | X4873 | [1] | WASHER;LOCK | |
| 18. | 4120045 | [2] | BOLT | |
| 20. | 4098425 | [4] | PLATE;LOCK | |
| 21. | 4100098 | [4] | WASHER;LOCK | |
| 22. | J912455 | [8] | BOLT | |
| 24. | 8016937 | [1] | GUIDE;ROPE | |
| 25. | 4100958 | [4] | BOLT | |
| 26. | A590924 | [8] | WASHER;SPRING | |
| 27. | M582419 | [8] | NUT | |
| 30. | 3016549 | [5] | SHEAVE | |
| 31. | 4361339 | [5] | BRG.;ROL. | |
| 33. | 3017287 | [1] | AXLE | |
| 34. | 4101152 | [1] | WASHER;BRG. | |
| 35. | 4101151 | [1] | NUT;BRG. | |
| 36. | J75482 | [2] | FITTING;GREASE | |
| 38. | 9711213 | [1] | LINK | |
| 39. | 4100959 | [1] | PIN | |
| 40. | M534225 | [1] | NUT;CASTLE | |
| 41. | A768080 | [1] | PIN;SPLIT | |
| 43. | 9712248 | [2] | PIN | |
| 44. | A768056 | [1] | PIN;SPLIT | |
| 45. | 4001834 | [1] | PIN;RING | |
| 47. | 8016936 | [1] | PLATE | |
| 48. | 8016935 | [1] | PLATE | |
| 49. | 4100955 | [1] | PLATE | |
| 50. | 495652 | [1] | NAME-PLATE | |
| 51. | M492564 | [4] | SCREW;DRIVE | |
