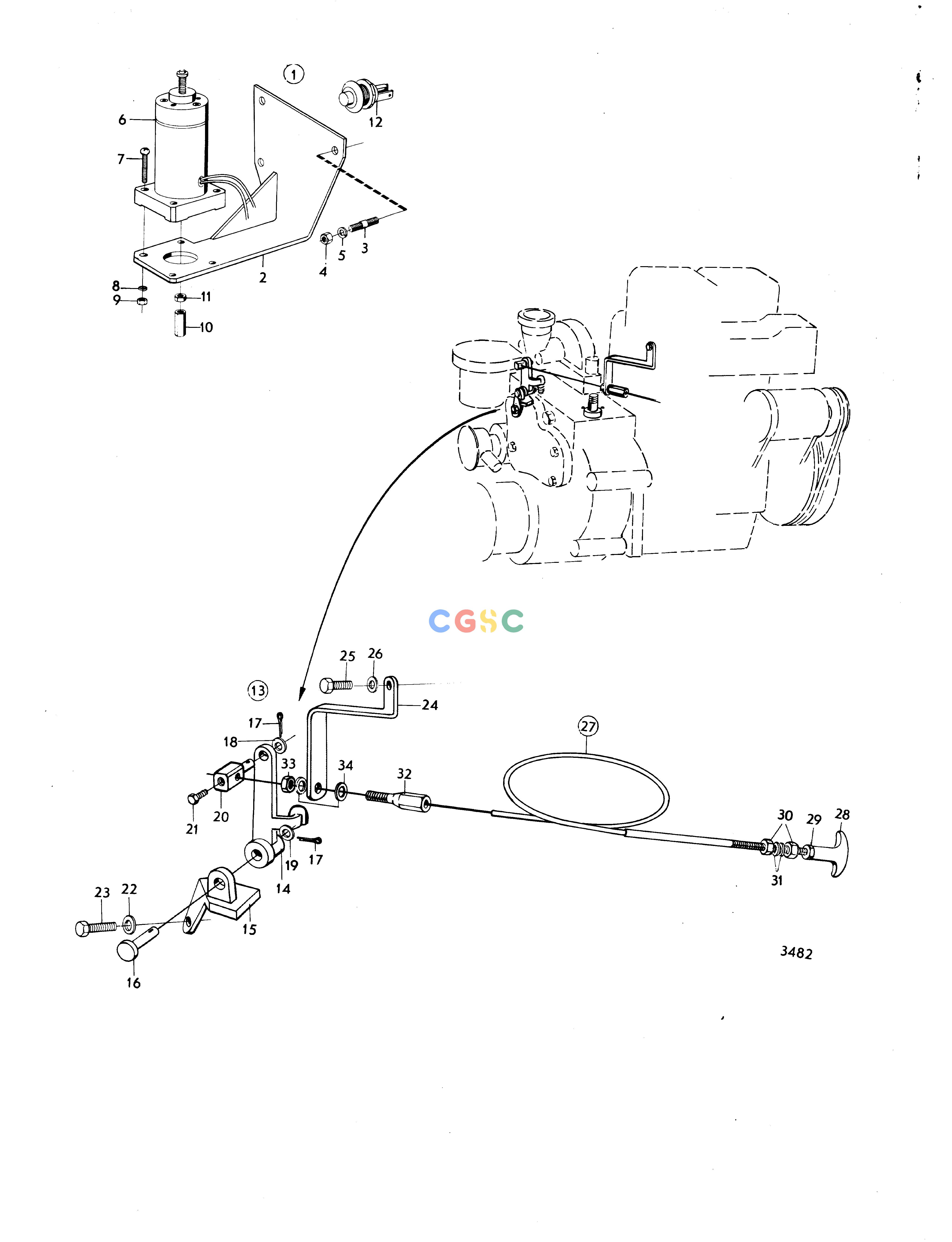

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BMiscellaneous EquipmentCold Start ControlEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
892 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Electrical., MD1B, alt
|
| 1. |
807309
|
[1] |
Local part
|
Electrical., MD2B, AQD2B, MD11., Obsolete part, Alt
|
| 2. |
807294
|
[1] |
Bracket
|
Included in 807299
|
| 2. |
807295
|
[1] |
Bracket
|
Included in 807309.
|
| 3. |
924060
|
[3] |
Stud
|
|
| 4. |
955782
|
[3] |
Hexagon nut
|
|
| 5. |
941907
|
[3] |
Spring washer
|
|
| 6. |
807296
|
[1] |
Cold start magnet
|
|
| 7. |
956080
|
[4] |
Cross recessed screw
|
|
| 8. |
941905
|
[4] |
Spring washer
|
|
| 9. |
955780
|
[4] |
Hexagon nut
|
|
| 10. |
944456
|
[1] |
Hexagon nut
|
|
| 11. |
942530
|
[1] |
Nut
|
|
| 12. |
843684
|
[1] |
Button
|
|
| 13. |
833682
|
[1] |
Control
|
Manual., MD1B, MD2B, AQD2B, MD11., Alt
|
| 14. |
833681
|
[1] |
Lever
|
|
| 15. |
833680
|
[1] |
Retainer
|
|
| 16. |
913125
|
[1] |
Clevis pin
|
|
| 17. |
17253
|
[2] |
Split pin
|
|
| 18. |
955892
|
[1] |
Washer
|
|
| 19. |
955894
|
[2] |
Washer
|
|
| 20. |
3841580
|
[1] |
Cube
|
|
| 21. |
192010
|
[1] |
Cross recessed screw
|
|
| 22. |
955892
|
[1] |
Washer
|
|
| 23. |
955274
|
[1] |
Hexagon screw
|
|
| 24. |
840535
|
[1] |
Bracket
|
(833679)
|
| 25. |
955294
|
[1] |
Hexagon screw
|
|
| 26. |
955894
|
[1] |
Washer
|
|
| 27. |
818470
|
[1] |
Push pull control
|
L=6900mm
|
| 27. |
818478
|
[1] |
Push pull control
|
L=3300mm
|
| 28. |
829241
|
[1] |
Handle
|
|
| 29. |
955844
|
[1] |
Hexagon nut
|
|
| 30. |
955857
|
[2] |
Hexagon nut
|
|
| 31. |
955950
|
[1] |
Toothed washer
|
|
| 32. |
829070
|
[1] |
Cable lock
|
|
| 33. |
950363
|
[1] |
Lock nut
|
|
| 34. |
955894
|
[2] |
Washer
|
|
