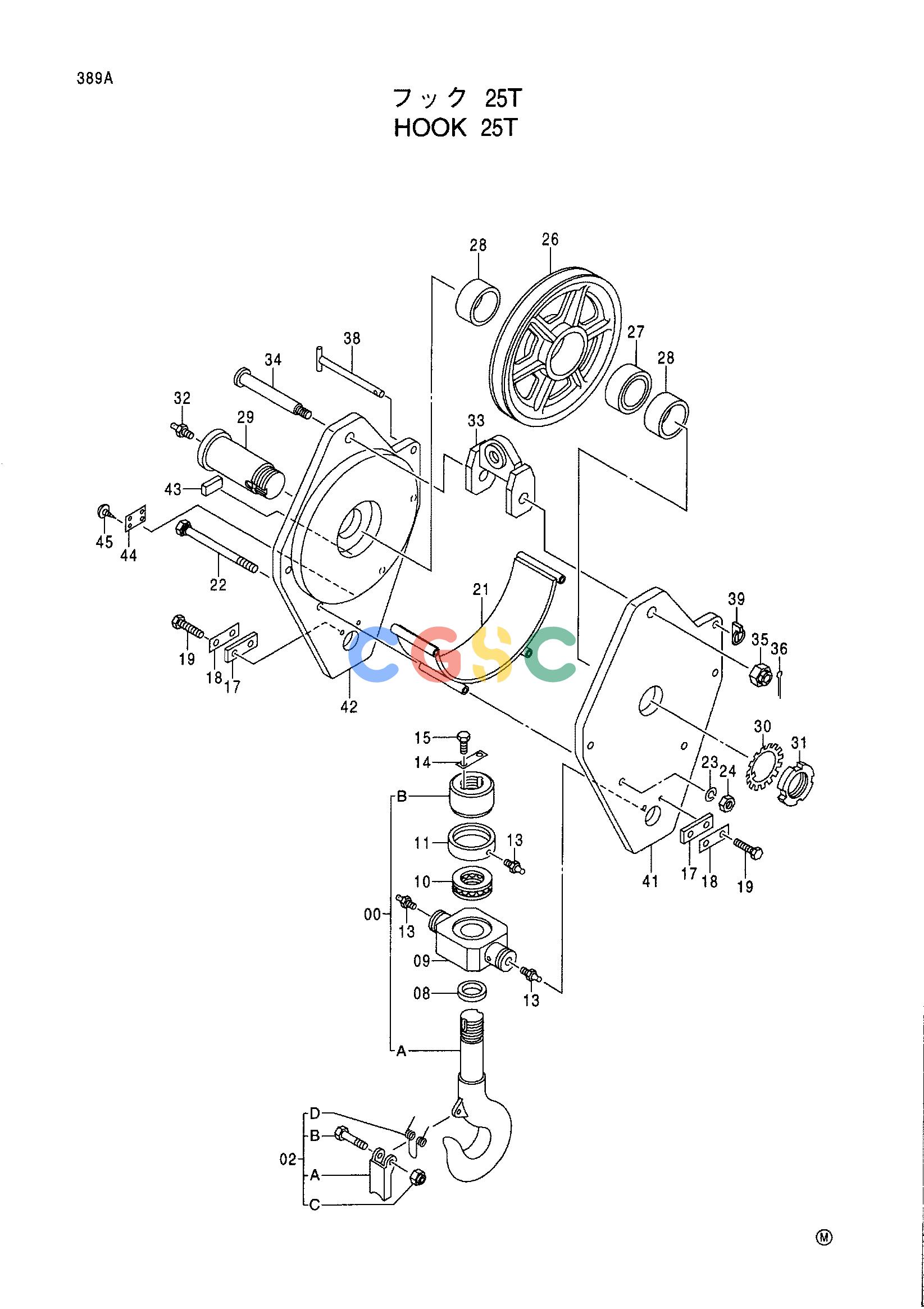

日立零件查询（CX1000）HOOK 25T Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
823 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9066513 | [1] | HOOK 25T | |
| 00. | 9059816 | [1] | HOOK | |
| 00A. | +++++++ | [1] | HOOK | |
| 00B. | +++++++ | [1] | NUT | |
| 02. | 9059815 | [1] | BRACKET ASS'Y | |
| 02A. | 4170767 | [1] | BRACKET | |
| 02B. | M211265 | [1] | BOLT | |
| 02C. | M660016 | [1] | NUT;U | |
| 02D. | 4170278 | [1] | SPRING;TORSION | |
| 08. | 4170280 | [1] | SPACER | |
| 09. | 3034854 | [1] | TRUNNION | |
| 10. | 4085517 | [1] | BRG.;BALL | |
| 11. | 4170279 | [1] | COVER;BRG | |
| 13. | J75481 | [3] | FITTING;GREASE | |
| 14. | 4105625 | [1] | WASHER;LOCK | |
| 15. | 4169514 | [2] | BOLT | |
| 17. | 4087951 | [2] | PLATE;LOCK | |
| 18. | 4105625 | [2] | WASHER;LOCK | |
| 19. | J901640 | [4] | BOLT | |
| 21. | 8034921 | [1] | GUIDE;ROPE | |
| 22. | 4159662 | [4] | BOLT | |
| 23. | A590924 | [4] | WASHER;SPRING | |
| 24. | J951024 | [4] | NUT | |
| 26. | 3016549 | [1] | SHEAVE | |
| 27. | 4361339 | [1] | BRG.;ROL. | |
| 28. | 4186182 | [2] | SPACER | |
| 29. | 3034855 | [1] | AXLE | |
| 30. | 4101152 | [1] | WASHER;BRG. | |
| 31. | 4101151 | [1] | NUT;BRG. | |
| 32. | J75482 | [1] | FITTING;GREASE | |
| 33. | 8034922 | [1] | LINK | |
| 34. | 4160419 | [1] | PIN | |
| 35. | M534225 | [1] | NUT;CASTLE | |
| 36. | A768080 | [1] | PIN;SPLIT | |
| 38. | 9720459 | [1] | PIN | |
| 39. | 4001834 | [1] | PIN;RING | |
| 41. | 8034923 | [1] | PLATE;HANGER | |
| 42. | 8034924 | [1] | PLATE;HANGER | |
| 43. | 4100955 | [1] | PLATE | |
| 44. | 495652 | [1] | NAME-PLATE | |
| 45. | M492564 | [4] | SCREW;DRIVE | |
