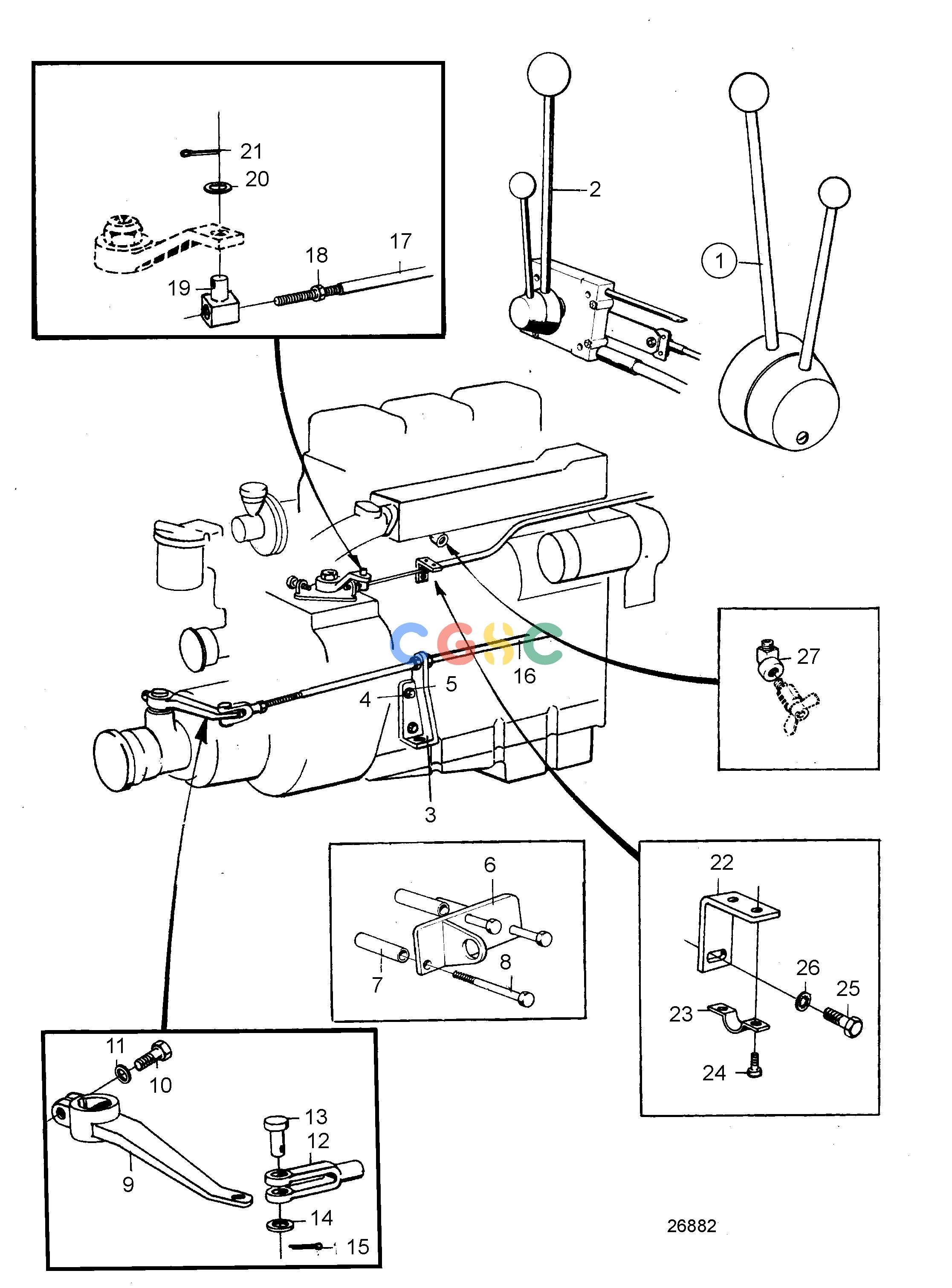

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BMiscellaneous EquipmentControl for Reduction Reverse Gear Ratio 3, 42:1EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
757 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833120
|
[1] |
Local part
|
|
| 2. |
833714
|
[1] |
Control
|
D4, late type
|
| 3. |
833361
|
[1] |
Bracket
|
MD3B.
|
| 4. |
955317
|
[2] |
Hexagon screw
|
MD3B.
|
| 5. |
941908
|
[2] |
Spring washer
|
MD3B.
|
| 6. |
833235
|
[1] |
Bracket
|
MD2B.
|
| 7. |
833243
|
[3] |
Spacer sleeve
|
MD2B., L=31mm
|
| 7. |
833244
|
[3] |
Spacer sleeve
|
MD2B., Alt L=40mm
|
| 8. |
955305
|
[3] |
Hexagon screw
|
MD2B.
|
| 9. |
807253
|
[1] |
Lever
|
For control 833120 type sr.
|
| 9. |
833700
|
[1] |
Lever
|
For control 833714 type D4.
|
| 10. |
955297
|
[1] |
Hexagon screw
|
|
| 11. |
941907
|
[1] |
Spring washer
|
|
| 12. |
942362
|
[1] |
Fork
|
For control 833120 type sr.
|
| 12. |
|
|
|
For control 833714 type D4., Included in control cable.
|
| 13. |
913125
|
[1] |
Clevis pin
|
|
| 14. |
955894
|
[1] |
Washer
|
|
| 15. |
907824
|
[1] |
Split pin
|
|
| 16. |
7742090_105
|
|
control cable
|
|
| 17. |
7742090_105
|
|
control cable
|
|
| 18. |
955844
|
[1] |
Hexagon nut
|
|
| 19. |
3841580
|
[1] |
Cube
|
|
| 20. |
955893
|
[1] |
Washer
|
|
| 21. |
907824
|
[1] |
Split pin
|
|
| 22. |
833248
|
[1] |
Bracket
|
|
| 23. |
21471054
|
[1] |
Bracket
|
|
| 24. |
956074
|
[2] |
Cross recessed screw
|
|
| 25. |
955294
|
[1] |
Hexagon screw
|
|
| 26. |
955949
|
[1] |
Toothed washer
|
|
| 27. |
807079
|
[1] |
Elbow nipple
|
|
