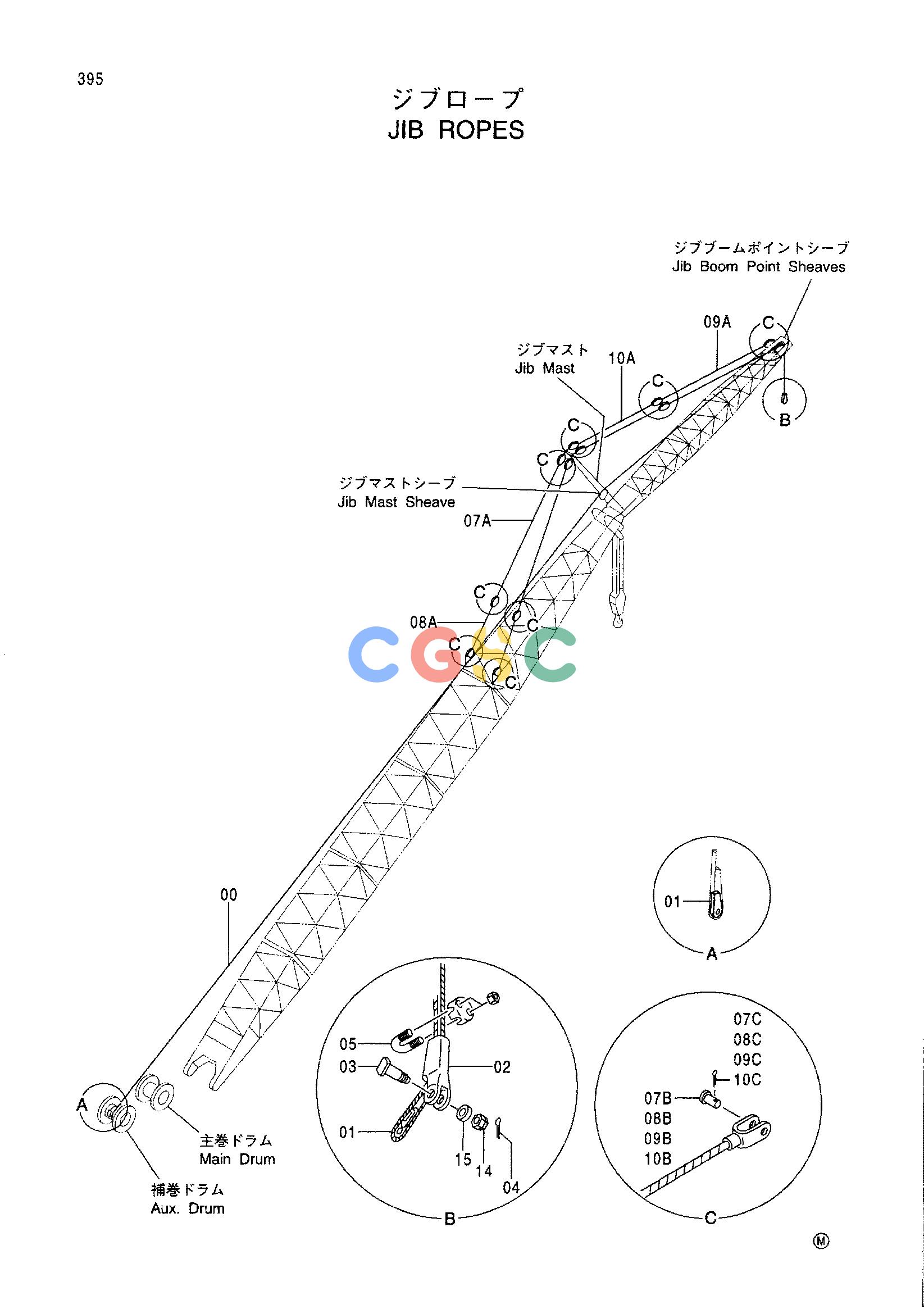

日立零件查询（CX1000）JIB ROPES Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
393 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4416646 | [1] | ROPE;WIRE 230M | |
| 01. | 4097430 | [2] | WEDGE | |
| 02. | 2011693 | [1] | SOCKET;ROPE | |
| 03. | 4387083 | [1] | PIN | |
| 04. | A766063 | [1] | PIN;SPLIT | |
| 05. | 94-2909 | [1] | CLIP;WIRE | |
| 07A-. | 9204799 | [2] | ROPE;PENDANT 9.42M | |
| 07A. | 8085142 | [1] | ROPE;PENDANT | |
| 07B. | 432992 | [2] | AXLE | |
| 07C. | A761063 | [2] | PIN;SPLIT | |
| 08A-. | 9178988 | [2] | ROPE;PENDANT 1.65M | |
| 08A. | 8075562 | [1] | ROPE;PENDANT | |
| 08B. | 432992 | [1] | AXLE | |
| 08C. | A761063 | [1] | PIN;SPLIT | |
| 09A-. | 9204800 | [2] | ROPE;PENDANT 14.5M | |
| 09A. | 8085143 | [1] | ROPE;PENDANT | |
| 09B. | 432992 | [2] | AXLE | |
| 09C. | A761063 | [2] | PIN;SPLIT | |
| 10A-. | 9174789 | [6] | ROPE;PENDANT 5.75M | |
| 10A. | 8073972 | [1] | ROPE;PENDANT | |
| 10B. | 432992 | [1] | AXLE | |
| 10C. | A761063 | [1] | PIN;SPLIT | |
| 14. | 4137247 | [1] | NUT;CASTLE | |
| 15. | 4114408 | [1] | WASHER | NOTE) REFER TO OPERATION MANUAL AS TO CONNECTING PENDANT ROPE. |
