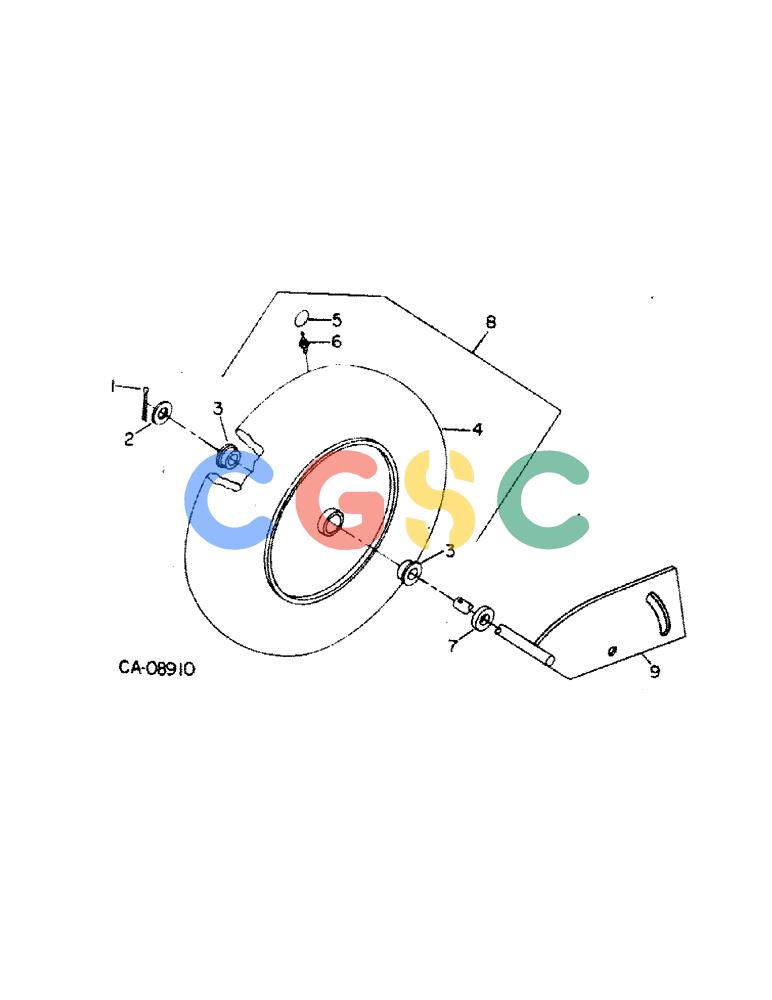

凯斯零件查询(445) - INTERNATIONAL HARVESTER RECTANGULAR BALER (NORTH AMERICA) (1/76-12/88) (A-16[A]) - PICKUP WHEEL 428 SERIAL NO. 701 AND ABOVE 435 SERIAL NO. 6001 AND ABOVE 445 TWINE SERIAL NO. 3001 AND ABOVE 445 WIRE SERIAL NO. 2001 AND ABOVE Case Agricultur
广数供应链运营团队, 15 02月, 2025，浏览：
496 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
103409
|
[1] |
PIN, SPLIT (COTTER),3/16" x 1 1/2"
|
IH
Superseded by part number: 20328R1
|
| 2. |
21753R1
|
[2] |
WASHER
|
IH
.781 x 1.500 x .054 znd Superseded by part number: 86624157
|
| 3. |
ZA104825
|
[2] |
BUSHING
|
IH
|
| 5. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
PRODUCT GRAPHIC, grease instructions 10 hrs
|
| 6. |
219-8
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 7. |
467750R1
|
[2] |
WASHER
|
IH
.781 x 1.500 x .105 Superseded by part number: 87034831
|
| 8. |
ZA104582
|
[1] |
WHEEL
|
IH
LESS TIRE, 8 x 2-1/2 drop center Superseded by part number: 700709878
|
| 9. |
674175R1
|
[1] |
SUPPORT
|
IH
BRACKET ASSY, pickup wheel
|
| . . |
18794R1
|
[2] |
BOLT,Hex, 7/16" - 14 x 1", Gr 2
|
IH
7/16 x 1 type 1 Superseded by part number: 9706729
|
| . . |
120383
|
[2] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
607891R1
|
[1] |
WASHER
|
IH
.469 x 1.000 x .054 Superseded by part number: 495-81158
|
