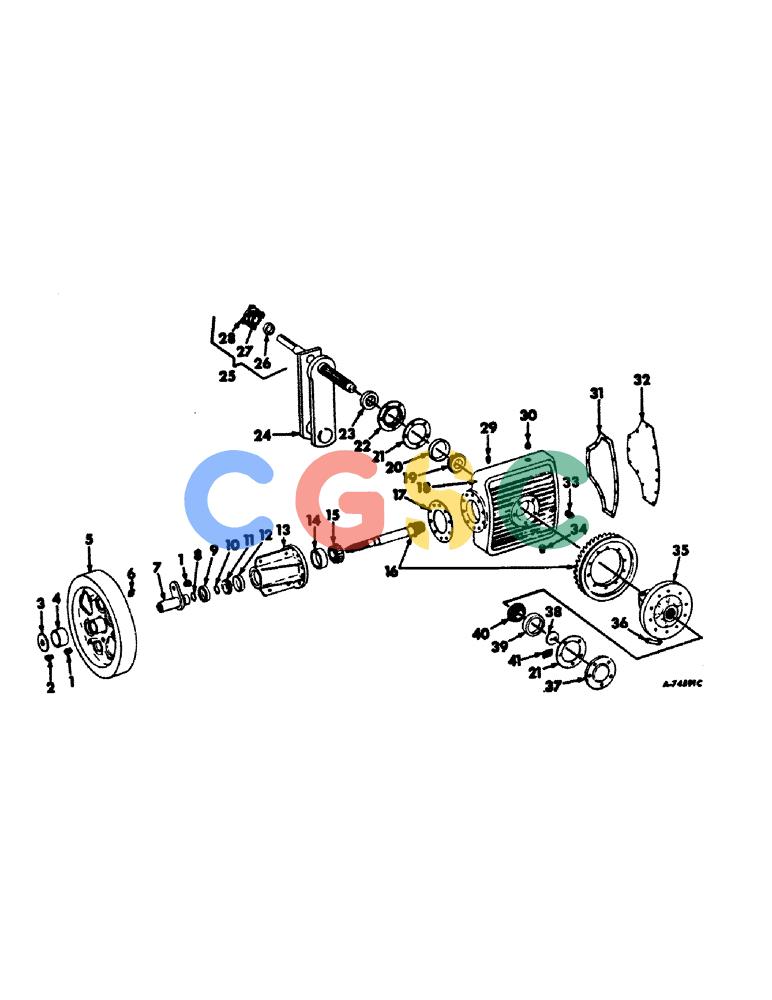

| 1. |
662555R1
|
[3] |
BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L
|
IH
shear bolt
|
| 2. |
181620
|
[7] |
SCREW,Hex, 5/16" - 24 x 2", Gr 5
|
IH
BOLT, 5/16-24 x 2 C-Z hex-hd cap screw shear Superseded by part number: 414-532
|
| . . |
120368
|
[7] |
NUT,5/16"-24, G5
|
IH
Superseded by part number: 86629539
|
| . . |
80681
|
[7] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 3. |
662103R1
|
[1] |
THRUST WASHER
|
IH
flywheel thrust
|
| 4. |
201741C1
|
[1] |
FLYWHEEL
|
IH
BUSHING, flywheel
|
| 5. |
667700R21
|
[1] |
FLYWHEEL
|
IH
W/BUSHING, main drive
|
| 6. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4-28 str self tap lub
|
| 7. |
202483C91
|
[1] |
HUB
|
IH
ASSY, flywheel service, consists of ref no. 1, 8 & 10
|
| 8. |
257611R1
|
[1] |
O-RING,-221, 70 Duro, 1.421" ID x .139" Thk
|
IH
1-7/16 x 1-11/16 x 1/8 Superseded by part number: 70925639
|
| 9. |
669530R91
|
[1] |
OIL SEAL
|
IH
SEAL, pinion shaft front oil
|
| 10. |
667605R1
|
[3] |
SHIM
|
IH
brg preload .005 (or as required)
|
| 10. |
667606R1
|
[2] |
SHIM
|
IH
brg preload .007 (or as required)
|
| 10. |
667607R1
|
[1] |
SHIM
|
IH
brg preload .020 (or as required)
|
| 11. |
ST2118
|
[1] |
TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"
|
IH
BEARING ASSY, pinion shaft front cone, replaces 62923R91 Superseded by part number: 84385347
|
| 12. |
ST987
|
[1] |
BEARING CUP
|
IH
BEARING, pinion shaft front cup, replaces 130503H Superseded by part number: 86900365
|
| 13. |
667601R1
|
[1] |
CASE
|
IH
main drive gear front
|
| . . |
179885
|
[4] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
Superseded by part number: 87689
|
| . . |
664573R1
|
[4] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, 1/2-13 hex lock Superseded by part number: 231-4218
|
| . . |
103323
|
[4] |
LOCK WASHER,1/2"
|
IH
WASHER, LOCK, 1/2" Superseded by part number: 87326976
|
| . . |
178373R1
|
[4] |
WASHER
|
IH
17/32 x 1 x 16 ga C-Z Superseded by part number: 495-51053
|
| . . |
202675C2
|
[10] |
|
P
SCREW, 7/16-14 x 1-1/2 znd hex-hd eslok cap
|
| . . |
120383
|
[10] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 14. |
107577R1
|
[1] |
BEARING, CUP
|
IH
BEARING, pinion shaft rear cup Superseded by part number: 86613256
|
| 15. |
662062R91
|
[1] |
ROLLER BEARING
|
IH
ASSY, pinion shaft rear cone
|
| 16. |
204105C1
|
[1] |
SET
|
CAS
GEAR SET, ring and pinion, replaces 662050R11
|
| . . |
137218
|
[1] |
COTTER PIN,5/32" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 5/32" x 1 1/4" Superseded by part number: 86523851
|
| . . |
425-1914
|
[1] |
SLOTTED NUT,7/8"-14, G5, Thk
|
CAS
NUT, 7/8-14 znd slotted thick hex
|
| 17. |
662088R1
|
[2] |
SHIM
|
IH
main drive gear .020 (or as required)
|
| 17. |
662089R1
|
[2] |
SHIM
|
IH
main drive gear .007 (or as required)
|
| 17. |
662090R1
|
[3] |
SHIM
|
IH
main drive gear .005 (or as required)
|
| 18. |
667600R2
|
[1] |
CASE
|
IH
main drive rear
|
| . . |
271558
|
[2] |
HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5
|
NNA
SCREW, 5/8-11 x 1-1/2 hex-hd cap Superseded by part number: 413-1024, 413-1024, NLS
|
| . . |
103325
|
[1] |
LOCK WASHER,5/8"
|
IH
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
27437R1
|
[2] |
BOLT,Locking, 3/4"-10 x 2 1/4", G8
|
IH
3/4 x 2-1/4 PHC p/t type 8 Superseded by part number: 322593R1
|
| . . |
87340
|
[2] |
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
|
NH
WASHER, LOCK, 3/4"
|
| 19. |
ST2083
|
[1] |
BEARING ASSY
|
IH
main drive gear RH cone
|
| 20. |
13390D
|
[1] |
ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"
|
IH
main drive gear RH cup Superseded by part number: 163044
|
| 21. |
662091R1
|
[8] |
SHIM
|
IH
main drive bevel gear .005 (or as required)
|
| 21. |
662093R1
|
[4] |
SHIM
|
IH
main drive bevel gear .007 (or as required)
|
| 21. |
662092R1
|
[2] |
SHIM
|
IH
main drive bevel gear .020 (or as required)
|
| 22. |
662017R1
|
[1] |
COVER
|
IH
main drie bevel gear brg
|
| . . |
202676C1
|
[5] |
|
P
SCREW, 3/8-16 x 1 znd hex-hd eslok cap
|
| . . |
120382
|
[5] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 23. |
662066R91
|
[1] |
OIL SEAL,60.33mm ID x 92.15mm OD x 11mm Thk
|
IH
plunger crank RH oil
|
| 24. |
667632R92
|
[1] |
CRANKSHAFT
|
IH
CRANK ASSY, plunger
|
| 25. |
667860R91
|
[1] |
BEARING ASSY,2.5" ID x 3.6875" OD x 1.90625"
|
IH
ASSY, plunger crank RH
|
| 26. |
668041R11
|
[1] |
NO LONGER SERVICED
|
IH
COLLAR W/SET SCREW, brg locking Superseded by part number: 668712R91
|
| 27. |
668040R91
|
[1] |
NO LONGER SERVICED
|
IH
BEARING, plunger crank Superseded by part number: 668712R91
|
| . . |
12686R1
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd
|
IH
BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd Superseded by part number: 84198537
|
| . . |
120378
|
[4] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
120384
|
[4] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| 29. |
152127H1
|
[1] |
BREATHER,1/8"-27, Short
|
IH
VENT ASSY, main drive gear box, replaces 663002R91 Superseded by part number: 219-433
|
| 30. |
444676
|
[1] |
DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF
|
IH
PLUG, 1-11-1/2 automotive sq soc-hd pipe Superseded by part number: 221-846
|
| 31. |
667603R2
|
[1] |
GASKET, main drive gear box cover
|
|
| 32. |
667602R11
|
[1] |
COVER
|
IH
ASSY, main drive gear case rear
|
| . . |
18764R1
|
[13] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 C-Z hex-hd mach Superseded by part number: 424-512
|
| 33. |
9617020
|
[1] |
PLUG,1/4" - 18 x 0.48"
|
NH
1/4-18 automotive Hex Socket
|
| 34. |
438159
|
[1] |
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
|
IH
PLUG, 1/2-14 automotive sq-hd pipe Superseded by part number: 444587
|
| 35. |
670568R1
|
[1] |
HUB
|
IH
main bevel gear
|
| . . |
181701
|
[10] |
BOLT,Hex, 1/2" - 20 x 1 5/8", Gr 5
|
IH
SCREW, 1/2-20 x 1-5/8 C-Z hex-hd cap Superseded by part number: 414-826
|
| 36. |
261622R1
|
[5] |
PLATE, LOCKING
|
IH
LOCKPLATE, main drive gear hub cap screw
|
| 37. |
667604R1
|
[1] |
CAP
|
IH
main drive bevel gear
|
| 38. |
200525C1
|
[1] |
WASHER
|
IH
plunger crankshaft thrust
|
| . . |
229057R1
|
[2] |
|
P
SCREW, 3/8-24 x 1 hex-hd cap
|
| 39. |
13363D
|
[1] |
TAPERED BEARING
|
IH
BEARING, main drive gear cup Superseded by part number: 510892
|
| 40. |
971528R91
|
[1] |
BEARING
|
IH
ASSY, main drive gear cone Superseded by part number: 86577085
|
| 41. |
201580C1
|
[1] |
PLATE
|
IH
TAB, bolt holder
|
| . . |
181364
|
[2] |
BOLT,Hex, 3/8" - 24 x 1", Gr 5
|
IH
SCREW, 3/8-24 x 1 hex-hd cap Superseded by part number: 88374
|
