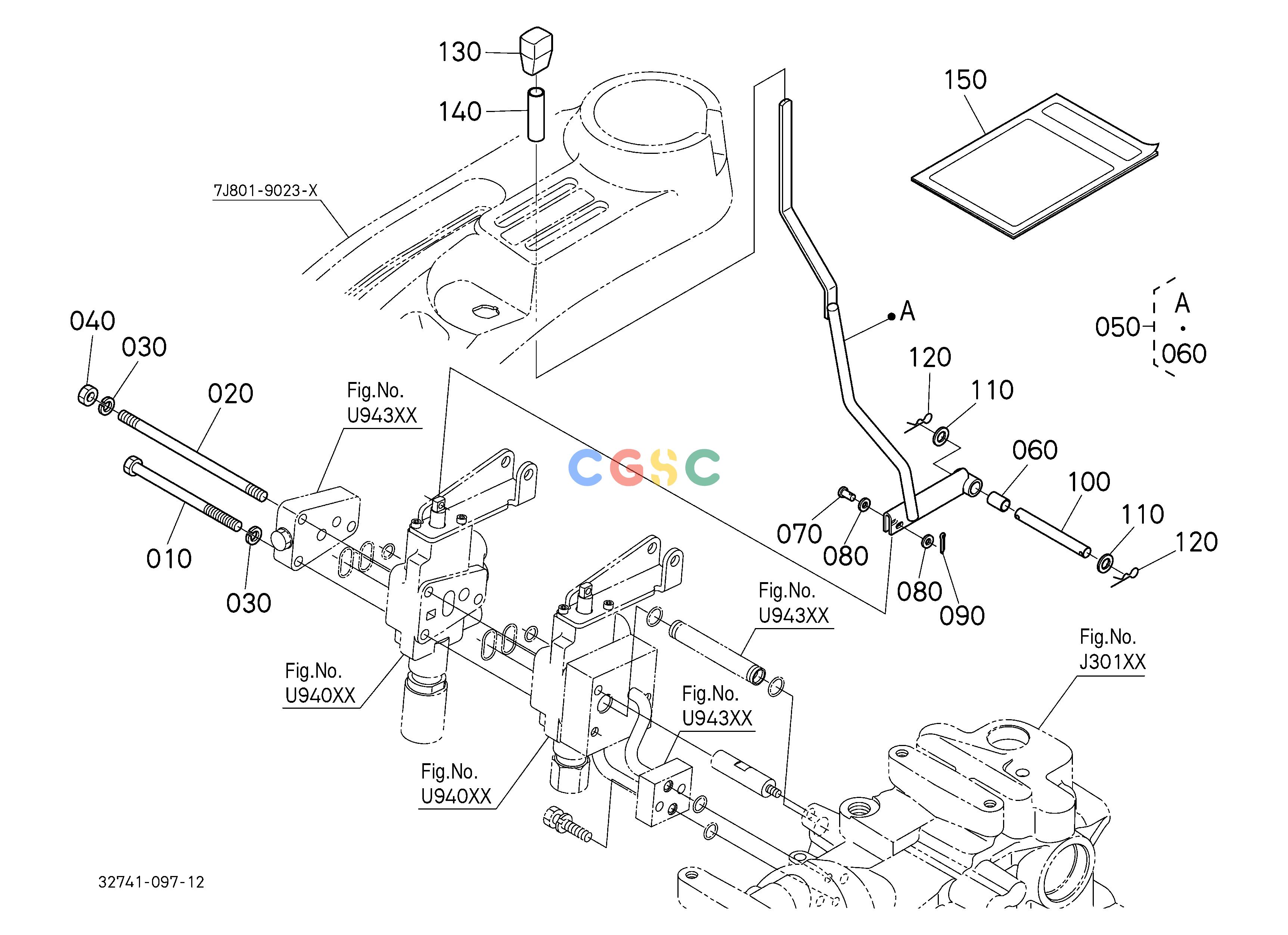

久保田零件查询U94302 AUXILIARY CONTROL VALVE LEVER (2ND) (W/G No.B8030) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
903 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
0115350802
|
[2] |
HEX.BOLT
|
0.0880(lbs); 0.040
|
| 020. |
6C20093142
|
[1] |
BOLT
|
0.1100(lbs); 0.050
|
| 030. |
0451250080
|
[3] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
| 040. |
0215650080
|
[1] |
HEX.NUT
|
0.0088(lbs); 0.004
|
| 050. |
3274193212
|
[1] |
ASSY LEVER,AUX.CON.
|
0.8360(lbs); 0.380
|
| 060. |
0851101020
|
[1] |
BUSH
|
0.0110(lbs); 0.005
|
| 070. |
6802132790
|
[1] |
PIN
|
0.0088(lbs); 0.004
|
| 080. |
0401250050
|
[2] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 090. |
0551151210
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 100. |
TD17096370
|
[1] |
PIN,FULCRUM
|
0.1100(lbs); 0.050
|
| 110. |
0401150100
|
[2] |
WASHER,PLAIN
|
0.0044(lbs); 0.002
|
| 120. |
0551551000
|
[2] |
PIN,SNAP
|
0.0044(lbs); 0.002
|
| 130. |
TD06096260
|
[1] |
GRIP,AUX.CONTR.LEVER
|
0.0286(lbs); 0.013
|
| 140. |
3274193190
|
[1] |
TUBE,LEVER
|
0.0022(lbs); 0.001
|
| 150. |
---- |
[1] |
MANUAL,ASSEMBLY
|
0.0000(lbs); 0.000
|
