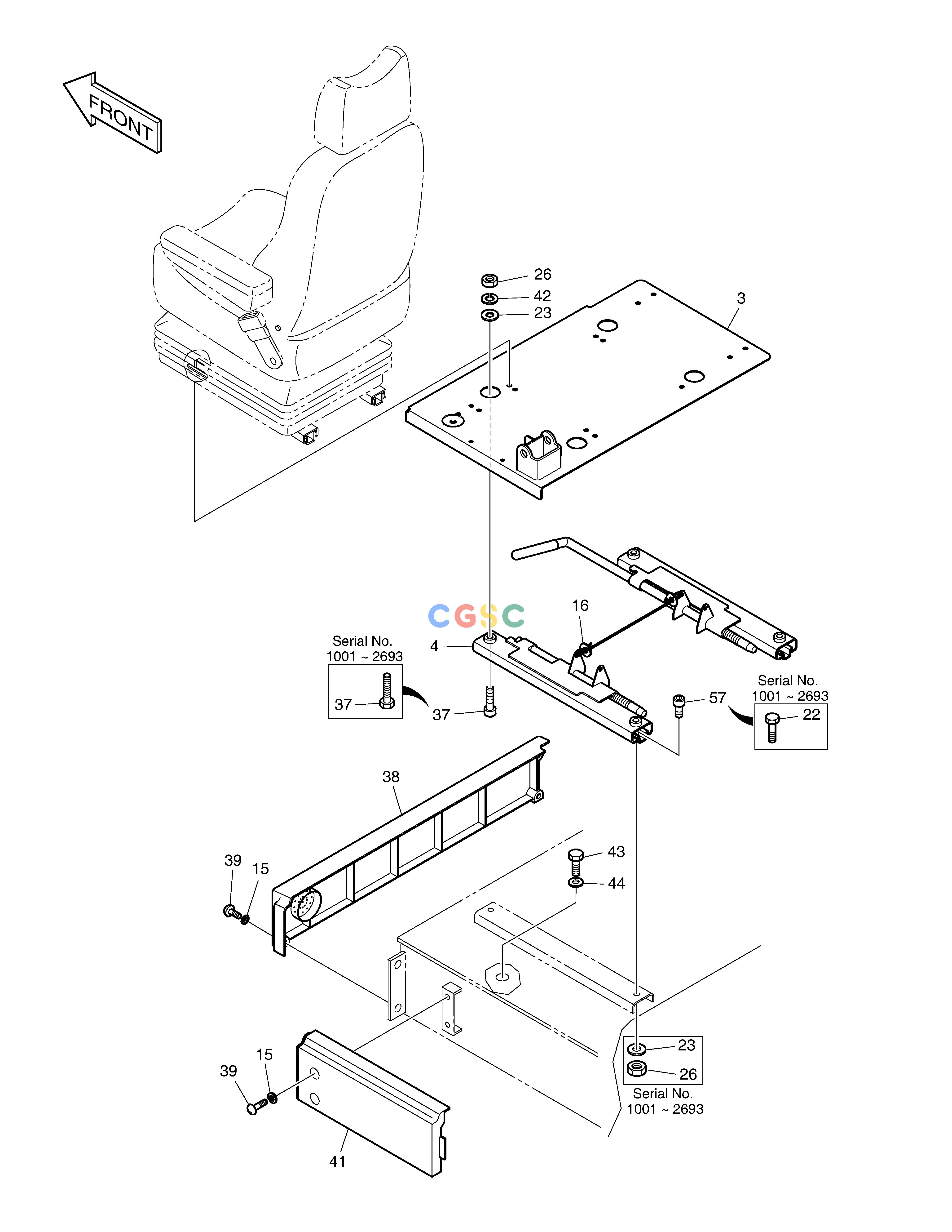

斗山零件查询SEAT & ELECTRIC BOX COVER SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
195-02288G
|
[-] |
STAND ASS'Y
|
|
| -. |
220111-00062
|
[-] |
|
|
| 15. |
2114-1898D3
|
[6] |
WASHER
|
|
| 16. |
2114-1898D4
|
[2] |
WASHER
|
|
| 22. |
2120-2166D5
|
[4] |
BOLT
|
|
| 23. |
2114-1898D2
|
[8] |
WASHER
|
|
| 23. |
2114-1898D2
|
[4] |
WASHER
|
|
| 26. |
2121-1311D2
|
[8] |
NUT
|
|
| 26. |
2121-1311D2
|
[4] |
NUT
|
|
| 3. |
901-00024E
|
[1] |
PLATE;SEAT
|
|
| 3. |
250110-00071
|
[1] |
PLATE ASSY,SEAT
|
|
| 37. |
2120-2166D46
|
[4] |
BOLT M8X1.25X25
|
|
| 37. |
S2209266
|
[4] |
BOLT
|
|
| 38. |
621-01824
|
[1] |
COVER;ELEC. BOX(FRONT)
|
|
| 39. |
2120-2166D7
|
[6] |
SCREW
|
|
| 4. |
194-00024
|
[1] |
RAIL;SEAT
|
|
| 41. |
621-01825
|
[1] |
COVER;ELEC. BOX(L.H)
|
|
| 42. |
2114-2031D4
|
[4] |
WASHER
|
|
| 43. |
S0514853
|
[4] |
BOLT
|
|
| 44. |
2114-1058D46
|
[4] |
WASHER
|
|
| 57. |
S2208766
|
[4] |
BOLT;SOCKET
|
|
