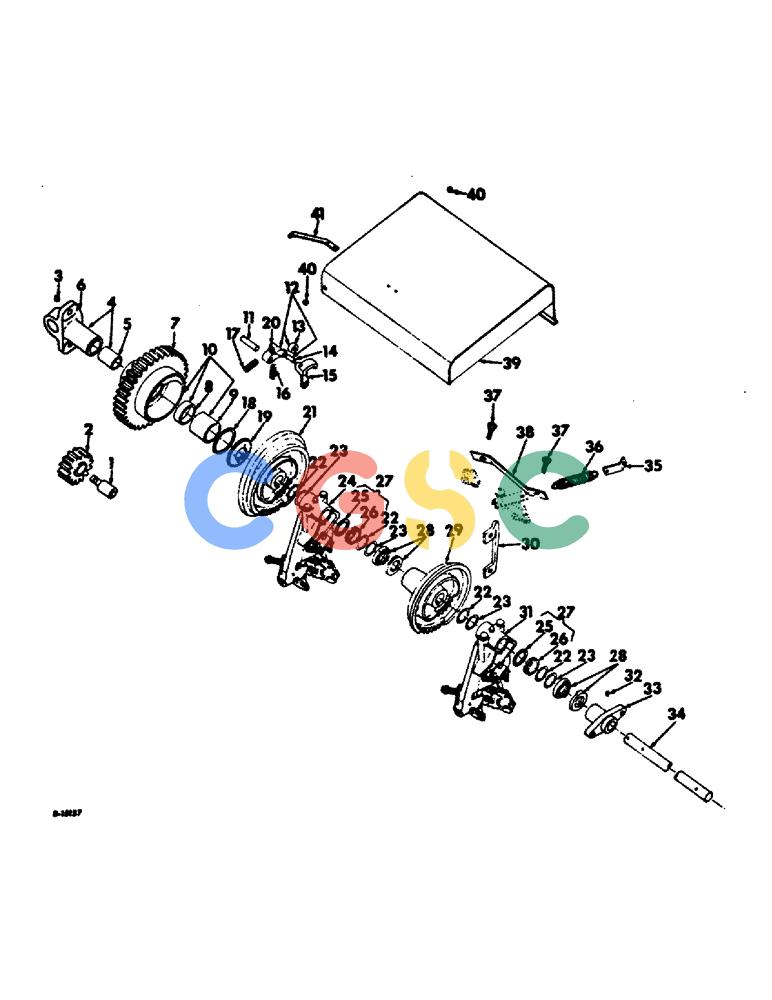

| 1. |
674464R91
|
[1] |
BEARING ASSY,0.6267" ID x 1.1811" OD x 1.531"
|
IH
ASSY, auger drive
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
23685R1
|
[1] |
SET SCREW,Hex Soc, 3/8"-16 x 1 3/4"
|
IH
Superseded by part number: 483-13828
|
| 2. |
674104R1
|
[1] |
GEAR
|
IH
PINION, auger drive idler
|
| 3. |
16964R91
|
[1] |
FITTING
|
IH
1/4-28 90 angle lub. Superseded by part number: 87414
|
| 4. |
669643R11
|
[1] |
PIVOT
|
IH
SUPPORT, w/bushing knotter and gear insert Superseded by part number: 3101331R91
|
| . . |
180177
|
[2] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
SCREW, 1/2 x 1-1/2 hex hd cap Superseded by part number: 113-410
|
| . . |
120384
|
[2] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| 5. |
667824R1
|
[1] |
BUSHING
|
IH
knotter shaft
|
| 8. |
667826R1
|
[1] |
BUSHING
|
IH
knotter drive gear R.H.
|
| 9. |
669644R1
|
[1] |
BUSHING
|
IH
knotter drive gear L.H.
|
| 10. |
674103R11
|
[1] |
GEAR
|
IH
ASSY, knotter drive
|
| 11. |
664947R1
|
[1] |
PIVOT
|
IH
trip dog
|
| . . |
21755R1
|
[1] |
WASHER
|
IH
15/32 x 13/16 x 18 ga C-Z (or as required)
|
| . . |
21756R1
|
[1] |
WASHER
|
IH
15/32 x 3/4 x 22 ga. (or as required) Superseded by part number: 86624145
|
| 12. |
655712R11
|
[1] |
PAWL
|
IH
DOG, w/roller and stud trip
|
| 13. |
V341
|
[1] |
PAWL
|
IH
ROLLER, trip dog
|
| 14. |
V690
|
[1] |
PIN
|
IH
STUD, trip dog roller
|
| 15. |
662048R2
|
[1] |
PAWL
|
IH
DOG, auxiliary trip
|
| 16. |
R1003
|
[1] |
SPRING
|
IH
auxiliary trip dog
|
| 17. |
V680
|
[1] |
SPRING
|
IH
trip dog Superseded by part number: 753027R1
|
| 18. |
202531C1
|
[2] |
WASHER
|
IH
drive gear (or as required)
|
| 19. |
666754R1
|
[1] |
WASHER
|
IH
RETAINER, drive gear
|
| . . |
668787R1
|
[4] |
SCREW,Hex Soc Hd, 1/4"-20 x 1/2"
|
IH
1/4-20 x 1/2 hex. soc. hd
|
| 21. |
667820R4
|
[1] |
CARRIER
|
IH
trip dog
|
| . . |
Q3728
|
[1] |
KEY,Gib, 3/8" Sq x 2 1/8" Tap
|
IH
3/8 x 2-1/8 sq. tapered
|
| . . |
21747R1
|
[2] |
WASHER,1.22" ID x 2" OD x 0.07" Thk
|
IH
1-7/32 x 2 x 16 ga C-Z
|
| . . |
21812R1
|
[1] |
WASHER
|
IH
1-7/32 x 2 x 22 ga C-Z
|
| . . |
443057
|
[1] |
GROOVED PIN,3/8" x 2 1/4", Type F
|
IH
Pin, Grooved, 3/8" x 2 1/4", Type F Superseded by part number: 435-61236
|
| 22. |
316171C1
|
[8] |
SHIM
|
IH
knotter to cam (or as required)
|
| 23. |
667588R1
|
[16] |
DISC
|
IH
SHIM, knotter to cam (or as required)
|
| 24. |
201646C95
|
[1] |
KNOTTER
|
IH
ASSY RH, for components see list of parts under details of knotter
|
| 25. |
125806H1
|
[2] |
SNAP RING,#175, Ext
|
IH
RING, SNAP, #175, Ext
|
| 27. |
202511C91
|
[2] |
PAN
|
IH
RING ASSY, knotter spacer (or as required)
|
| 28. |
667813R1
|
[4] |
COLLAR CLAMP
|
IH
COLLAR, knotter shaft adj
|
| . . |
443100
|
[4] |
STUD
|
IH
no. 12 x 1/2 rd hd grooved
|
| . . |
137258
|
[1] |
COTTER PIN
|
IH
3/16" x 1 3/4" Superseded by part number: 432-1228
|
| . . |
607894R1
|
[1] |
WASHER
|
IH
1-7/32 x 1-3/4 x 22 ga. C-Z (or as required)
|
| . . |
607890R1
|
[2] |
WASHER
|
IH
1-7/32 x 1-3/4 x 16 ga. C-Z (or as required)
|
| 29. |
202108C1
|
[1] |
CAM
|
IH
knotter left
|
| . . |
Q22
|
[1] |
KEY
|
IH
3/8 x 1/4 x 2-1/4 str.
|
| . . |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
180190
|
[1] |
LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5
|
IH
SCREW, 1/2-13 x 3 hex. hd. cap Superseded by part number: 179893
|
| 30. |
201649C1
|
[1] |
CAM
|
IH
twine knife driving
|
| . . |
24695R1
|
[2] |
SCREW
|
IH
w/csk ext. tooth lock washer 3/8-16 x 1 znd slt-r-hd mach
|
| . . |
22825R1
|
[2] |
WASHER
|
IH
15/32 x 1-1/4 x 7 ga Superseded by part number: 495-81012
|
| 31. |
201608C95
|
[1] |
KNOTTER
|
IH
ASSY, LH, for components see list of parts under details of knotter
|
| 32. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4-28 str self tap. lub.
|
| 33. |
667818R1
|
[1] |
FLANGE
|
IH
BEARING, knotter shaft left
|
| . . |
18495R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 hex. hd. mach Superseded by part number: 180124
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 34. |
667812R1
|
[1] |
SHAFT
|
IH
knotter
|
| 35. |
201652C2
|
[1] |
ANCHOR
|
IH
knife spring
|
| . . |
469668R1
|
[1] |
WASHER
|
IH
13/32 x 3/4 x 16 ga C-Z Superseded by part number: 86632580
|
| 36. |
202656C1
|
[1] |
SPRING
|
IH
knife return
|
| 37. |
441485R1
|
[2] |
BOLT,Shoulder, Hex, 3/8" - 16 x 1 1/2"
|
IH
shoulder
|
| . . |
446363
|
[2] |
WASHER,5/16"
|
IH
.375 x .875 x .083 znd Superseded by part number: 80664
|
| . . |
607895R1
|
[2] |
WASHER
|
IH
17/32 x 1 x 11 ga Superseded by part number: 86624146
|
| 38. |
201650C1
|
[1] |
BAR
|
IH
LINK, knife connecting
|
| 39. |
667784R92
|
[1] |
COVER
|
IH
ASSY, knotter
|
| 40. |
11309N
|
[2] |
SPACER
|
IH
knotter cover
|
| . . |
19570R1
|
[2] |
BOLT,Hex, 1/4" - 20 x 5/8", Gr 2
|
IH
1/4 x 5/8 znd hex-hd mach Superseded by part number: 280641
|
| . . |
492-11025
|
[2] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| . . |
120392
|
[2] |
WASHER,1/4", SAE
|
IH
9/32 x 5/8 x 16 ga C-Z Superseded by part number: 87361
|
| 41. |
667787R1
|
[1] |
SPRING
|
IH
knotter coverf
|
| . . |
110638
|
[2] |
RIVET
|
IH
3/16 x 5/16 B-hd solid
|
| . . |
18796R1
|
[1] |
BOLT,Hex, 7/16"-14 x 1 1/2", G2
|
IH
7/16 x 1-1/2 hex hd mach. Superseded by part number: 179862
|
| . . |
120383
|
[1] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
21760R1
|
[1] |
WASHER,0.47" ID x 0.88" OD x 0.19" Thk
|
IH
15/32 x 7/8 x 7 ga., used w/knotter L.H. and R.H.
|
