斗山零件查询UNDER COVER SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
548 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

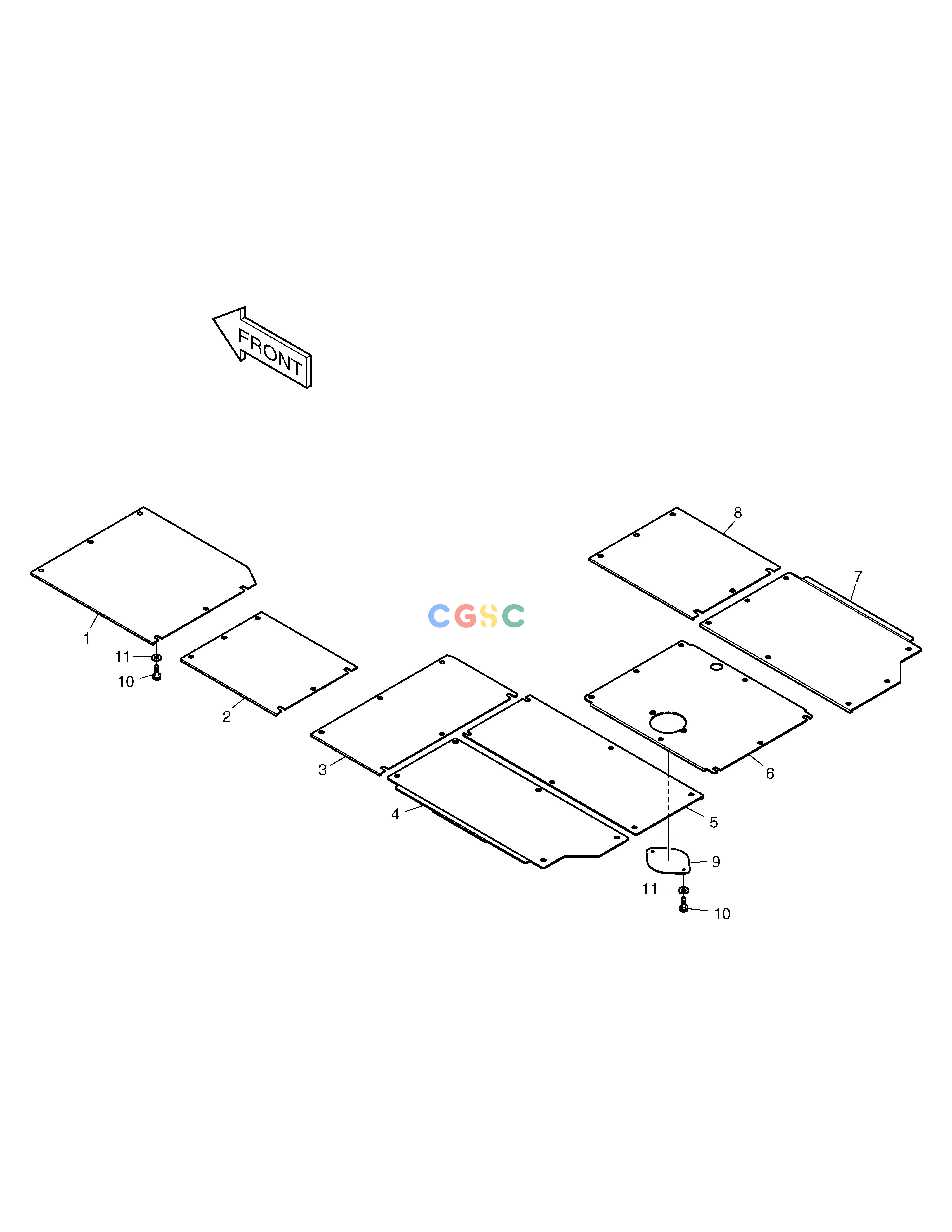

2627-1781A
|
[-] |
UNDER COVER ASS'Y
|
|
| 1. |
621-00269
|
[1] |
COVER PL 1.6
|
|
| 10. |
2120-2196D13
|
[52] |
BOLT;SET M10X1.5X25
|
|
| 11. |
2114-1058D10
|
[52] |
WASHER
|
|
| 2. |
621-00270
|
[1] |
COVER PL 1.6
|
|
| 3. |
2627-1784A
|
[1] |
COVER PL 1.6
|
|
| 4. |
2627-1785A
|
[1] |
COVER PL 2.3
|
|
| 5. |
2627-1786A
|
[1] |
COVER PL 2.3
|
|
| 6. |
2627-1787
|
[1] |
COVER PL 2.3
|
|
| 7. |
2627-1788A
|
[1] |
COVER PL 2.3
|
|
| 8. |
621-00248A
|
[1] |
COVER PL 1.6
|
|
| 9. |
2621-3036
|
[1] |
COVER
|
|
