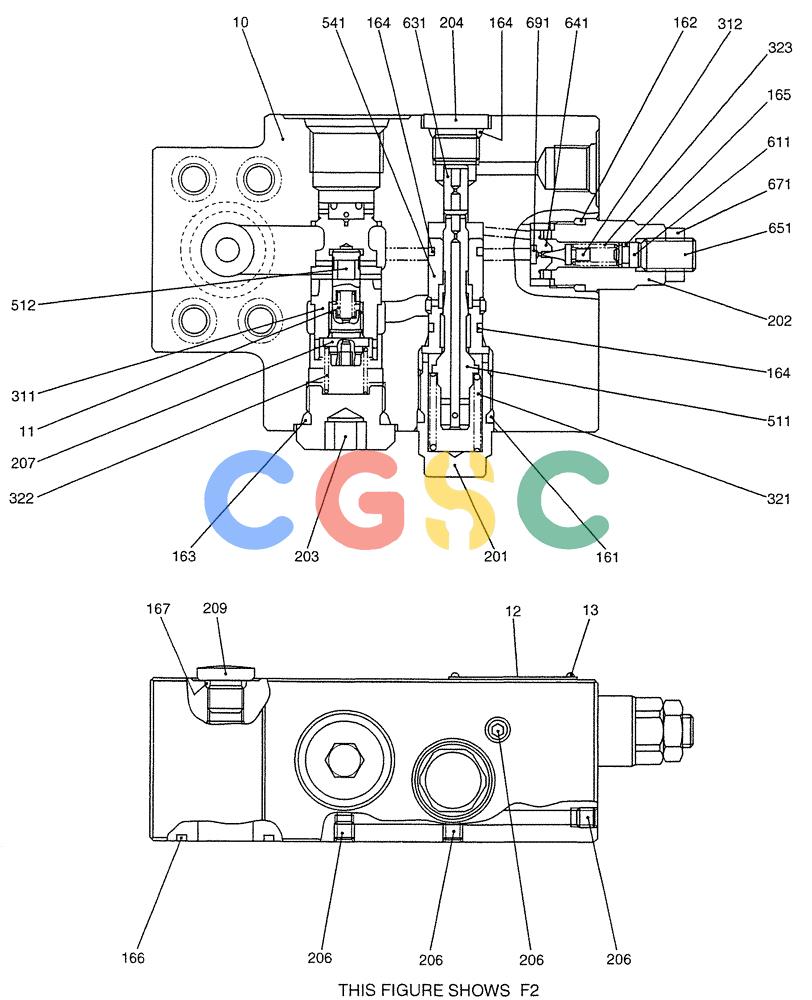

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (07-014[02]) - VALVE ASSY, HOLDING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
401 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB28V00003F1 | [1] | VALVE | KOBASSY,HOLD ING |
| . . | YB28V00003F2 | [1] | HYDRAULIC VALVE | KOBASSY,HOLD ING |
| 10. | NSS | [1] | NOT SERVICED SEPARATELY | CONBODY, FOR F2 ONLY |
| 161. | ZD12P02290 | [1] | O-RING | KOB |
| 162. | ZD12P02200 | [2] | O-RING | KOBFOR F1 ONLY |
| 163. | ZD12P02400 | [1] | O-RING | KOB |
| 164. | ZD12P01600 | [3] | O-RING | KOB |
| 165. | ZD12P00600 | [1] | O-RING | KOB |
| 166. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB |
| 167. | ZD12P01100 | [1] | O-RING | KOB |
| 201. | YM28V00001S201 | [1] | PLUG | KOB |
| 202. | 2436R683S201 | [1] | PLUG | KOB |
| 203. | YN30V00001S556 | [1] | PLUG | KOB |
| 204. | 2436U1832S651 | [1] | PLUG | KOB |
| 205. | YM28V00001S205 | [1] | PLUG | KOBFOR F1 ONLY |
| 206. | 2441U722S490 | [4] | PLUG | KOB |
| 209. | YW30V00001S157 | [1] | PLUG | KOB |
| 312. | 2436R682S401 | [1] | POPPET | KOB |
| 321. | YM28V00001S321 | [1] | SPRING | KOB |
| 322. | YM28V00001S322 | [1] | SPRING | KOB |
| 323. | 2436R683S1 | [1] | SPRING | KOB |
| 611. | 2436R682S521 | [1] | SEAT | KOBSPRING |
| 631. | YM28V00001S631 | [1] | PISTON | KOB |
| 651. | 2436R683S651 | [1] | SET SCREW | KOBSET |
| 671. | ZN18C12007 | [1] | NUT | KOB |
| . . | LC28V00003R100 | [1] | REPAIR KIT | KOBCONSIST OF Ref. 164(2), 511(1), 541(1) |
| . . | YN28V00008R100 | [1] | REPAIR KIT | KOBCONSIST OF Ref. 162(1), 165(1), 202(1), 312(1), 323(1), 611(1), 641(1), 651(1), 671(1), 691(1) |
| . . | YB28V00003R100 | [1] | REPAIR KIT | KOBCONSIST OF Ref. 11(1), 207(1), 311(1), 512(1), FOR F2 ONLY |
| . . | YB28V00003R200 | [1] | REPAIR KIT CONSIST OF Ref. 207(1), 311(1), 324(1), 512(1), FOR F1 ONLY | |
