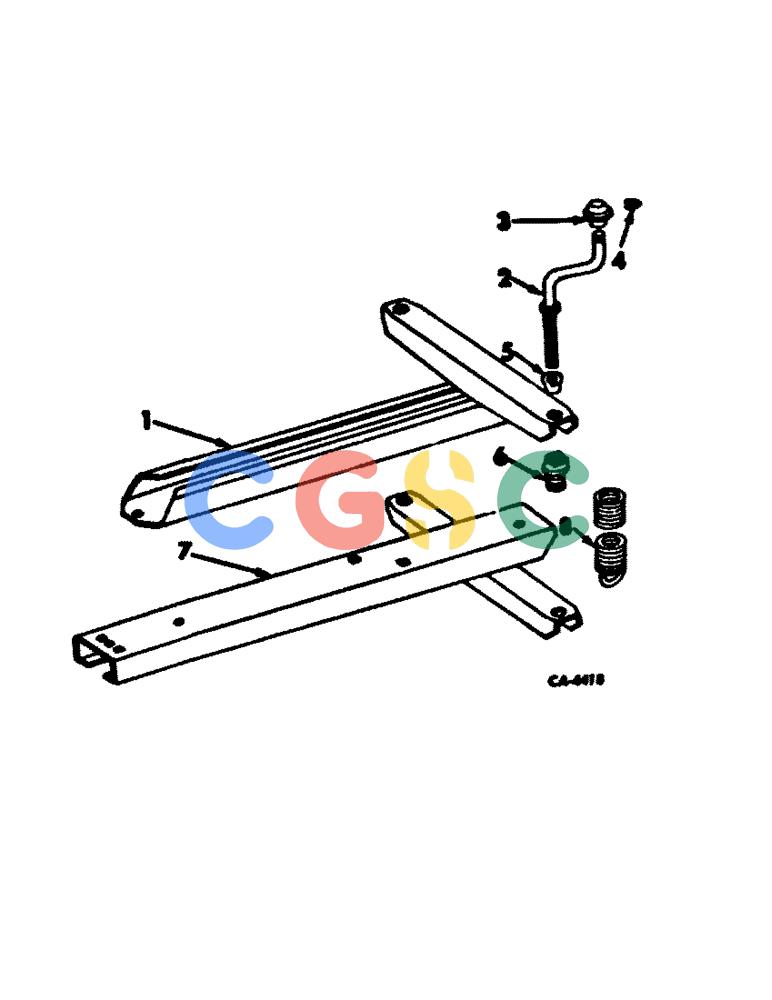

凯斯零件查询(445) - INTERNATIONAL HARVESTER RECTANGULAR BALER (NORTH AMERICA) (1/76-12/88) (A-46A[A]) - MANUAL BALE TENSION DEVICE 435 AND 445 BALERS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
757 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
674373R1
|
[1] |
CHANNEL
|
IH
ASSY, upper tension
|
| 2. |
200673C1
|
[2] |
CRANK
|
IH
SCREW ASSY, tension adjusting
|
| . . |
589068R1
|
[2] |
WASHER
|
IH
21/32 x 1-1/4 x 11 ga C-Z Superseded by part number: 495-51066
|
| 3. |
201397C1
|
[2] |
KNOB
|
IH
ASSY, bale tension
|
| 4. |
321935C1
|
[2] |
SNAP RING,#62, Ext
|
IH
RING, .553 crescent ext ret Superseded by part number: 129345
|
| 5. |
656934R1
|
[2] |
BUSHING
|
IH
PILOT, tension adj screw
|
| 6. |
662028R1
|
[2] |
PLUG
|
IH
spring
|
| 7. |
201696C1
|
[1] |
CHANNEL
|
IH
ASSY, lower tension
|
| 8. |
203186C1
|
[2] |
SPRING
|
IH
tension channel
|
