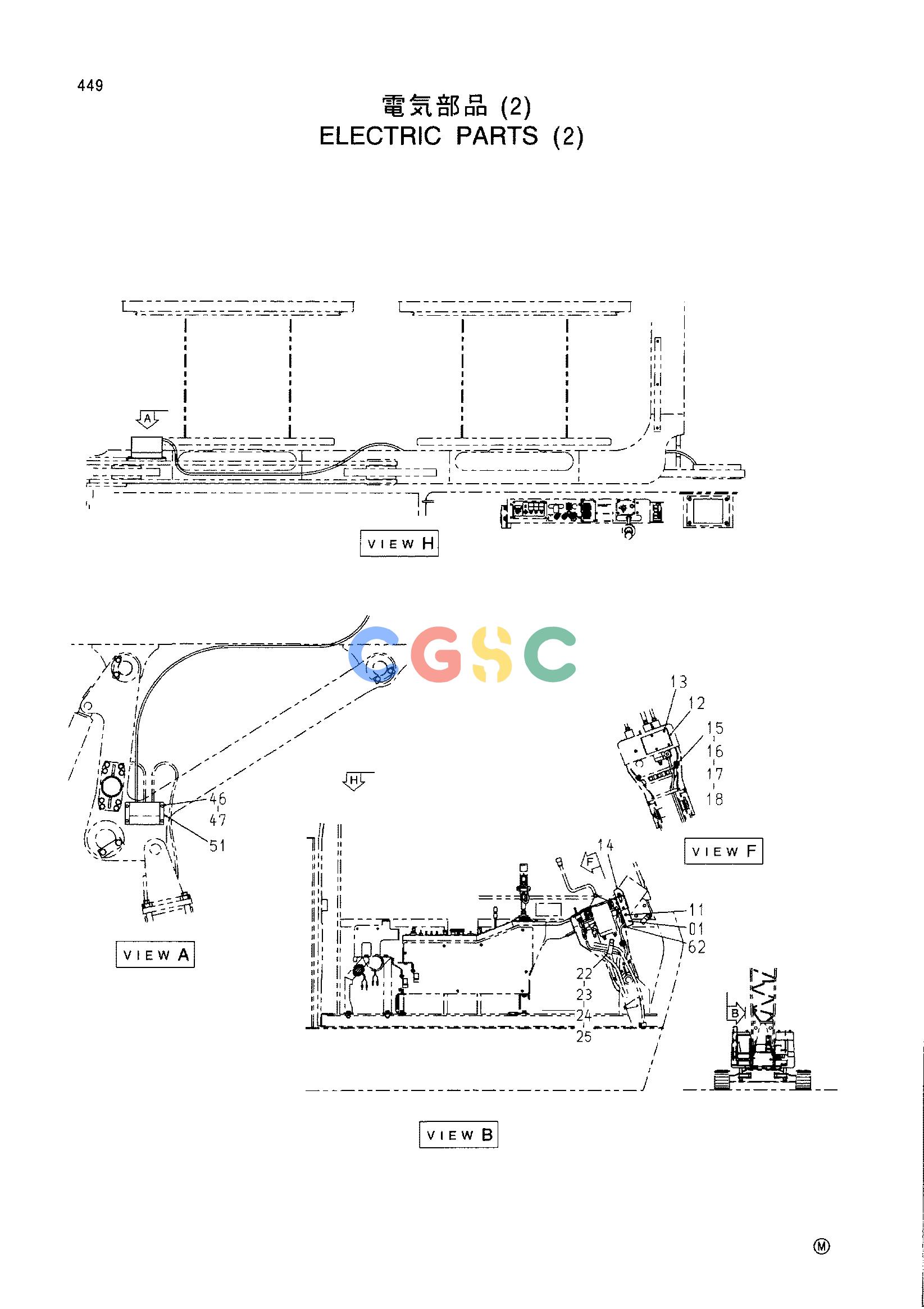

日立零件查询（CX1000）ELECTRIC PARTS (2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
828 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 8069316 | [1] | LAMP | |
| 11. | J650510 | [6] | SCREW | |
| 12. | 4386774 | [1] | BRACKET | |
| 13. | J450614 | [4] | SCREW;SEMS | |
| 14. | 3072735 | [1] | COVER | |
| 15. | 4190261 | [1] | CLIP | |
| 16. | J901020 | [1] | BOLT | |
| 17. | J950010 | [1] | NUT | |
| 18. | A590910 | [1] | WASHER;SPRING | |
| 22. | 4259817 | [1] | CLIP | |
| 23. | J901020 | [1] | BOLT | |
| 24. | A590910 | [1] | WASHER;SPRING | |
| 25. | J950010 | [1] | NUT | |
| 46. | J900812 | [4] | BOLT | |
| 47. | A590908 | [4] | WASHER;SPRING | |
| 51. | 4388748 | [1] | BOX;TERMINAL | |
| 62. | 4207698 | [1] | BUSHING;RUBBER | |
