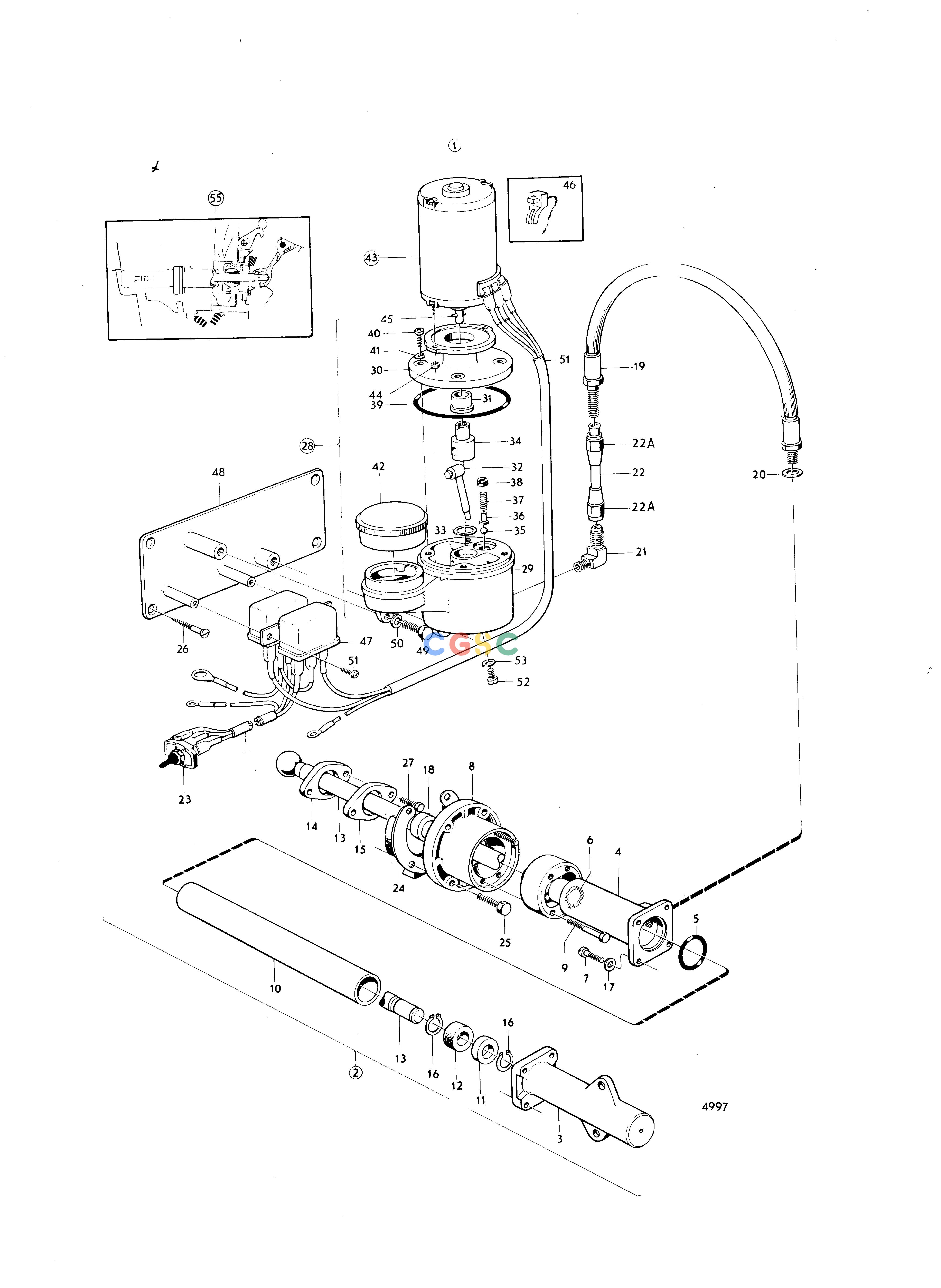

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BMiscellaneous EquipmentHydraulic Lift Device AQ Drive Unit 100, 100BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
508 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
814056
|
[1] |
Hydraulic lift
|
|
| 2. |
809920
|
[1] |
Tube
|
|
| 3. |
809921
|
[1] |
Pipe
|
|
| 4. |
809956
|
[1] |
Tube
|
|
| 5. |
925063
|
[1] |
O-ring
|
|
| 6. |
955977
|
[1] |
O-ring
|
|
| 7. |
956554
|
[4] |
Screw
|
|
| 8. |
809902
|
[1] |
Ball socket
|
|
| 9. |
940170
|
[4] |
Hexagon screw
|
|
| 10. |
809923
|
[1] |
Hydraulic cylinder
|
|
| 11. |
809929
|
[1] |
Guide
|
|
| 12. |
809930
|
[1] |
Rubber collar
|
|
| 13. |
809924
|
[1] |
Steering rod
|
|
| 14. |
813978
|
[1] |
Ball socket
|
|
| 15. |
813977
|
[1] |
Protecting plate
|
|
| 16. |
914450
|
[2] |
Snap ring
|
|
| 17. |
940155
|
[4] |
Toothed washer
|
|
| 18. |
809993
|
[1] |
Sealing ring
|
|
| 19. |
230107
|
[1] |
Hose assembly
|
|
| 20. |
18666
|
[1] |
Gasket
|
|
| 21. |
954343
|
[1] |
Elbow nipple
|
|
| 22. |
|
|
|
Replaced by 954315 + 954322., Early type
|
| 22. |
954315
|
[1] |
Tube
|
Late type L=157mm
|
| 22A. |
954322
|
[2] |
Fitting nut
|
Late type
|
| 23. |
814322
|
[1] |
Toggle switch
|
|
| 24. |
813958
|
[1] |
Rubber cushion
|
|
| 25. |
940171
|
[4] |
Hexagon screw
|
|
| 26. |
940278
|
[4] |
Screw
|
|
| 27. |
940178
|
[2] |
Cross recessed screw
|
|
| 28. |
809915
|
[1] |
Hydraulic pump
|
|
| 29. |
|
|
|
|
| 30. |
809919
|
[1] |
Cover
|
|
| 31. |
809938
|
[1] |
Bushing
|
|
| 32. |
|
|
|
|
| 33. |
25930
|
[2] |
Shim
|
|
| 33. |
120155
|
[2] |
Spacer
|
|
| 34. |
809951
|
[1] |
Companion flange
|
|
| 35. |
26694
|
[1] |
Ball
|
|
| 36. |
809952
|
[1] |
Valve piston
|
|
| 37. |
809946
|
[1] |
Valve spring
|
|
| 38. |
809947
|
[1] |
Plug
|
|
| 39. |
925257
|
[1] |
O-ring
|
|
| 40. |
950021
|
[4] |
Cross recessed screw
|
|
| 41. |
941905
|
[4] |
Spring washer
|
|
| 42. |
662463
|
[1] |
Cover
|
|
| 43. |
897720
|
[1] |
Electric motor
|
|
| 44. |
814456
|
[4] |
Nut
|
|
| 45. |
944596
|
[1] |
Pin
|
|
| 46. |
839275
|
[1] |
Brush set
|
|
| 46. |
875356
|
[1] |
Repair kit
|
|
| 47. |
870670
|
[2] |
Relay
|
|
| 48. |
813901
|
[1] |
Bracket
|
|
| 49. |
955524
|
[2] |
Hexagon screw
|
|
| 50. |
941907
|
[2] |
Spring washer
|
|
| 51. |
950002
|
[2] |
Screw
|
|
| 52. |
950045
|
[1] |
Cross recessed screw
|
|
| 53. |
61954
|
[1] |
Gasket
|
|
| 54. |
|
|
|
|
| 55. |
875257
|
[1] |
Mounting kit, mounting kit steering tube
|
|
| 55. |
|
|
|
|
| 56. |
|
|
|
|
| 57. |
|
|
|
|
