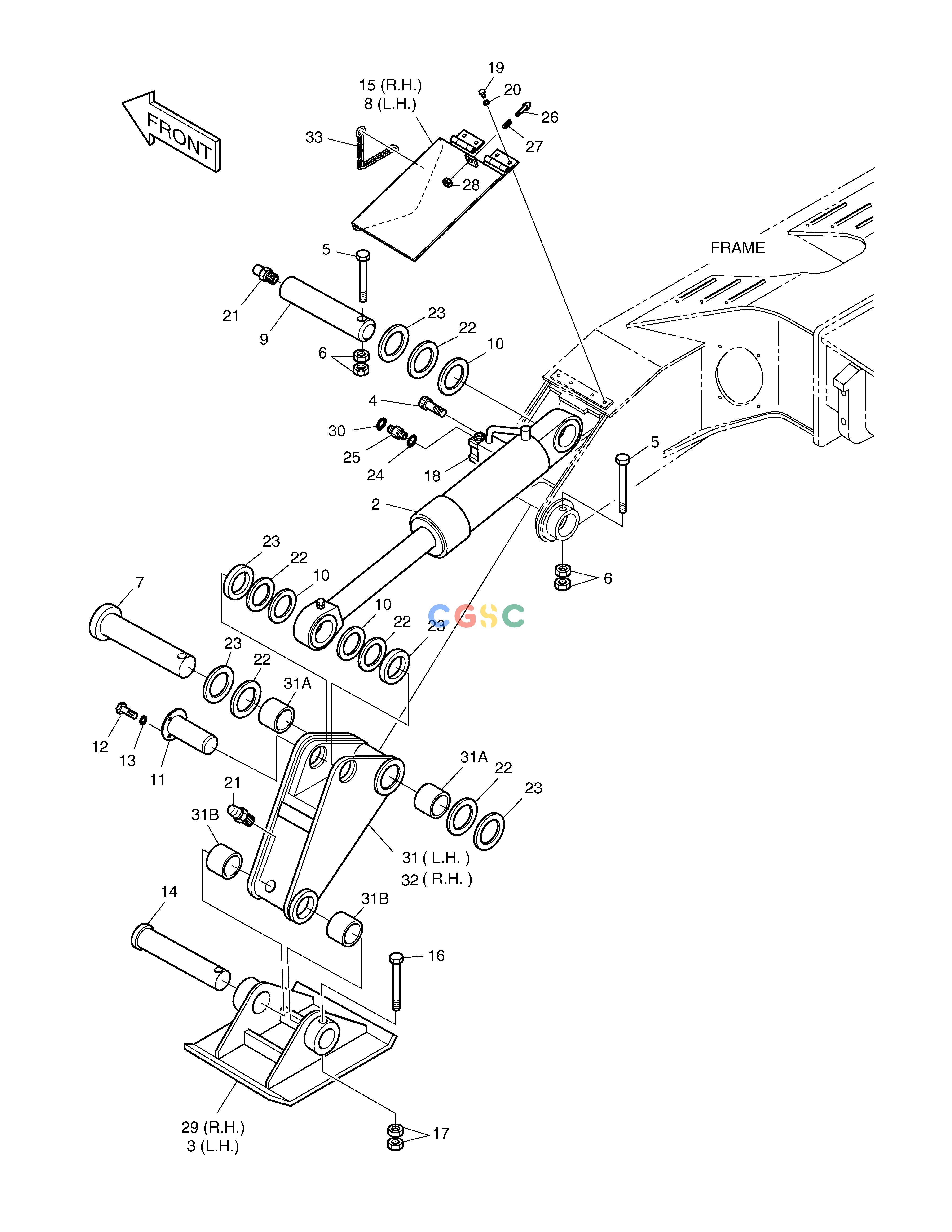

斗山零件查询OUTRIGGER SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
156 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2626-1074B
|
[-] |
OUTRIGGER ASS'Y
|
|
| -. |
101554-00019
|
[-] |
|
|
| 10. |
2180-9055
|
[8] |
SEAL;DUST
|
|
| 11. |
2123-1470B
|
[2] |
PIN
|
120501-01018
|
| 11. |
120501-01018
|
[2] |
|
|
| 12. |
S0515253
|
[6] |
. BOLT
|
|
| 13. |
S5102703
|
[6] |
WASHER
|
|
| 14. |
2123-2345B
|
[2] |
PIN
|
120501-01019
|
| 14. |
120501-01019
|
[2] |
|
|
| 15. |
621-02157
|
[1] |
COVER(R.H.)
|
|
| 16. |
S0566666
|
[2] |
BOLT
|
|
| 17. |
S4012933
|
[4] |
NUT
|
|
| 18. |
2426-9023B
|
[2] |
VALVE;PILOT CHECK
|
|
| 19. |
S0511553
|
[8] |
BOLT M10X1.5X14
|
|
| 2. |
2440-9275
|
[2] |
CYLINDER;OUTRIGGER
|
|
| 20. |
S5102603
|
[8] |
. WASHER
|
|
| 21. |
S6710041
|
[6] |
NIPPLE,GREASE
|
|
| 22. |
2114-1059D214
|
[8] |
SHIM
|
|
| 23. |
2114-1059D21
|
[8] |
SHIM
|
|
| 24. |
S8000181
|
[4] |
O-RING
|
|
| 25. |
2181-4133D3
|
[4] |
ADAPTER
|
|
| 26. |
161-00465
|
[2] |
STOPPER
|
|
| 27. |
129-00145
|
[2] |
SPRING;COIL
|
|
| 28. |
S4012733
|
[2] |
NUT
|
|
| 29. |
2197-2601B
|
[1] |
FOOT;STABILIZER(R.H.)
|
|
| 3. |
2197-2572B
|
[1] |
FOOT;STABILIZER(L.H.)
|
|
| 30. |
S8030081
|
[4] |
O-RING
|
|
| 31. |
K1018583
|
[1] |
LEG;OUTRIGGER(L.H)
|
|
| 31A. |
110-00262
|
[2] |
BUSH
|
|
| 31B. |
110-00263
|
[2] |
BUSH
|
|
| 32. |
K1018584
|
[1] |
LEG;OUTRIGGER(R.H)
|
|
| 32A. |
110-00262
|
[2] |
BUSH
|
|
| 32B. |
110-00263
|
[2] |
BUSH
|
|
| 33. |
K1014452A
|
[2] |
CHAIN
|
|
| 4. |
S2212966
|
[8] |
BOLT;SOCKET M10X1.5X65
|
|
| 5. |
S0571666
|
[4] |
BOLT M20X2.5X150
|
|
| 6. |
S4013133
|
[8] |
NUT
|
|
| 7. |
2123-1468B
|
[2] |
PIN
|
120501-01016
|
| 7. |
120501-01016
|
[2] |
|
|
| 8. |
621-02156
|
[1] |
COVER(L.H.)
|
|
| 9. |
2123-1469
|
[2] |
PIN
|
120501-01017
|
| 9. |
120501-01017
|
[2] |
|
|
