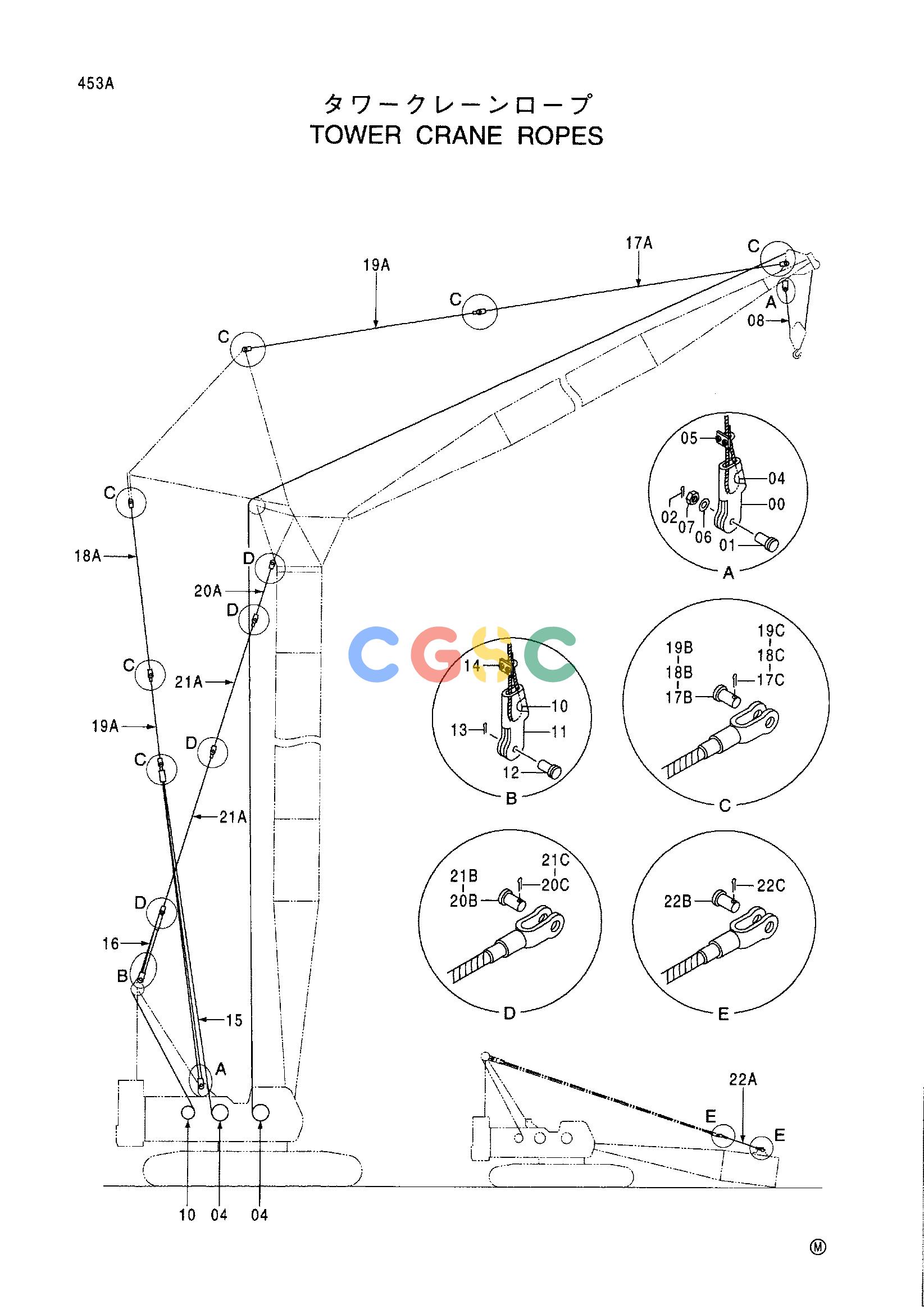

日立零件查询（CX1000）TOWER CRANE ROPES Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
793 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 2011693 | [2] | SOCKET;ROPE | |
| 01. | 4387083 | [2] | PIN | |
| 02. | A766063 | [2] | PIN;SPLIT | |
| 04. | 4097430 | [4] | WEDGE | |
| 05. | 94-2909 | [2] | CLIP;WIRE | |
| 06. | 4114408 | [2] | WASHER | |
| 07. | 4137247 | [2] | NUT;CASTLE | |
| 08. | 4370381 | [1] | ROPE;WIRE 290M | |
| 10. | 43125 | [2] | WEDGE | |
| 11. | 34217 | [1] | SOCKET;ROPE | |
| 12. | 4368906 | [1] | PIN | |
| 13. | A768063 | [1] | PIN;SPLIT | |
| 14. | 94-2907 | [1] | CLIP;ROPE | |
| 15. | 4240876 | [1] | ROPE;WIRE 240M | |
| 16. | 4370399 | [1] | ROPE;WIRE 205M | |
| 17A-. | 9162464 | [2] | ROPE;PENDANT 13.75M | |
| 17A. | 8069634 | [1] | ROPE;PENDANT | |
| 17B. | 4062839 | [1] | PIN | |
| 17C. | A761000 | [1] | PIN;SPLIT | |
| 18A-. | 9088240 | [2] | ROPE;PENDANT 12.5M | |
| 18A. | 8045405 | [1] | ROPE;PENDANT | |
| 18B. | 4062839 | [2] | PIN | |
| 18C. | A761000 | [2] | PIN;SPLIT | |
| 19A-. | 9053896 | [8] | ROPE;PENDANT 3M | |
| 19A. | 8024699 | [1] | ROPE;PENDANT | |
| 19B. | 4062839 | [1] | PIN | |
| 19C. | A761000 | [1] | PIN;SPLIT | |
| 19A-. | 9053897 | [4] | ROPE;PENDANT 6M | |
| 19A. | 8024700 | [1] | ROPE;PENDANT | |
| 19B. | 4062839 | [1] | PIN | |
| 19C. | A761000 | [1] | PIN;SPLIT | |
| 19A-. | 9053898 | [6] | ROPE;PENDANT 9M | |
| 19A. | 8024701 | [1] | ROPE;PENDANT | |
| 19B. | 4062839 | [1] | PIN | |
| 19C. | A761000 | [1] | PIN;SPLIT | |
| 20A-. | 9206558 | [2] | ROPE;PENDANT 2.8M | |
| 20A. | 8085717 | [1] | ROPE;PENDANT | |
| 20B. | 4403399 | [2] | PIN | |
| 20C. | A761090 | [2] | PIN;SPLIT | |
| 21A-. | 9174463 | [4] | ROPE;PENDANT 3M | |
| 21A. | 8073892 | [1] | ROPE;PENDANT | |
| 21B. | 4403399 | [1] | PIN | |
| 21C. | A761090 | [1] | PIN;SPLIT | |
| 21A-. | 9174464 | [4] | ROPE;PENDANT 6M | |
| 21A. | 8073893 | [1] | ROPE;PENDANT | |
| 21B. | 4403399 | [1] | PIN | |
| 21C. | A761090 | [1] | PIN;SPLIT | |
| 21A-. | 9174465 | [4] | ROPE;PENDANT 9M | |
| 21A. | 8073894 | [1] | ROPE;PENDANT | |
| 21B. | 4403399 | [1] | PIN | |
| 21C. | A761090 | [1] | PIN;SPLIT | |
| 22A-. | 9089630 | [2] | ROPE;PENDANT 2.42M | |
| 22A. | 8020984 | [1] | ROPE;PENDANT | |
| 22B. | 431756 | [1] | PIN | |
| 22C. | A761080 | [1] | PIN;SPLIT | NOTE) REFER TO OPERATION AS TO CONNECTING PENDANTO ROPE. |
