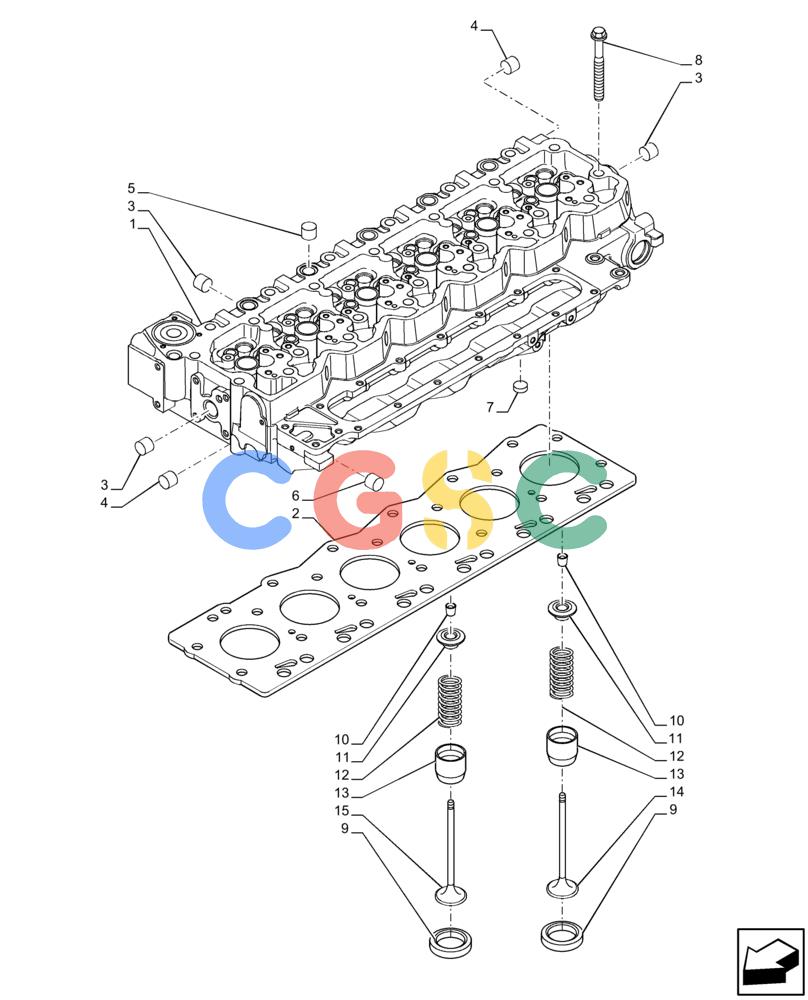

神钢零件查询(F4HFE613T B002) - ENGINE 5801751526 47538797 W170C T4B LECCE (1/14-) (10.101.AA) - CYLINDER HEAD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
557 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2831279 | [1] | CYLINDER HEAD,6 Cylinders | TOR |
| 1. | 2831274 | [1] | CYLINDER HEAD,6 Cylinders | TOR Superseded by part number: |
| 3. | 4895085 | [13] | EXPANSION PLUG,25.74mm | TOR |
| 4. | 4895406 | [7] | EXPANSION PLUG,9.8mm OD | TOR |
| 5. | 4895089 | [11] | PLUG,0.886" L | TOR |
| 6. | 4895407 | [2] | EXPANSION PLUG,38.28mm OD | TOR |
| 7. | 4893036 | [1] | PIPE PLUG,3/4"-14 NPTF | TOR Superseded by part number: 2854866 |
| 8. | 4891025 | [14] | SCREW,Flng, M12 x 1.75 x 150mm | TOR |
| 9. | 4897578 | [12] | VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L | TOR |
| 9. | 4897106 | [12] | VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L | TOR |
| 9. | 4893244 | [24] | VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L | SM |
| 10. | 4899081 | [48] | ROCKER ARM COTTER | TOR |
| 11. | 4895074 | [24] | CUP,18mm ID | TOR |
| 12. | 2831473 | [24] | VALVE SPRING,Compression, 18.8mmOD x 45.2mm L | TOR |
| 13. | 2831287 | [24] | SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk | TOR |
| 14. | 4895052 | [12] | STD INLET VALVE | TOR |
| 15. | 4895051 | [12] | STD EXHAUST VALVE | TOR |
