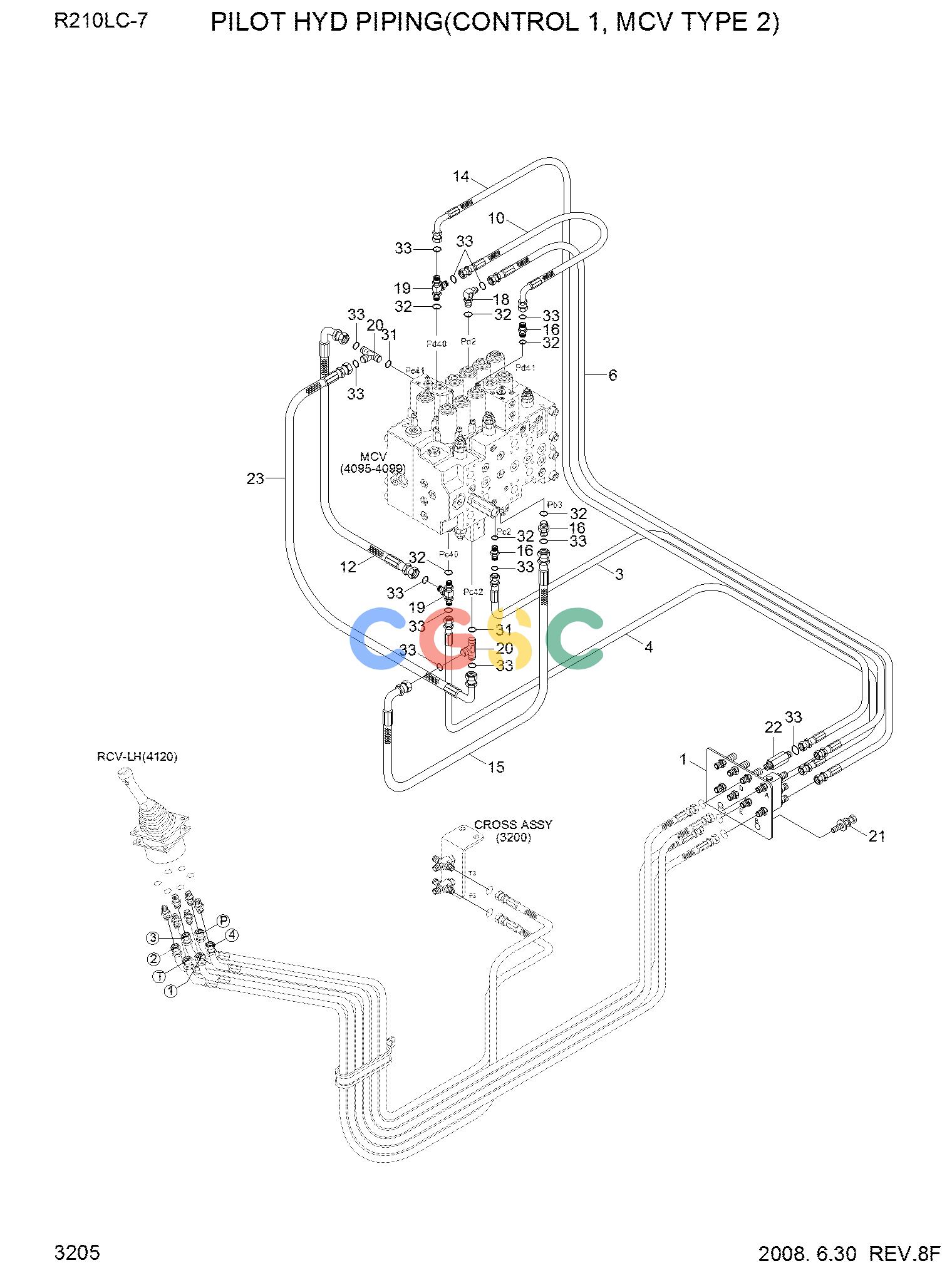

现代零件查询R210/220LC-7H PILOT HYD PIPING(CONTROL 1, MCV TYPE 2)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
626 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
PILOT HYD PIPING
|
|
| 1. |
31N6-25010
|
[1] |
TERMINAL ASSY
|
|
| 3. |
P910-042022
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 3. |
X400-042022
|
[1] |
HOSE ASSY-SYNF,ORFS
|
|
| 4. |
P910-042025
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 4. |
X400-042025
|
[1] |
HOSE ASSY-SYNF,ORFS
|
|
| 6. |
P910-042031
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 6. |
X400-042031
|
[1] |
HOSE ASSY-SYNF,ORFS
|
|
| 10. |
P930-042010
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 10. |
X420-042010
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 12. |
P930-042016
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 12. |
X420-042016
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 14. |
P930-042032
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 14. |
X420-042032
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 15. |
P930-042007
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 15. |
X420-042007
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 16. |
X500-110013
|
[3] |
CONNECTOR-ORFS
|
|
| 18. |
X520-110012
|
[1] |
ELBOW-90,ORFS
|
|
| 19. |
X820-065151
|
[2] |
TEE-R/TYPE,ORFS
|
|
| 20. |
X820-045151
|
[2] |
TEE-R/TYPE,ORFS
|
|
| 21. |
S037-102026
|
[2] |
BOLT-W/WASHER
|
|
| 22. |
31N6-22700
|
[1] |
VALVE-SHOCKLESS
|
|
| 23. |
P930-042021
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 23. |
X420-042021
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 31. |
S631-011004
|
[2] |
O-RING
|
|
| 32. |
S631-014004
|
[6] |
O-RING
|
|
| 33. |
S621-011001
|
[13] |
O-RING
|
|
