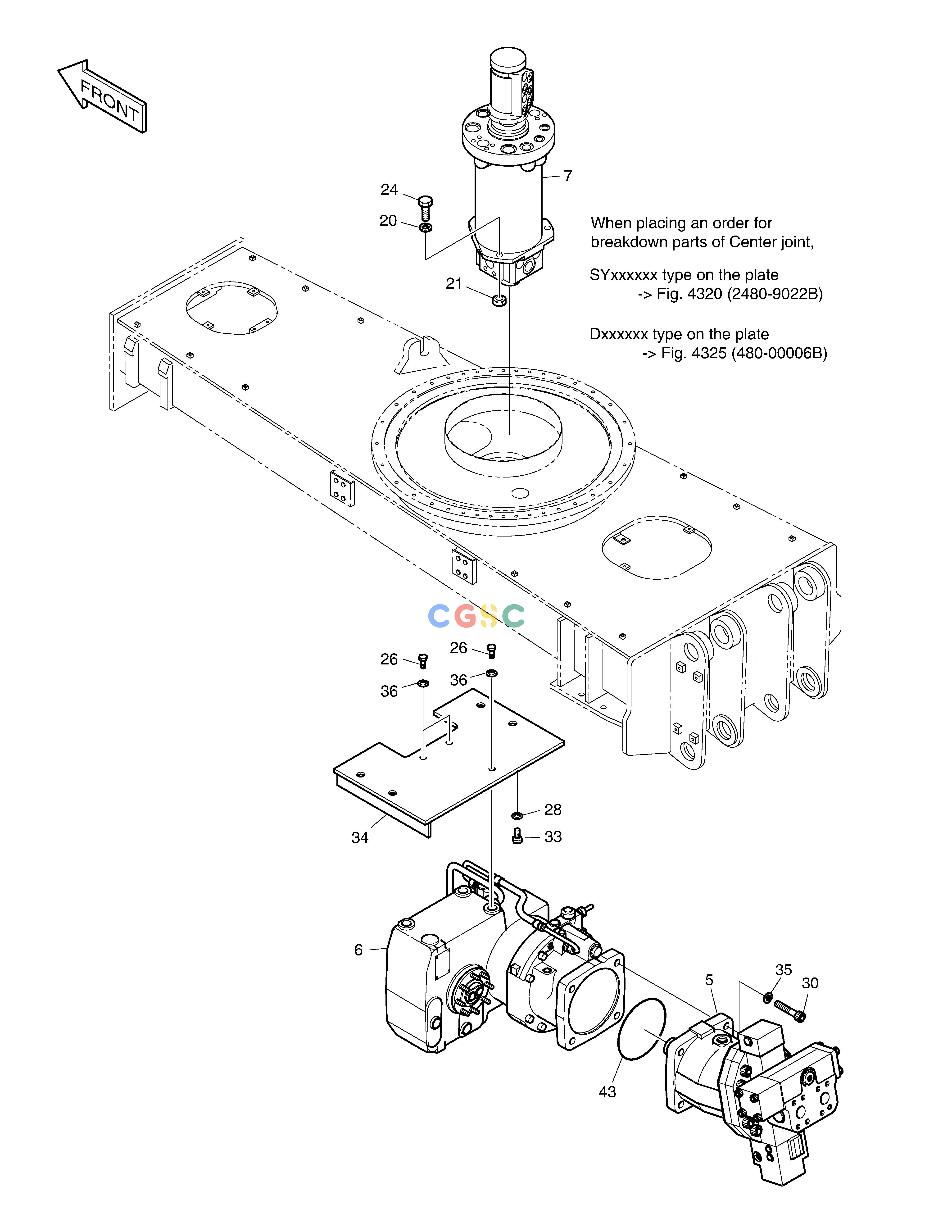

斗山零件查询POWER TRAIN(3)-T/MISSION.T/MOTOR.C/JOINT SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
336 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2200-1043A
|
[-] |
POWER TRAIN
|
|
| -. |
130809-00021
|
[-] |
|
|
| 20. |
S5102903
|
[3] |
WASHER
|
|
| 21. |
S4012933
|
[3] |
NUT
|
|
| 24. |
S0521566
|
[3] |
BOLT
|
|
| 26. |
S0527666
|
[3] |
BOLT M20X2.5X50
|
|
| 28. |
S5103103
|
[4] |
WASHER
|
|
| 30. |
S2221766
|
[4] |
BOLT M16X2.0X55
|
|
| 33. |
S0570466
|
[4] |
BOLT M20X2.5X80
|
|
| 34. |
621-00237A
|
[1] |
PLATE
|
|
| 35. |
S5110901
|
[4] |
WASHER;SPRING M16
|
|
| 36. |
2114-9012A
|
[3] |
WASHER
|
|
| 43. |
1.180-00147
|
[1] |
O-RING
|
|
| 5. |
401-00393B
|
[1] |
MOTOR;TRAVEL
|
|
| 6. |
2210-9410B
|
[1] |
TRANSMISSION
|
|
| 7. |
2480-9022B
|
[1] |
CENTER JOINT
|
400826-00014
|
| 7. |
480-00006B
|
[1] |
CENTER JOINT
|
|
| 7. |
400826-00014
|
[1] |
|
|
