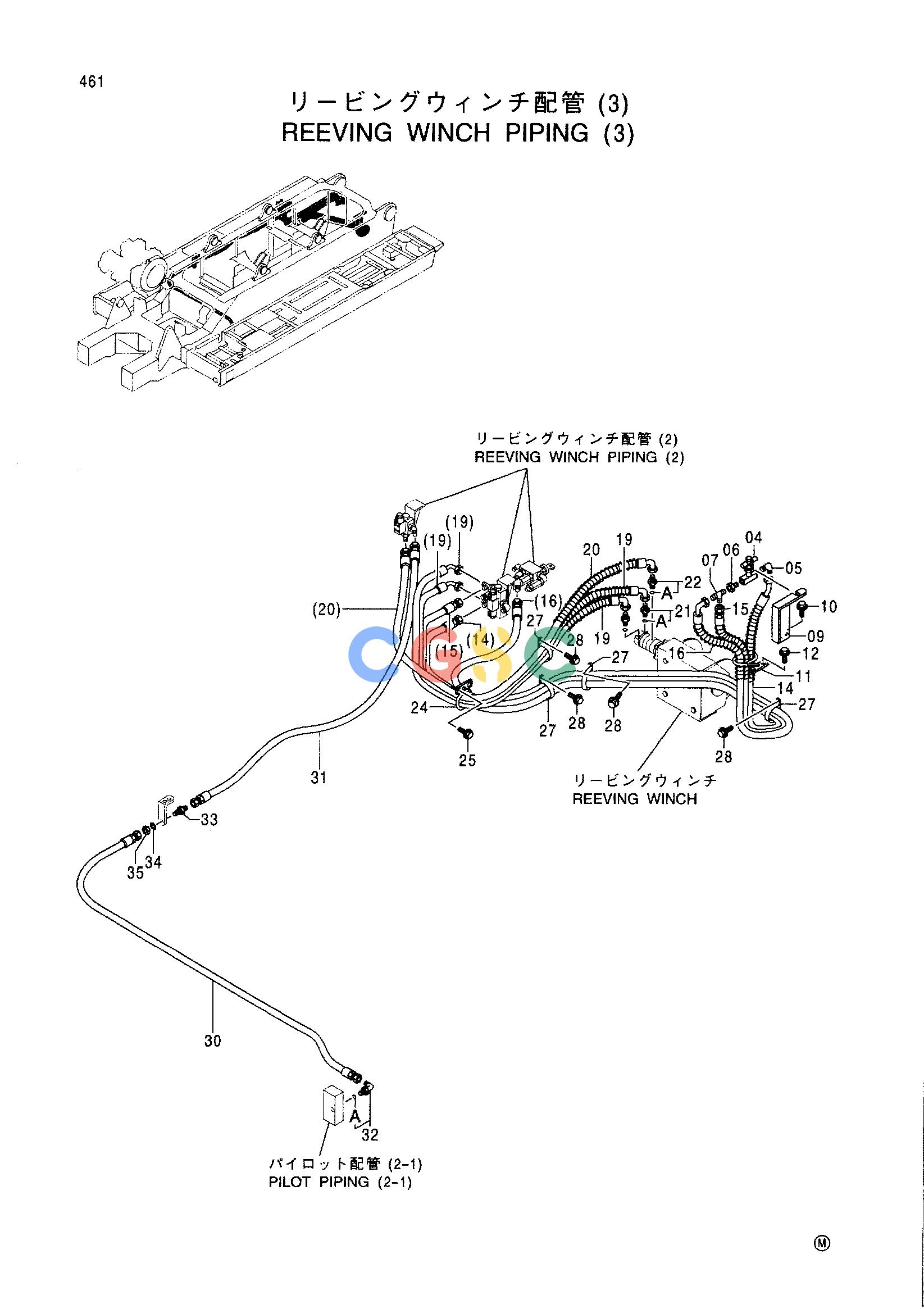

日立零件查询（CX1000）REEVING WINCH PIPING (3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
736 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 04. | 4023814 | [1] | VALVE | |
| 05. | 4154658 | [1] | ELBOW;S | |
| 06. | 94-1602 | [1] | REDUCER | |
| 07. | 4285185 | [1] | TEE;S | |
| 09. | 8073868 | [1] | BRACKET | |
| 10. | J011020 | [2] | BOLT;SEMS | |
| 11. | 8030482 | [1] | SUPPORT | |
| 12. | J011016 | [2] | BOLT;SEMS | |
| 14. | 4408317 | [1] | HOSE | |
| 15. | 4408318 | [1] | HOSE | |
| 16. | 4408299 | [1] | HOSE | |
| 19. | 4408311 | [2] | HOSE | |
| 20. | 4403378 | [1] | HOSE | |
| 21. | 4210361 | [2] | ADAPTER;S | |
| 21A. | 4506418 | [1] | O-RING | |
| 22. | 4200467 | [1] | ADAPTER;S | |
| 22A. | 957366 | [1] | O-RING | |
| 24. | 8073853 | [1] | SUPPORT | |
| 25. | J011016 | [2] | BOLT;SEMS | |
| 27. | 4193816 | [4] | CLIP | |
| 28. | J011020 | [4] | BOLT;SEMS | |
| 30. | 4415478 | [1] | HOSE | |
| 31. | 4270446 | [1] | HOSE | |
| 32. | 4154671 | [1] | ELBOW;S | |
| 32A. | 4509180 | [1] | O-RING | |
| 33. | 4317426 | [1] | ADAPTER;S | |
| 34. | A590916 | [1] | WASHER;SPRING | |
| 35. | 4202531 | [1] | NUT | |
