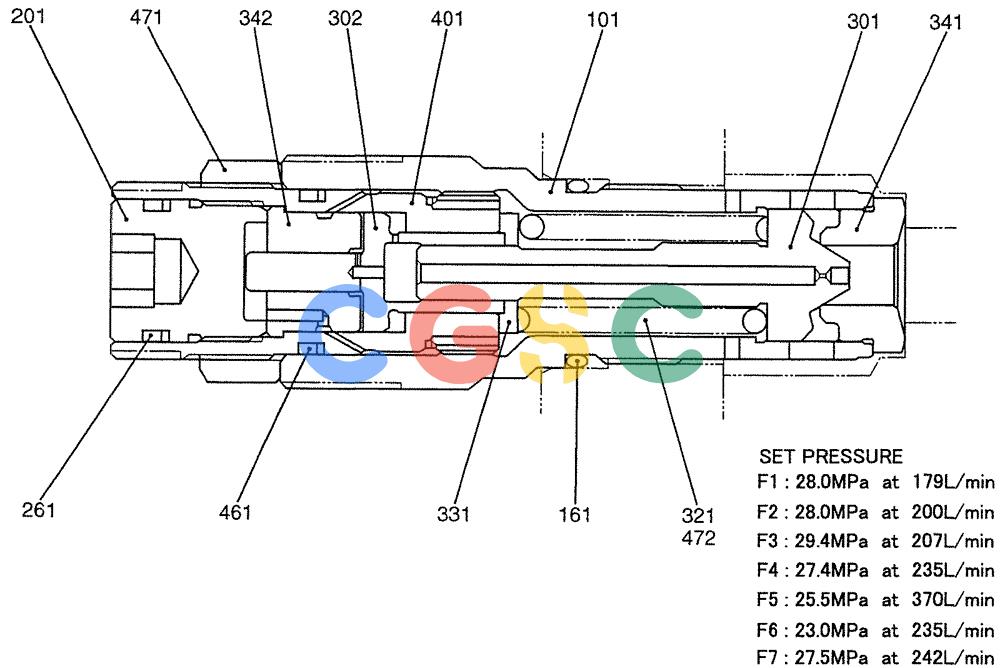

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (07-031) - VALVE ASSY, RELIEF New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
385 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN22V00014F1 | [1] | VALVE | KOBASSY, RELIEF |
| . . | YN22V00014F2 | [1] | VALVE | KOBVALVE ASSY, RELIEF |
| . . | YN22V00014F3 | [1] | VALVE | KOBASSY, RELIEF |
| . . | YN22V00014F4 | [1] | VALVE | KOBASSY, RELIEF |
| . . | YN22V00014F7 | [1] | VALVE | KOBVALVE ASSY, RELIEF |
| 101. | NSS | [1] | NOT SERVICED SEPARATELY | CONBODY |
| 161. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB |
