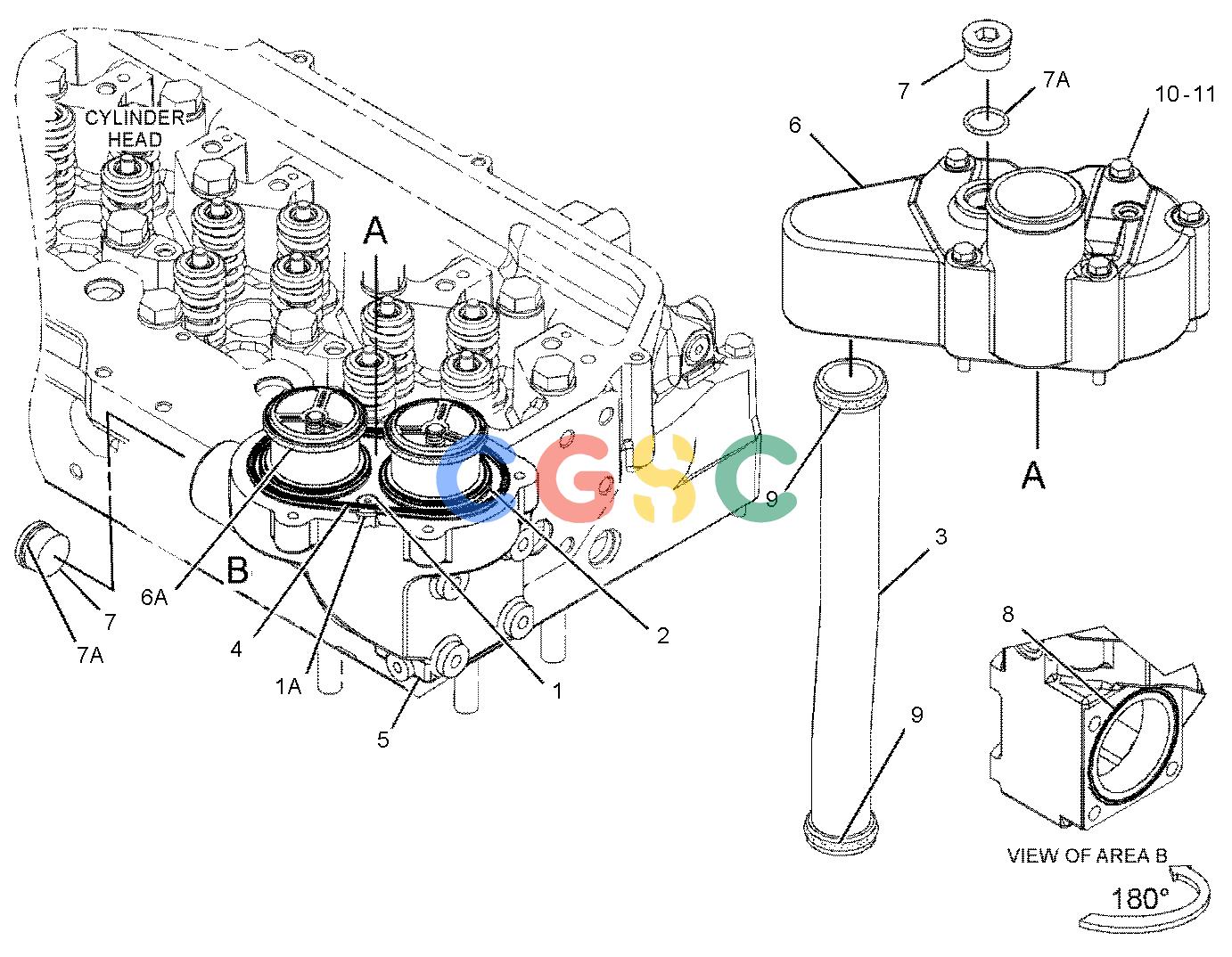

卡特零件查询（730） 343-7192: HOUSING & REGULATOR GP
广数供应链运营团队, 15 02月, 2025，浏览：
336 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 239-8135 | [1] | VALVE AS-VENT(TEMPERATURE REGULATOR)(COOLANT, WATER) | |
| 1A. | 9X-7380 | [1] | SEAL-O-RING | |
| 2. | 248-5513 | [2] | REGULATOR-TEMPERATURE(92-DEG C) | |
| 3. | 454-1775 | [1] | TUBE-WATER | |
| 4. | 341-1429 | [1] | SEAL | |
| 5. | 342-9827 | [1] | HOUSING-WATER REGULATOR | |
| 6. | 343-7202 | [1] | HOUSING AS-REGULATOR(WATER TEMPERATURE) | |
| 6A. | 3S-9643 | [2] | SEAL-LIP TYPE | |
| 7. | 353-5140 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8008 | [1] | PLUG(1-1/16-12-THD) | |
| 7A. | 6V-5063 | [1] | SEAL-O-RING | |
| 8. | 224-6361 | [1] | SEAL | |
| 9. | 6V-9769 | [2] | SEAL-O-RING | |
| 10. | 8T-0292M | [5] | BOLT(M8X1.25X90-MM) | |
| 11. | 9M-1974 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
