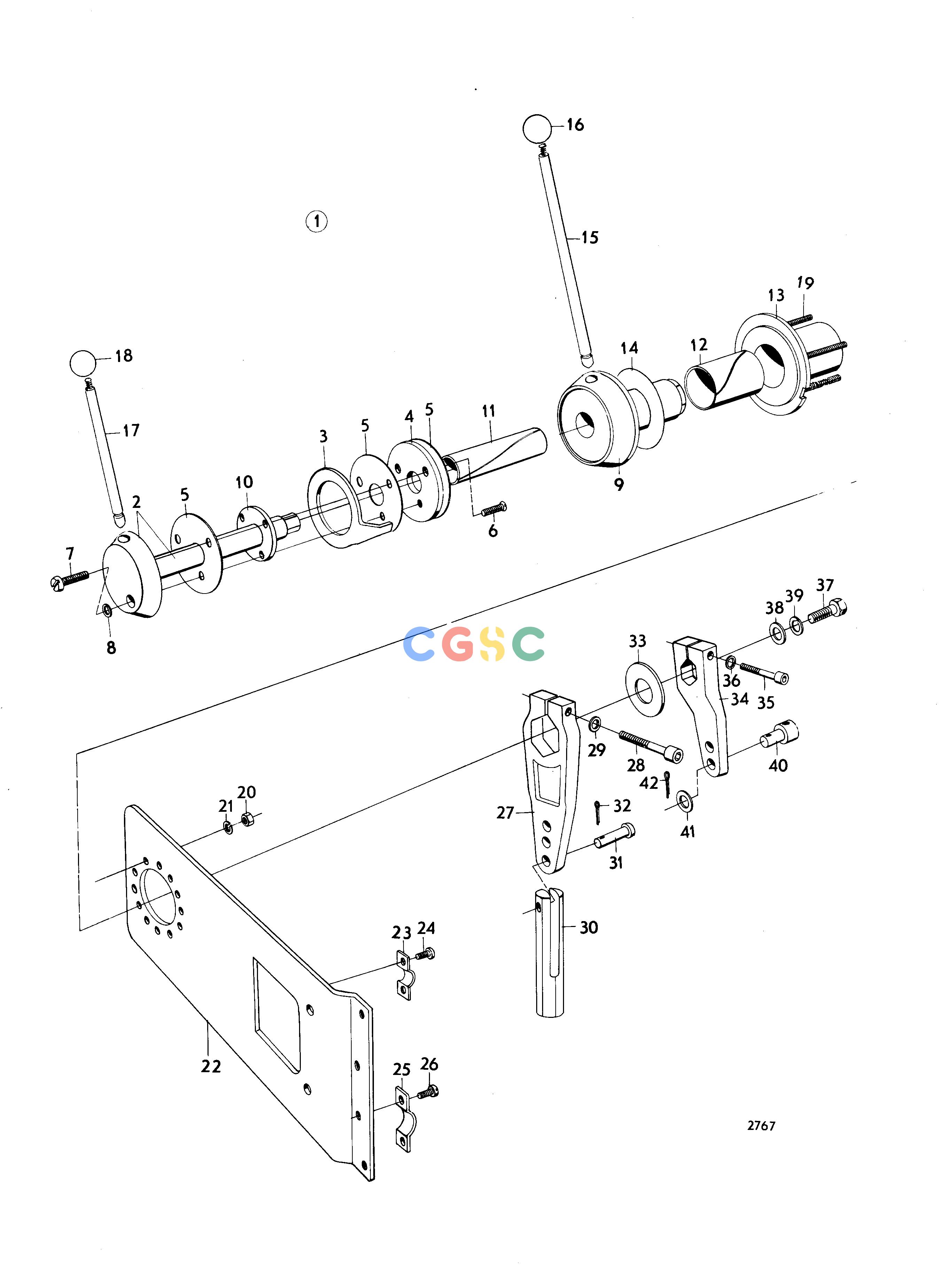

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BMiscellaneous EquipmentTwo-lever Control, Type SREPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
328 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833120
|
[1] |
Local part
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
956078
|
[1] |
Cross recessed screw
|
|
| 8. |
941905
|
[1] |
Spring washer
|
|
| 9. |
|
|
|
|
| 10. |
833658
|
[1] |
Washer
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
833652
|
[1] |
Operating device
|
|
| 16. |
833655
|
[1] |
Ball
|
|
| 17. |
833653
|
[1] |
Handle
|
|
| 18. |
833654
|
[1] |
Ball
|
|
| 19. |
|
|
|
|
| 20. |
955780
|
[4] |
Hexagon nut
|
|
| 21. |
941905
|
[4] |
Spring washer
|
|
| 22. |
|
|
|
|
| 23. |
21471054
|
[1] |
Bracket
|
|
| 24. |
956060
|
[2] |
Cross recessed screw
|
|
| 25. |
833659
|
[1] |
Clamp
|
|
| 26. |
956091
|
[2] |
Cross recessed screw
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
941906
|
[1] |
Spring washer
|
|
| 30. |
|
|
|
|
| 31. |
|
|
|
|
| 32. |
17253
|
[1] |
Split pin
|
|
| 33. |
|
|
|
|
| 34. |
|
|
|
|
| 35. |
|
|
|
|
| 36. |
941905
|
[1] |
Spring washer
|
|
| 37. |
955272
|
[1] |
Hexagon screw
|
|
| 38. |
192287
|
[1] |
Washer
|
|
| 39. |
941906
|
[1] |
Spring washer
|
|
| 40. |
813674
|
[1] |
Cube
|
|
| 41. |
940191
|
[1] |
Washer
|
|
| 42. |
17253
|
[1] |
Split pin
|
|
