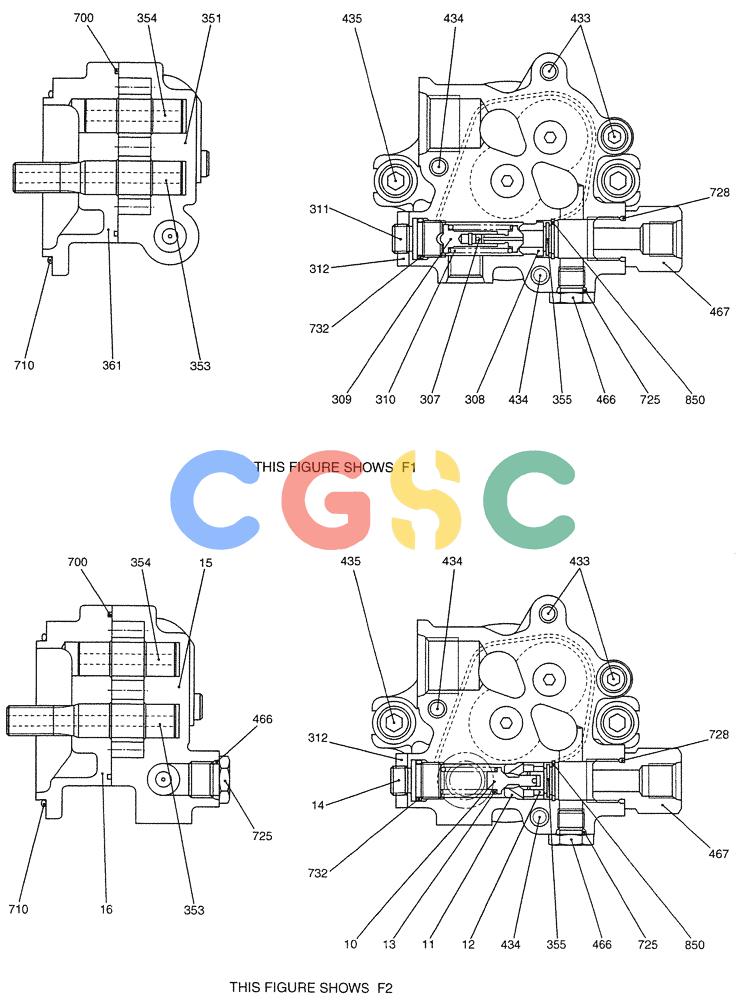

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (07-046) - PUMP ASSY, GEAR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
869 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX10V00004F1 | [1] | PUMP | KOBASSY, GEAR Superseded by part number: 77279971, YX10V00004F2 |
| . . | YX10V00004F2 | [1] | PUMP | KOBASSY, GEAR |
| 10. | NSS | [1] | NOT SERVICED SEPARATELY | CONPOPPET, FOR F2 ONLY |
| 12. | YN10V00014S012 | [1] | RING | KOBFOR F2 ONLY |
| 13. | YN10V00014S013 | [1] | SPRING | KOBFOR F2 ONLY |
| 14. | YN10V00014S014 | [1] | SCREW | KOBADJUST ING, FOR F2 ONLY |
| 310. | YN10V00006S310 | [1] | SPRING | KOBFOR F1 ONLY |
| 311. | YN10V00006S311 | [1] | ADJUSTMENT SCREW | KOBFOR F1 ONLY |
| 312. | YN10V00006S312 | [1] | LOCK NUT | KOB |
| 355. | YN10V00006S355 | [1] | FILTER | KOB |
| 433. | YN10V00006S433 | [2] | SOCKET | KOBCAPSCREW |
| 434. | YN10V00006S434 | [2] | SOCKET | KOBCAPSCREW |
| 435. | YX10V00004S435 | [2] | SOCKET | KOBCAPSCREW |
| 466. | 2441U667S466 | [1] | PLUG | KOBFOR F1 ONLY |
| 467. | YN10V00006S467 | [1] | ADAPTER | KOB |
| 700. | YN10V00006S700 | [1] | RING | KOB |
| 710. | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOB |
| 725. | ZD12P01100 | [1] | O-RING | KOBFOR F1 ONLY |
| 728. | ZD12P01800 | [1] | O-RING | KOB |
| 732. | ZD12P01600 | [1] | O-RING | KOB |
| 850. | ZR26X01800 | [1] | RING | KOBRETAINING |
| . . | YX10V00004R100 | [1] | REPAIR KIT | KOBCONSISTS OF Ref. 307(1), 309(1), FOR F1 ONLY |
| . . | YX10V00004R200 | [1] | REPAIR KIT | KOBCONSISTS OF Ref. 308(1), 351(1), 353(1), 354(1), 361(1), FOR F1 ONLY Superseded by part number: YX10V00004F2 |
| . . | YN10V00033R100 | [1] | PLANETARY CARRIER SHAFT | KOBREPAIR KIT CONSISTS OF Ref. 10(1), 11(1), 15(1), 16(1), 353(1), 354(1), FOR F2 ONLY |
