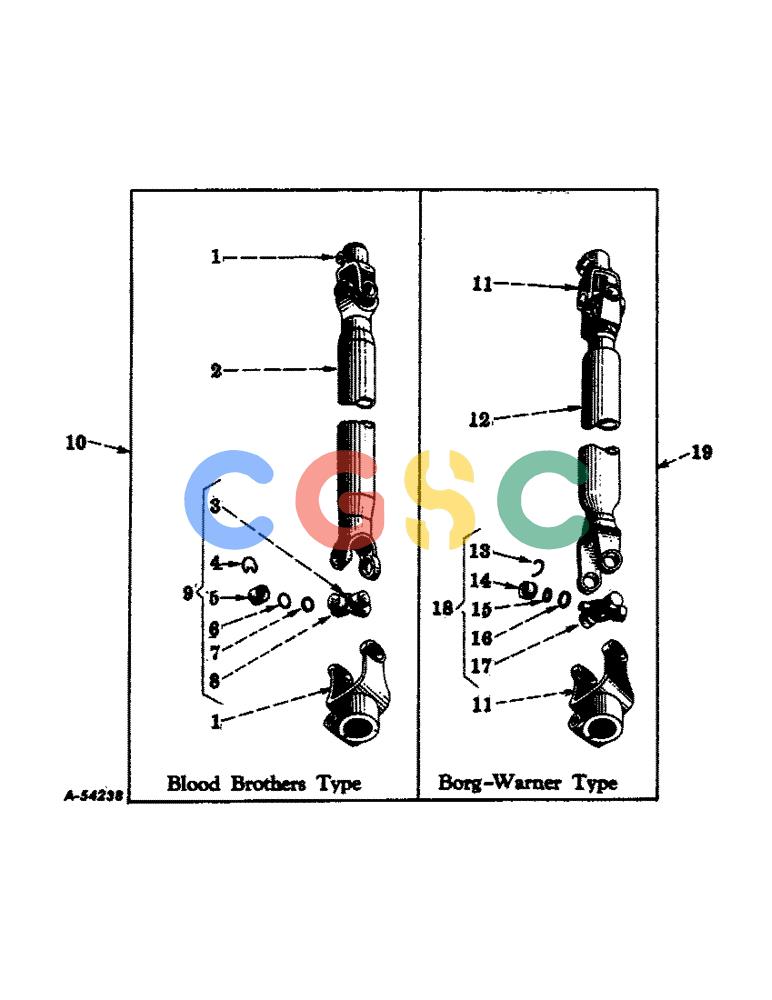

凯斯零件查询(46) - MCCORMICK-INTERNATIONAL PICK UP RECTANGULAR BALER (1/57-12/63) (20) - PACKER DRIVE SHAFT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
589 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
662581R1
|
[2] |
YOKE
|
IH
clamp
|
| 2. |
662580R1
|
[1] |
TUBE, w/yoke
|
|
| 3. |
109350
|
[2] |
FITTING, lubrication 45 degree elbow, 1/8"
|
|
| 4. |
576420R1
|
[8] |
RING
|
IH
SNAP RING
|
| 5. |
576423R1
|
[8] |
|
P
BUSHING
|
| 6. |
576421R1
|
[8] |
|
P
WASHER, cork
|
| 7. |
576422R1
|
[8] |
|
P
RETAINER, cork
|
| 8. |
576424R2
|
[2] |
|
P
CROSS, center
|
| 9. |
656225R92
|
[2] |
KIT
|
IH
CROSS AND BEARING, assembly Superseded by part number: 200464C91
|
| 10. |
662295R91
|
[1] |
|
P
SHAFT, packer drive assembly (Blood Bros.)
|
| . . |
102637
|
[2] |
NUT,1/2"-13, G5
|
IH
Superseded by part number: 280431
|
| . . |
179892
|
[2] |
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
|
IH
SCREW, cap, hex-hd., 1/2-13NC x 2-3/4" Superseded by part number: 87974
|
| . . |
103323
|
[2] |
LOCK WASHER,1/2"
|
IH
WASHER, LOCK, 1/2" Superseded by part number: 87326976
|
| 11. |
656858R1
|
[2] |
YOKE
|
IH
serrated
|
| 12. |
664069R91
|
[1] |
|
P
TUBE, w/yokes
|
| 13. |
20586K
|
[8] |
|
P
SNAP RING
|
| 14. |
658091R91
|
[8] |
|
P
BEARING, roller
|
| 15. |
658092R1
|
[8] |
|
P
WASHER, cork
|
| 16. |
20584K
|
[8] |
|
P
SHIELD, dust
|
| 17. |
658090R11
|
[2] |
CROSS
|
IH
w/dust shield Superseded by part number: 656223R92
|
| 18. |
656223R92
|
[2] |
U-JOINT SPIDER
|
IH
CROSS AND BEARING, assembly Superseded by part number: 47621
|
| 19. |
662296R91
|
[1] |
|
P
SHAFT, packer drive, assembly (Borg-Warner)
|
| . . |
179890
|
[2] |
LATCH
|
NNA
SCREW, cap, hex-hd., 1/2-13NC x 2-1/4" Superseded by part number: 413-836
|
