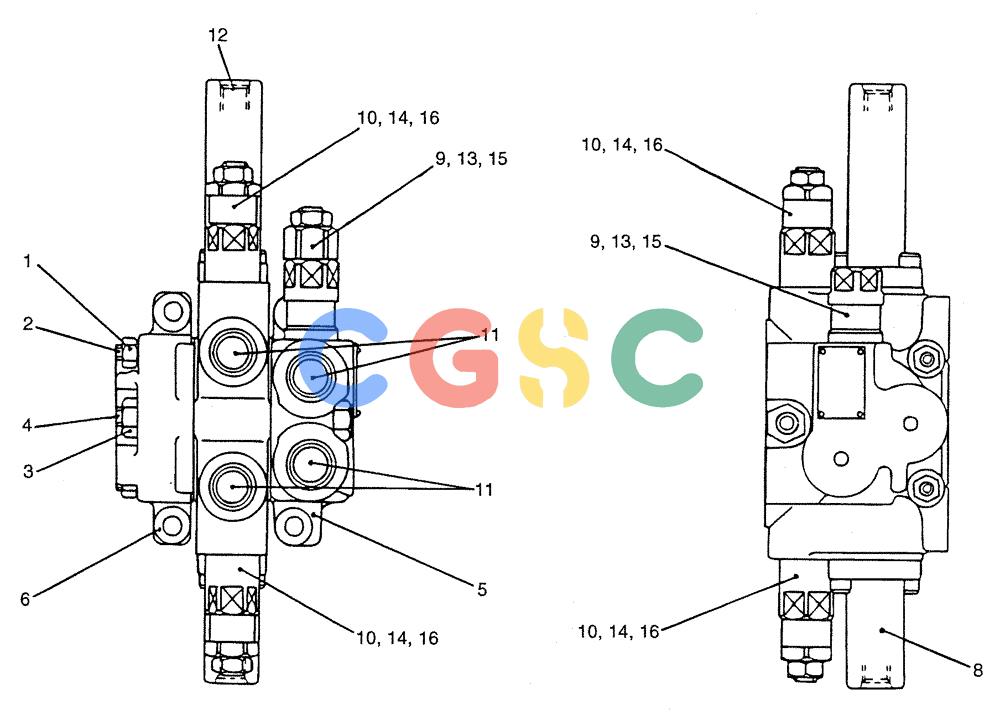

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (07-049) - VALVE ASSY, CONTROL (EXTRA) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
695 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY30V00008F1 | [1] | VALVE | KOBASSY, CONTROL |
| . . | YY30V00008F2 | [1] | CONTROL VALVE | KOBASSY |
| . . | YY30V00008F3 | [1] | CONTROL VALVE | KOBASSY |
| 1. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 2. | 2436R378S1 | [2] | CAP | KOBROD, TIE Superseded by part number: 2436U880S6 |
| 3. | 2436U424S9 | [2] | NUT | KOB |
| 4. | 2436U880S8 | [1] | TIE-ROD | KOB |
| 5. | YR20V00001F1 | [1] | VALVE | KOBSECTION ASSY, INLET, SEE FIG. 07-039 |
| 6. | 2436R329F1 | [1] | OUTLET | KOBSECTION ASSY |
| 8. | YT30V00027F1 | [1] | SPOOL | KOBSECTION ASSY, SEE FIG. 07-044 |
| 9. | 2436R1119F5 | [1] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-003, FOR F1 ONLY |
| 10. | YT22V00006F3 | [2] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-042, FOR F1 ONLY |
| 11. | YR30V00014S010 | [4] | PLUG | KOB |
| 12. | 2436U2937S18 | [2] | PLUG | KOB |
| 13. | 2436R1119F6 | [1] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-003, FOR F2 ONLY |
| 14. | YT22V00006F5 | [2] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-042, FOR F2 ONLY Superseded by part number: YT22V00006F6 |
| 15. | 2436R1119F3 | [1] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-003, FOR F3 ONLY |
| 16. | YT22V00006F2 | [2] | VALVE | KOBASSY, RELIEF, SEE FIG. 07-042, FOR F3 ONLY |
