| 1. |
662283R1
|
[1] |
CRANK
|
IH
drive, needle Superseded by part number: 754729R92, 754576R91
|
| . . |
109084
|
[1] |
NUT,1/4"-20, G5
|
IH
Superseded by part number: 7770
|
| . . |
425-115
|
[1] |
NUT,5/16"-24, G5
|
CAS
hex., 5/16-24NF Superseded by part number: 86629539
|
| . . |
181347
|
[1] |
BOLT,Hex, 5/16" - 24 x 2", Gr 5
|
IH
SHEAR BOLT (No. 2 hardener cap screw) 5/16NF x 2" Superseded by part number: 60451
|
| . . |
103319
|
[1] |
LOCK WASHER,1/4"
|
IH
WASHER, LOCK, 1/4" Superseded by part number: 92-11025
|
| . . |
103320
|
[1] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| 2. |
668002R1
|
[1] |
HUB
|
IH
needle drive crank (Note A) Superseded by part number: 202710C91
|
| 2. |
662047R1
|
[1] |
|
P
HUB, needle drive crank
|
| . . |
Q72
|
[1] |
KEY,5/16" Sq x 1 7/8", Par
|
IH
square (3/8 x 3/8 x 1-7/8")
|
| . . |
102637
|
[1] |
NUT,1/2"-13, G5
|
IH
Superseded by part number: 280431
|
| . . |
443056
|
[1] |
PIN,3/8" x 2", Type F
|
IH
Grooved, (Note A) 3/8" x 2", Type F Superseded by part number: 86624092
|
| . . |
179893
|
[1] |
BOLT,Hex, 1/2" - 13 x 3", Gr 5
|
IH
SCREW, cap, hex-hd., 1/2-13NC x 3" Superseded by part number: 87339
|
| . . |
103323
|
[1] |
LOCK WASHER,1/2"
|
IH
WASHER, LOCK, 1/2" Superseded by part number: 87326976
|
| 3. |
662153R1
|
[1] |
PLATE
|
IH
pressure, knotter brake
|
| . . |
179837
|
[1] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
|
IH
Superseded by part number: 86500692
|
| . . |
103321
|
[1] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 4. |
667818R1
|
[1] |
FLANGE
|
IH
BEARING, knotter, left (Note A)
|
| 4. |
662008R1
|
[1] |
|
P
BEARING, knotter, left
|
| . . |
17446R1
|
[2] |
BOLT,3/8" - 16 x 1 1/4", Gr 2
|
IH
mach., hex-hd., 3/8-16NC x 1-1/4" Superseded by part number: 88011
|
| . . |
102635
|
[2] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| 5. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, lubrication, straight self tapping, 1/4-28 (Note A)
|
| 5. |
80710
|
[2] |
LUBE NIPPLE,1/8” – 27 Dryseal PTF
|
DUB
FITTING, lubrication, straight, 5/16"
|
| 6. |
668963R1
|
[2] |
HOLDER
|
IH
BLADE, keeper, cord holder (Note A) Superseded by part number: 495474R3
|
| 6. |
495474R3
|
[2] |
SHIM
|
IH
BLADE, keeper, cord holder
|
| 7. |
667533R1
|
[2] |
BOLT,3/8" - 16 x 2 7/8"
|
IH
knotter jaw cam (63- )
|
| 7. |
662573R1
|
[2] |
|
P
BOLT, knotter jaw cam (57-62)
|
| . . |
664645R2
|
[2] |
NUT, lock
|
|
| . . |
Q1597
|
[4] |
WASHER
|
IH
plain, 13/32" ID x 3/4" OD x no. 16 ga. Superseded by part number: 86632580
|
| 9. |
332040
|
[4] |
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
|
WIN
FITTING, lubrication, 30 degree elbow, 1/8"
|
| 10. |
V619
|
[2] |
CAM
|
IH
knotter jam (57-62)
|
| 10. |
667563R1
|
[2] |
CAM
|
IH
knotter jaw (63- ) Superseded by part number: 667563R2
|
| 11. |
495420R23
|
[2] |
HOOK
|
IH
knotter (Welded assembly) (57-60) Superseded by part number: 204793C91
|
| 11. |
666511R92
|
[2] |
TWISTER
|
IH
HOOK, knotter (Welded assembly) (61- ) (Note B) Superseded by part number: 204793C91
|
| . . |
667239R1
|
[2] |
DISC
|
IH
SHIM, knotter hook shaft and cord holder spindle
|
| . . |
666518R1
|
[2] |
|
P
PIN, knotter hook jaw (57-60)
|
| . . |
666515R1
|
[2] |
PIN
|
IH
knotter hook jaw (61- )
|
| 11. |
667587R91
|
[2] |
CAM
|
IH
PACKAGE, service, knotter hook and closing cam, Consists of
|
| . . |
U13033
|
[1] |
SPRING
|
IH
|
| 12. |
668959R1
|
[2] |
GEAR
|
IH
PINION, bill hook (Note A)
|
| 12. |
495197R3
|
[1] |
GEAR
|
IH
PINION, bill hook Superseded by part number: 495197R4
|
| . . |
Q3854
|
[2] |
PIN
|
IH
straight 27/32" x no. 6 ga
|
| 13. |
V620
|
[2] |
SPRING
|
IH
knotter jaw cam (57-62) Superseded by part number: 667533R1, U13033
|
| 14. |
668958R1
|
[2] |
NO LONGER SERVICED
|
IH
PINION, cord holder drive bevel (Note A) Superseded by part number: 495192R3
|
| 14. |
495192R3
|
[2] |
GEAR
|
IH
PINION, bevel, cord holder drive shaft
|
| . . |
Q5066
|
[2] |
PIN
|
IH
straight, 31/32" x no. 6 ga.
|
| 15. |
495433R1
|
[2] |
SHAFT HOUSING
|
IH
SHAFT, drive, cord holder Superseded by part number: 3101286R1
|
| . . |
Q232
|
[2] |
WASHER
|
IH
plain, 37/64" ID x 15/16" OD x no. 20 ga. Superseded by part number: 495-81172
|
| . . |
Q3476
|
[2] |
WASHER
|
IH
plain, 37/64" ID x 15/16" OD x no. 24 ga. Superseded by part number: 495-81170
|
| 16. |
495462R2
|
[2] |
DISC
|
IH
DISK, cord holder Superseded by part number: 495462R3
|
| . . |
473-11010
|
[12] |
SCREW,Slotted Flat Hd, #10-24 x 5/8"
|
CAS
self-tapping, slotted-fil-hd., no. 10-24NC x 5/8"
|
| 17. |
667238R1
|
[4] |
SHIM
|
IH
cord holder (.003")
|
| 17. |
495504R1
|
[6] |
SHIM
|
IH
cord holder (.005")
|
| 17. |
667547R1
|
[4] |
|
P
SHIM, cord holder (.005") (Plastic) (Use with shippers twine)
|
| 18. |
495475R2
|
[2] |
BLADE
|
IH
CLEANER, cord holder Superseded by part number: 495475R3
|
| 19. |
495446R2
|
[2] |
HUB
|
IH
DISK AND HUB, cord holder Superseded by part number: 672524R2, 473-11010, 668965R1, 20948R1, 668967R1
|
| 20. |
495619R93
|
[2] |
DISC
|
IH
DISK AND CLEANER, cord holder, assembly Superseded by part number: 495504R1, 754936R1, 171257, 495446R2, 667238R1, 495462R2
|
| 21. |
668971R1
|
[1] |
|
P
CAM, knotter left (Note A)
|
| 21. |
667819R1
|
[1] |
CAM
|
IH
knotter, left Superseded by part number: 667819R2
|
| . . |
Q22
|
[1] |
KEY
|
IH
mach., straight (3/8 x 1/4 x 2-1/4")
|
| 22. |
668956R91
|
[2] |
|
P
KNOTTER, assembly (Note A)
|
| 22. |
495184R63
|
[2] |
|
P
KNOTTER, assembly (57-60)
|
| 22. |
666510R92
|
[2] |
KNOTTER ASSY.
|
IH
KNOTTER, assembly (61- )
|
| . . |
179860
|
[2] |
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5
|
IH
SCREW, cap, hex-hd., 7/16-14NC x 1-1/4" Superseded by part number: 9627887
|
| . . |
103322
|
[2] |
LOCK WASHER,7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
W6652
|
[2] |
WASHER
|
IH
plain, 15/32" ID x 1" OD x no. 16 ga. Superseded by part number: 495-81158
|
| 23. |
668970R1
|
[1] |
CARRIER
|
IH
trip dog (Note A) Superseded by part number: 668970R4
|
| 23. |
662037R1
|
[1] |
CARRIER
|
IH
trip dog
|
| . . |
327184R1
|
[1] |
BOLT,Hex, 1/2"-20 x 2", G8
|
IH
mach., hex-hd., type 4, 1/2-20NF x 2" Superseded by part number: 280564
|
| . . |
Q3728
|
[1] |
KEY,Gib, 3/8" Sq x 2 1/8" Tap
|
IH
tapered (3/8 x 2-1/8") (Note A)
|
| . . |
443057
|
[1] |
GROOVED PIN,3/8" x 2 1/4", Type F
|
IH
Pin, Grooved, (Note A) 3/8" x 2 1/4", Type F Superseded by part number: 435-61236
|
| . . |
Q1376
|
[1] |
KEY
|
IH
tapered (3/8 x 3/8 x 2-1/4")
|
| 24. |
664947R1
|
[1] |
PIVOT
|
IH
trip dog
|
| . . |
Q134
|
[1] |
WASHER, plain, 15/32" ID x 13/16" OD x no. 18 ga.
|
|
| . . |
588009R1
|
[1] |
WASHER, plain, 15/32" ID x 3/4" OD x no. 22 ga.
|
|
| 25. |
655712R11
|
[1] |
PAWL
|
IH
DOG, trip, w/roller and stud
|
| 26. |
R1003
|
[1] |
SPRING
|
IH
auxiliary trip dog
|
| 27. |
662048R1
|
[1] |
NO LONGER SERVICED
|
IH
DOG, auxiliary trip Superseded by part number: 662048R2
|
| 28. |
662036R1
|
[1] |
GEAR
|
IH
drive, knotter
|
| 29. |
V680
|
[1] |
SPRING
|
IH
trip dog Superseded by part number: 753027R1
|
| 30. |
V341
|
[1] |
PAWL
|
IH
ROLLER, trip dog
|
| 31. |
V690
|
[1] |
PIN
|
IH
STUD, trip dog roller
|
| 32. |
662143R1
|
[1] |
|
P
SHAFT, knotter (Note A)
|
| 32. |
668973R1
|
[1] |
|
P
SHAFT, knotter (Note A)
|
| . . |
432-1232
|
[1] |
COTTER PIN,3/16" OD x 2" L
|
CAS
Pin, Split (Cotter), 3/16" x 1 3/4" Superseded by part number: 87400
|
| . . |
Q251
|
[11] |
WASHER
|
IH
plain, 1-7/32" ID x 1-3/4" OD x no. 22 ga. Superseded by part number: 607894R1
|
| . . |
615264R1
|
[4] |
WASHER
|
IH
plain, 1-7/32" ID x 2" OD x no. 22 ga.
|
| . . |
Q120
|
[1] |
WASHER
|
IH
plain, 1-7/32" ID x 2" OD x no. 22 ga. (Note A)
|
| . . |
Q140
|
[3] |
WASHER
|
IH
plain, 1-7/32" ID x 2" OD x no. 16 ga. (Note A) Superseded by part number: 21747R1
|
| 33. |
668415R1
|
[2] |
SPINDLE
|
IH
cord holder (Note A)
|
| 33. |
668978R1
|
[2] |
GEAR
|
IH
cord holder helical driven (Note A)
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
NUT, hex., cd or zn-pltd, 7/16-14NC (Note A)
|
| . . |
425-147
|
[2] |
JAM NUT,Jam, 7/16"-14, G5
|
CAS
hex., jam, cd or zn-pltd, 7/16-14NC (Note A) Superseded by part number: 86642432
|
| 33. |
495437R1
|
[2] |
NO LONGER SERVICED
|
IH
SPINDLE AND GEAR, cord holder Superseded by part number: 86642432, 668416R1, 668415R1
|
| . . |
Q5073
|
[2] |
PIN
|
IH
straight, 1-3/8" x no. 6 ga.
|
| 34. |
668960R1
|
[2] |
GEAR
|
IH
PINION, helical, cord holder (Note A)
|
| 34. |
495425R1
|
[1] |
GEAR
|
IH
PINION, helical, cord holder
|
| 35. |
V618H
|
[2] |
SPACER
|
IH
PIECE, wearing, knotter frame
|
| . . |
117898
|
[2] |
PIN
|
IH
straight, 5/32 x 1-1/16" Superseded by part number: 17141R1
|
| 36. |
495965R94
|
[2] |
KNOTTER ASSY.
|
IH
FRAME, knotter, w/wearing piece
|
| 36. |
668957R11
|
[2] |
|
P
FRAME W/WEARING PIECE, knotter (Note A)
|
| 37. |
495184R6
|
[2] |
FRAME
|
IH
NOT SERVICED Superseded by part number: 495965R94
|
| 38. |
495463R4
|
[2] |
KNIFE
|
IH
twine Superseded by part number: 200425C1, 668961R21, 86533411
|
| . . |
18654R1
|
[4] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
|
IH
mach., hex-hd., cd-pltd, 1/4-20NC x 3/4" Superseded by part number: 424-412
|
| . . |
102380
|
[4] |
SHANK
|
FOR
WASHER, lock, cd-pltd, 1/4"
|
| . . |
120392
|
[12] |
WASHER,1/4", SAE
|
IH
plain, cd-pltd, 9/32" ID x 5/8" OD x no. 16 ga. Superseded by part number: 87361
|
| 39. |
495432R1
|
[12] |
SCREW
|
IH
STUD, pivot, cord holder keeper
|
| 40. |
T823M
|
[1] |
SPRING
|
IH
knotter brake (57-60)
|
| . . |
17624R1
|
[1] |
BOLT, mach., hex-hd., 5/16-18NC x 3"
|
|
| . . |
9635082
|
[2] |
NUT,5/16" - 18, Gr 5
|
NH
hex., 5/16-18NC x 3"
|
| . . |
Q397
|
[1] |
WASHER
|
IH
plain, 11/32" ID x 3/4" OD x no. 16 ga. Superseded by part number: 95-81069
|
| . . |
17600R1
|
[2] |
BOLT, mach., hex-hd., 5/16-18NC x 2-3/4"
|
|
| . . |
95-11034
|
[2] |
WASHER,1/4"
|
CAS
plain, 11/32" ID x 11/16" OD x no. .065" ga.
|
| 41. |
662098R1
|
[1] |
BRAKE SHOE
|
IH
SHOE, knotter shaft brake, right (1961 up) Superseded by part number: 754778R91
|
| 41. |
662096R91
|
[1] |
BRAKE
|
IH
SHOE, knotter shaft brake, right (Riveted assembly) (57-60) Superseded by part number: 754778R91
|
| 42. |
662100R1
|
[2] |
LINING
|
IH
knotter shaft brake (57-60)
|
| . . |
113356
|
[6] |
RIVET,Tr Hd, 3/16" x 3/8"
|
IH
tubular, 3/16 x 19/32"
|
| 42. |
668997R1
|
[2] |
LINING
|
IH
knotter shaft brake (1961 up) Superseded by part number: 754778R91, 754777R91
|
| 43. |
662097R91
|
[1] |
BRAKE
|
IH
SHOE, knotter shaft brake, left (Riveted assembly) (57-60) Superseded by part number: 754777R91
|
| 43. |
662099R1
|
[1] |
SHOE
|
IH
knotter shaft brake, left (1961 up) Superseded by part number: 754777R91
|
| 44. |
662555R1
|
[1] |
BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L
|
IH
needle shear bolt
|
| 45. |
18608R1
|
[1] |
LOCK PIN,7.92mm OD x 25.4mm L, Coiled
|
IH
Pin, 5/16" x 1", Slotted Superseded by part number: 38-32016
|
| 47. |
274510
|
[2] |
FITTING
|
IH
lubrication, 90 degree elbow, 1/4" Superseded by part number: 16964R91
|

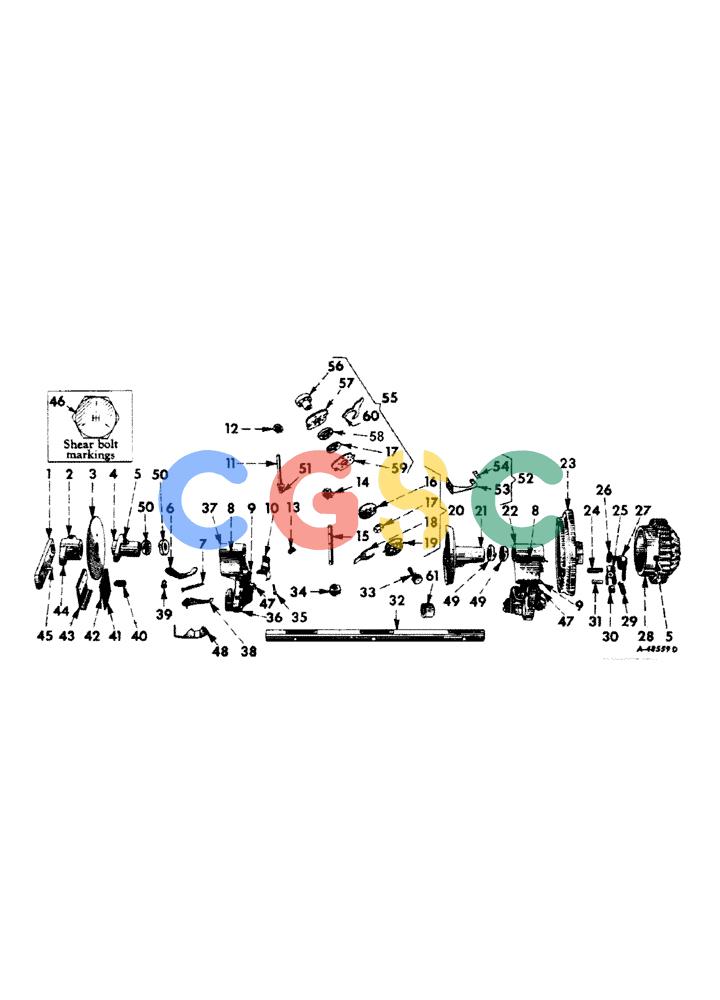

| 48. |
667408R1
|
[2] |
SPRING
|
IH
twine end retainer
|
| 49. |
667813R1
|
[2] |
COLLAR CLAMP
|
IH
COLLAR, adjusting, knotter shaft
|
| . . |
443100
|
[2] |
STUD
|
IH
no. 12 rd-hd. drive
|
| 51. |
666517R92
|
[2] |
HOOK
|
IH
JAW ASSY, knotter (Note A) Superseded by part number: 204793C91
|
| 52. |
668961R21
|
[2] |
KNIFE
|
IH
ASSY, twine (Note A)
|
| . . |
492-11025
|
[4] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 54. |
668962R1
|
[2] |
KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk
|
IH
BLADE, twine knife (Note A)
|
| . . |
436690
|
[2] |
SCREW,Slotted Pan Hd, #8-32 x 3/16"
|
IH
mach., pan-hd-slt., cd or zn-pltd., 8-32 x 3/16" Superseded by part number: 470-1083
|
| 55. |
668964R91
|
[2] |
HOLDER
|
IH
DISK AND CLEANER ASSY, cord holder (Note A) Superseded by part number: 668964R92
|
| 56. |
668965R1
|
[2] |
HUB
|
IH
cord holder (Note A)
|
| . . |
17064R1
|
[2] |
LOCK PIN,1/8" x 5/8", Slotted
|
IH
Pin, 1/8" x 5/8", Slotted Superseded by part number: 20948R1
|
| 57. |
668966R1
|
[2] |
DISC
|
IH
DISK, rear, cord holder (Note A) Superseded by part number: 668966R2
|
| 58. |
668967R1
|
[2] |
RETAINER
|
IH
SPACER, cord holder (Note A)
|
| 59. |
668968R1
|
[2] |
DISC
|
IH
DISK, front, cord holder (Note A) Superseded by part number: 668968R2
|
| . . |
110532
|
[12] |
SCREW,Sl Flat Hd, #10 - 24 x 5/8"
|
IH
Superseded by part number: 473-11010
|
| 60. |
668969R1
|
[2] |
NO LONGER SERVICED
|
IH
CLEANER, cord holder (Note A) Superseded by part number: 668969R2
|
| 61. |
668972R1
|
[1] |
|
P
SPACER, knotter cam left (Note A)
|
| . . |
668866R91
|
[1] |
|
P
PACKAGE, service, knotter cam, Consists of
|
