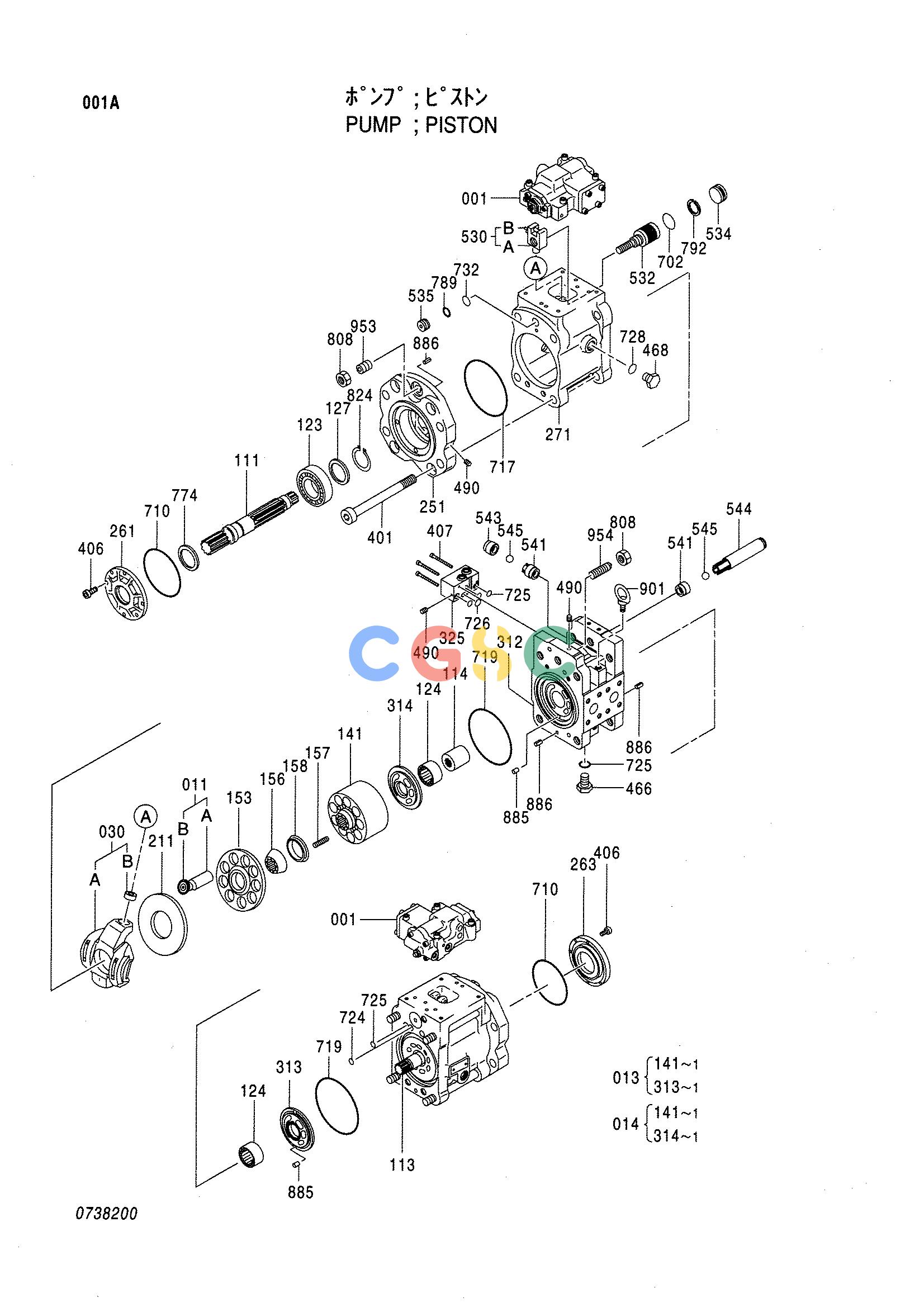

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4362739 | [1] | PUMP;PISTON | 0738200 |
| 001. | 4428295 | [2] | REGULATOR;PUMP | 0738300 |
| 011. | 0738201 | [2] | PISTON ASS'Y | |
| 011A. | +++++++ | [9] | PISTON | |
| 011B. | +++++++ | [9] | SHOE | |
| 013. | 0738202 | [1] | CYL. ASS'Y | |
| 014. | 0738203 | [1] | CYL. ASS'Y | |
| 030. | 0738204 | [2] | PLATE ASS'Y | |
| 030A. | +++++++ | [1] | PLATE | |
| 030B. | +++++++ | [1] | BUSHING | |
| 111. | 0738205 | [1] | SHAFT | |
| 113. | 0738206 | [1] | SHAFT | |
| 114. | 0738207 | [1] | COUPLING | |
| 123. | 0738208 | [2] | BRG.;ROL. | |
| 124. | 0738209 | [2] | BRG.;NEEDLE | |
| 127. | 0738210 | [3] | SPACER | |
| 141. | +++++++ | [2] | BLOCK | |
| 153. | 0451014 | [2] | RETAINER | |
| 156. | 0451015 | [2] | BUSHING | |
| 157. | 0738211 | [18] | SPRING | |
| 158. | 0738212 | [2] | SPACER | |
| 211. | 0353311 | [2] | PLATE | |
| 251. | 0738213 | [2] | SUPPORT | |
| 261. | 0451020 | [1] | COVER;SEAL | |
| 263. | 0451021 | [1] | COVER;SEAL | |
| 271. | 0738214 | [2] | CASING | |
| 312. | 0738215 | [1] | BLOCK | |
| 313. | +++++++ | [1] | PLATE;VALVE | |
| 314. | +++++++ | [1] | PLATE;VALVE | |
| 325. | 0738216 | [1] | CASING | |
| 401. | 0451025 | [8] | BOLT;SOCKET | |
| 406. | M340820 | [8] | BOLT;SOCKET | |
| 407. | 0155616 | [3] | BOLT;SOCKET | |
| 466. | 0236014 | [3] | PLUG | |
| 468. | 0175233 | [4] | PLUG | |
| 490. | 0263019 | [32] | PLUG | |
| 530. | 0451029 | [2] | PIN ASS'Y | |
| 530A. | +++++++ | [1] | PIN | |
| 530B. | +++++++ | [1] | PIN | |
| 532. | 0451030 | [2] | PISTON;SERVO | |
| 534. | 0451031 | [2] | STOPPER | |
| 535. | 0451032 | [2] | STOPPER | |
| 541. | 0738217 | [4] | SEAT | |
| 543. | 0738218 | [2] | STOPPER | |
| 544. | 0738219 | [2] | STOPPER | |
| 545. | 0221509 | [4] | BALL;STEEL | |
| 702. | A811040 | [2] | O-RING | |
| 710. | A811105 | [2] | O-RING | |
| 717. | 0308622 | [2] | O-RING | |
| 719. | 0451034 | [2] | O-RING | |
| 724. | 4506408 | [16] | O-RING | |
| 725. | 957366 | [8] | O-RING | |
| 726. | 4509180 | [1] | O-RING | |
| 728. | 4506424 | [2] | O-RING | |
| 732. | 985099 | [2] | O-RING | |
| 774. | 0384208 | [1] | SEAL;OIL | |
| 789. | 4040365 | [2] | RING;BACK-UP | |
| 792. | 0738220 | [2] | RING;BACK-UP | |
| 808. | 0451038 | [4] | NUT | |
| 824. | 959499 | [2] | RING;RETAINING | |
| 885. | 0313404 | [2] | PIN | |
| 886. | 0244604 | [4] | PIN;SPRING | |
| 901. | 0134458 | [2] | BOLT;EYE | |
| 953. | 0451039 | [2] | SCREW;SET | |
| 954. | 0738221 | [2] | SCREW;SET | |
