日立零件查询（CX1000）PUMP;GEAR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
305 次

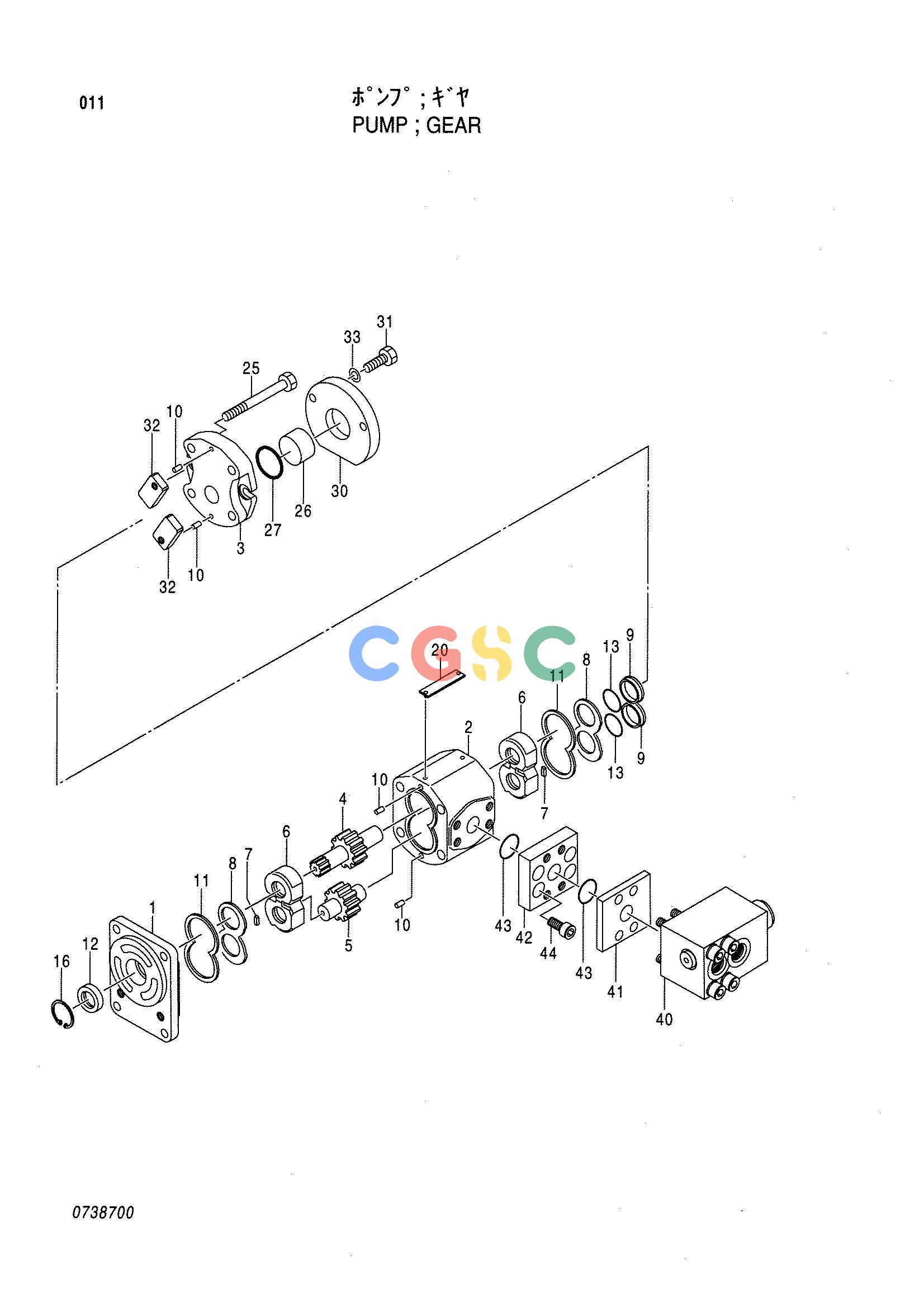

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4362740 | [1] | PUMP;GEAR | 0738700 |
| 1. | 0738701 | [1] | FRAME | |
| 2. | 0738702 | [1] | CASE | |
| 3. | 0738703 | [1] | FRAME | |
| 4. | 0738704 | [1] | GEAR | |
| 5. | 0738705 | [1] | GEAR | |
| 6. | 0738706 | [2] | PLATE | |
| 7. | 0386304 | [2] | RING | |
| 8. | 0295002 | [2] | PLATE | |
| 9. | 0295003 | [2] | GUIDE | |
| 10. | 0330401 | [4] | PIN | |
| 11. | 0295004 | [2] | RING | |
| 12. | 0738707 | [1] | SEAL;OIL | |
| 13. | 0295006 | [2] | O-RING | |
| 16. | 0230202 | [1] | RING;RETAINING | |
| 20. | 0738708 | [1] | NAME-PLATE | |
| 25. | 0295402 | [4] | BOLT;SOCKET | |
| 26. | 0293602 | [1] | COLLAR | |
| 27. | 0294606 | [1] | O-RING | |
| 30. | 0738709 | [1] | COVER | |
| 31. | 0254011 | [2] | BOLT;SOCKET | |
| 32. | 0738710 | [2] | NUT | |
| 33. | 0738711 | [2] | WASHER;PLANE | |
| 40. | 4425079 | [1] | VALVE;RELIEF | 0738800 |
| 41. | 0738712 | [1] | PLATE | |
| 42. | 0738713 | [1] | PLATE | |
| 43. | A810025 | [2] | O-RING | |
| 44. | 0738714 | [4] | BOLT;SOCKET | |
