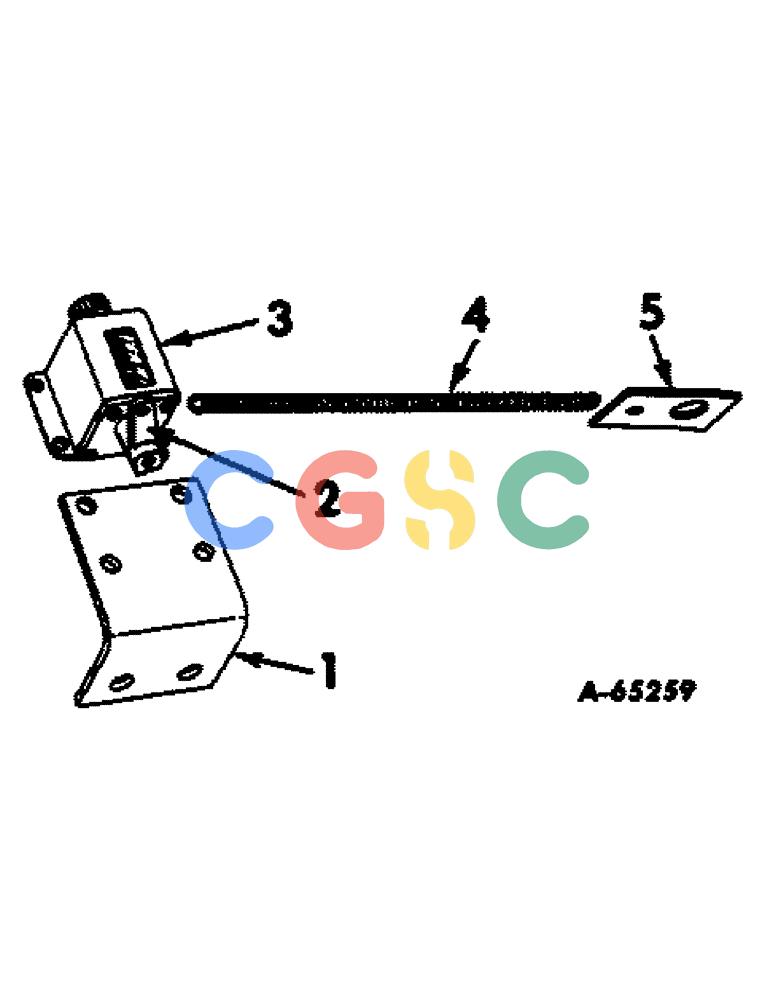

凯斯零件查询(46) - MCCORMICK-INTERNATIONAL PICK UP RECTANGULAR BALER (1/57-12/63) (46) - BALE COUNTER, FOR NO. 46-T BALER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
163 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
662364R1
|
[1] |
BRACKET
|
IH
MOUNT, bale counter
|
| . . |
109084
|
[2] |
NUT,1/4"-20, G5
|
IH
Superseded by part number: 7770
|
| . . |
113956
|
[2] |
WASHER,Slotted Rd Hd, 1/4"-20 x 5/8"
|
NNA
machine, slt-rd-hd., 1/4-20NC x 5/8" Superseded by part number: 440-12510, 440-12510, NLS
|
| . . |
103319
|
[2] |
LOCK WASHER,1/4"
|
IH
WASHER, LOCK, 1/4" Superseded by part number: 92-11025
|
| 2. |
656707R91
|
[1] |
ARM
|
IH
w/set screw, bale counter (Veeder Root)
|
| 2. |
667586R91
|
[1] |
|
P
ARM, w/set screw, bale counter (Durant)
|
| 3. |
495046R92
|
[1] |
COUNTER
|
IH
bale, assembly
|
| 4. |
495525R1
|
[1] |
SPRING
|
IH
bale counter
|
| 5. |
663718R1
|
[1] |
|
P
CLIP, bale counter
|
| . . |
103385
|
[1] |
COTTER PIN,1/8" x 1"
|
IH
PIN, SPLIT (COTTER), 1/8" x 1" Superseded by part number: 80755
|
