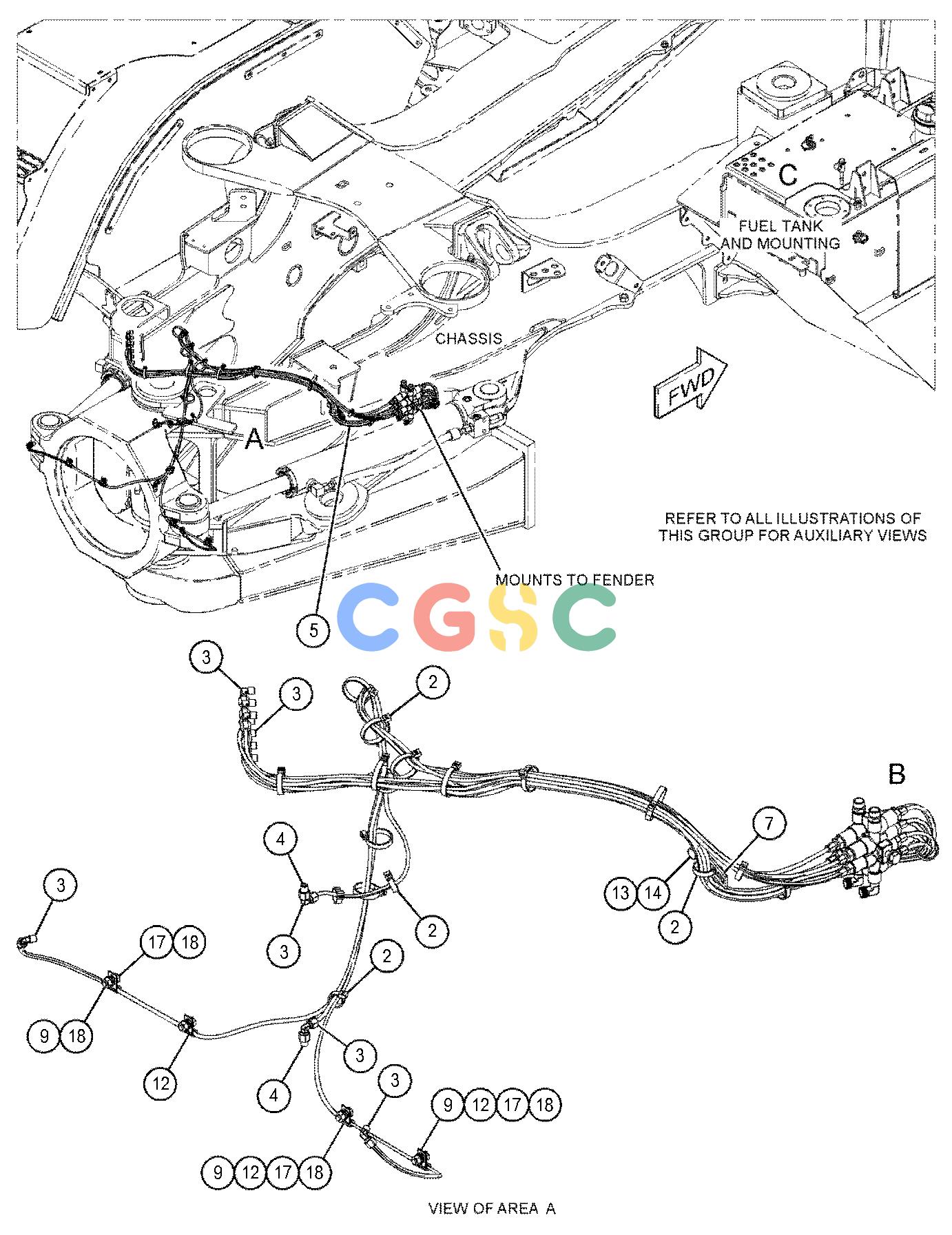

卡特零件查询（730） 526-0519: LINES GP-AUTOMATIC LUBRICATION
广数供应链运营团队, 15 02月, 2025，浏览：
368 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [3] | STRAP-CABLE | |
| 2. | 7K-1181 | [19] | STRAP-CABLE | |
| 3. | 177-3464 | [11] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 4. | 177-3475 | [2] | CONNECTOR(REDUCER) | |
| 5. | 415-1479Y | [1] | VALVE GP-LUBE DISTRIBUTION(12-INJECTOR) | |
| 6. | 139-6122 | [1] | BOSS | |
| 7. | 352-3964 | [2] | CLIP(LADDER) | |
| 8. | 4P-8134 | [1] | CLIP(LADDER) | |
| 9. | 5C-7261M | [4] | NUT(M8X1.25-THD) | |
| 10. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 11. | 8M-2770 | [2] | CLIP(LOOP) | |
| 12. | 8M-2772 | [4] | CLIP(LOOP) | |
| 13. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 15. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 16. | 8T-4178M | [1] | BOLT(M10X1.5X90-MM) | |
| 17. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 18. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
