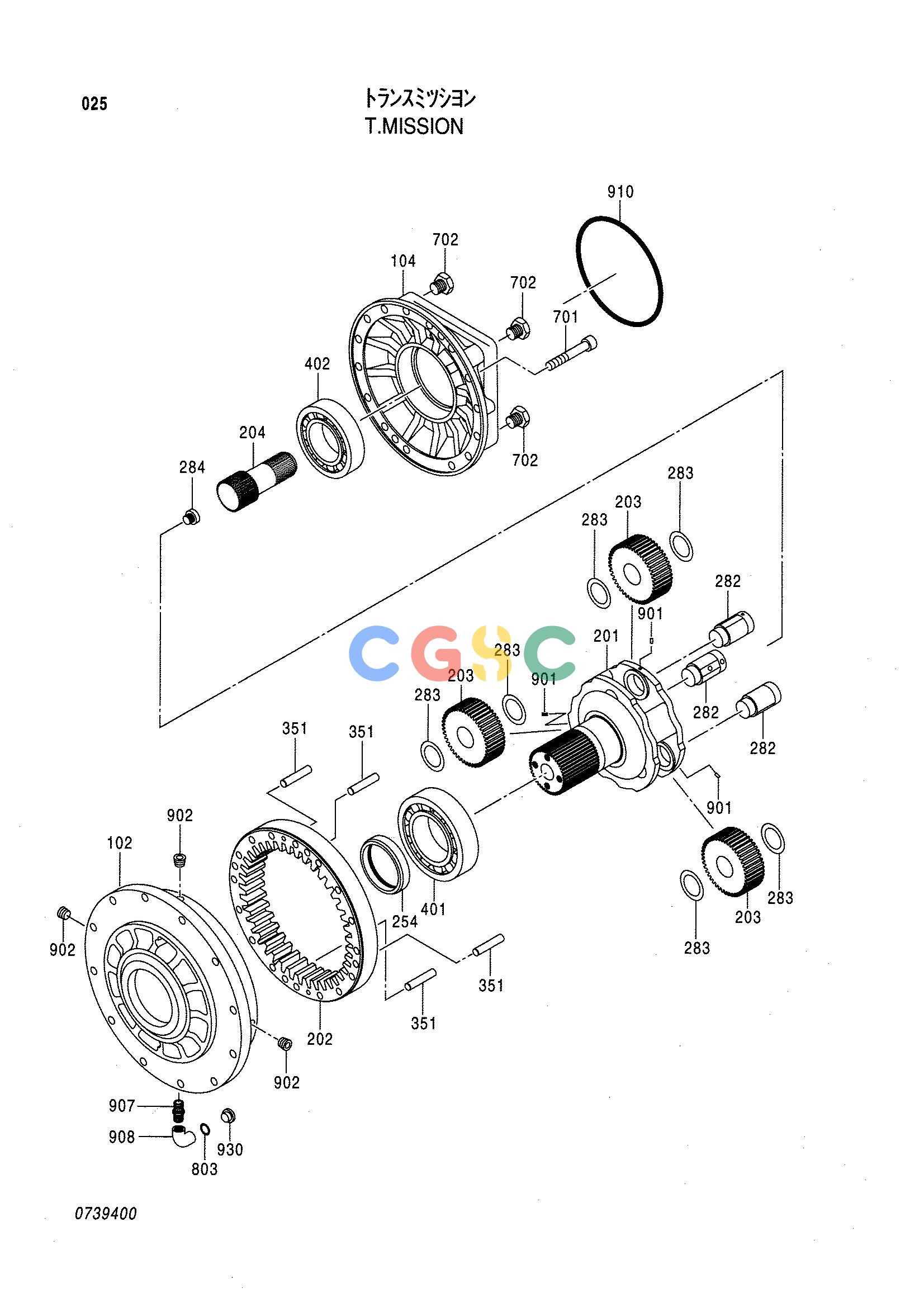

日立零件查询（CX1000）T.MISSION Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
434 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4393907 | [1] | T.MISSION | 0739400 |
| 102. | 0290301 | [1] | CASING;FRONT | |
| 104. | 0739401 | [1] | CASING;REAR | |
| 201. | 0252402 | [1] | SHAFT | |
| 202. | 0252403 | [1] | GEAR;RING | |
| 203. | 0252404 | [3] | GEAR;PLANETARY | |
| 204. | 0252405 | [1] | GEAR;SUN | |
| 254. | 0252406 | [1] | RING;SEAL | |
| 282. | 0252407 | [3] | PIN | |
| 283. | 0252408 | [6] | WASHER;THRUST | |
| 284. | 0252409 | [1] | THRUST;BUTTON | |
| 351. | 0252410 | [4] | PIN;KNOCK | |
| 401. | 0739402 | [1] | BRG.;ROLLER | |
| 402. | 0252412 | [1] | BRG.;ROLLER | |
| 701. | 0252413 | [16] | BOLT;SOCKET | |
| 702. | 0235819 | [4] | BOLT | |
| 803. | 0101729 | [1] | WASHER;SEAL | |
| 901. | 0252414 | [3] | PIN;SPRING | |
| 902. | 0147210 | [3] | PLUG | |
| 907. | 0301601 | [1] | NIPPLE | |
| 908. | 0290303 | [1] | ELBOW | |
| 910. | 0237817 | [1] | O-RING | |
| 930. | 0739403 | [1] | GAUGE | |
