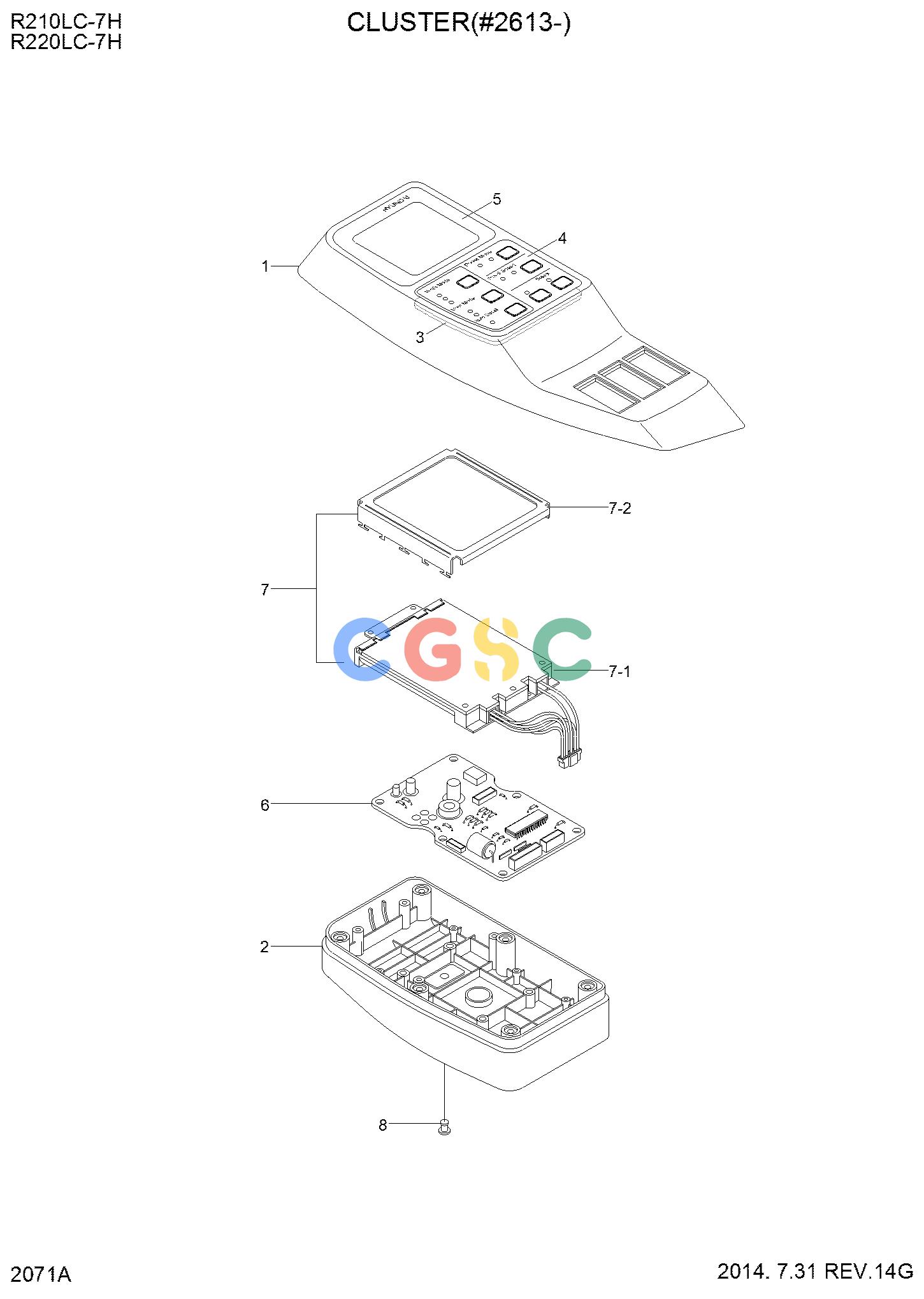

现代零件查询R210/220LC-7H CLUSTER(#2613-)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
886 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
21N8-30015
|
[1] |
CLUSTER ASSY
|
|
| 1. |
21N8-35101
|
[1] |
CASE-UPPER
|
|
| 2. |
21N8-30030
|
[1] |
CASE-LOWER
|
|
| N2-1. |
21N8-30040
|
[4] |
INSERT
|
|
| 3. |
21N8-36300
|
[1] |
SWITCH ASSY
|
|
| 4. |
21N8-30072
|
[1] |
DECAL-SWITCH
|
|
| 5. |
21N8-35401
|
[1] |
DECAL-LCD
|
|
| 6. |
21N8-35500
|
[1] |
BOARD-POWER
|
|
| N7. |
21N8-35601
|
[1] |
MODULE-MAIN
|
|
| N7-1. |
21N8-35701
|
[1] |
BOARD-MAIN
|
|
| N7-2. |
21N8-35801
|
[1] |
MODULE-LCD
|
|
| 8. |
21N8-35900
|
[1] |
CAP-USB
|
|
| N. |
@
|
[AR] |
NOT SUPPLIED PARTS
|
|
