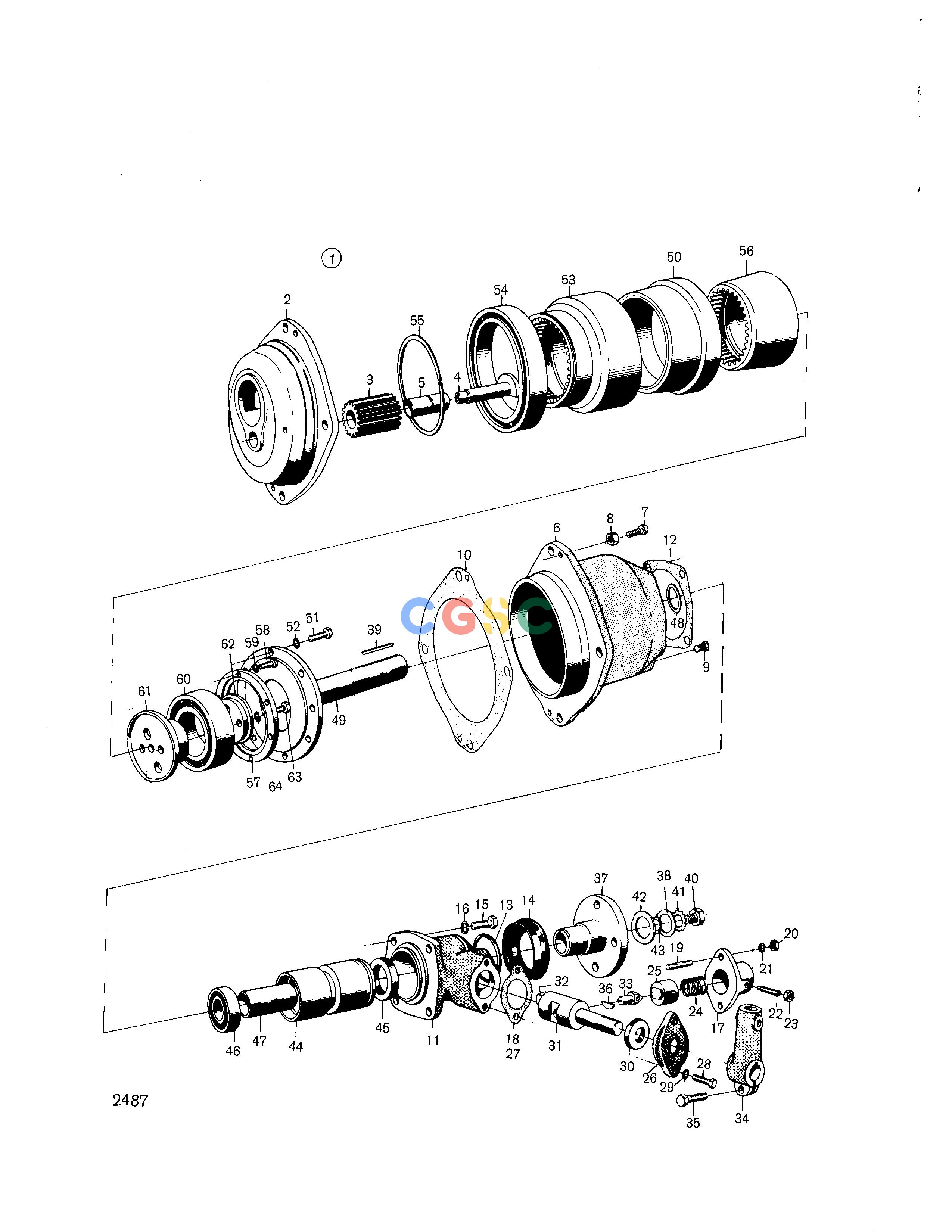

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BTransmissionsReverse GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
576 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
807370
|
[1] |
Reversing gear
|
Ratio 1,87:1
|
| 2. |
807013
|
[1] |
Spacer flange
|
|
| 3. |
802740
|
[1] |
Idler gear
|
|
| 4. |
802715
|
[1] |
Countershaft
|
|
| 5. |
|
|
|
Replaced by 4PCS 803474., Early type
|
| 5. |
803474
|
[4] |
Needle bearing
|
Late type
|
| 6. |
807014
|
[1] |
Housing
|
|
| 7. |
955274
|
[2] |
Hexagon screw
|
|
| 8. |
955781
|
[2] |
Hexagon nut
|
|
| 9. |
807045
|
[1] |
Plug
|
|
| 10. |
803228
|
[1] |
Gasket
|
|
| 11. |
802704
|
[1] |
Bearing housing
|
|
| 12. |
802699
|
[1] |
Gasket
|
|
| 13. |
925255
|
[1] |
O-ring
|
|
| 14. |
802924
|
[1] |
Rubber bellows
|
|
| 15. |
955317
|
[4] |
Hexagon screw
|
|
| 16. |
907132
|
[4] |
Gasket
|
|
| 17. |
802729
|
[1] |
Sleeve
|
|
| 18. |
803101
|
[1] |
Gasket
|
|
| 19. |
924051
|
[2] |
Stud
|
|
| 20. |
955781
|
[2] |
Hexagon nut
|
|
| 21. |
941906
|
[2] |
Spring washer
|
|
| 22. |
919119
|
[1] |
Set screw
|
|
| 23. |
955781
|
[1] |
Hexagon nut
|
|
| 24. |
802730
|
[1] |
Coil spring
|
|
| 25. |
802728
|
[1] |
Block-up sleeve
|
|
| 26. |
803020
|
[1] |
Flange
|
|
| 27. |
803101
|
[1] |
Gasket
|
|
| 28. |
955273
|
[2] |
Hexagon screw
|
|
| 29. |
941906
|
[2] |
Spring washer
|
|
| 30. |
803439
|
[1] |
Sealing ring
|
|
| 31. |
802725
|
[1] |
Shaft
|
|
| 32. |
802726
|
[1] |
Coupling pin
|
|
| 33. |
802727
|
[1] |
Plunger
|
|
| 34. |
803647
|
[1] |
Lever
|
|
| 35. |
955296
|
[1] |
Hexagon screw
|
|
| 36. |
910119
|
[1] |
Woodruff key
|
|
| 37. |
802723
|
[1] |
Companion flange
|
|
| 38. |
806199
|
[1] |
Washer
|
|
| 39. |
909873
|
[1] |
Flat key
|
|
| 40. |
806181
|
[1] |
Screw
|
|
| 41. |
955953
|
[1] |
Toothed washer
|
(17905)
|
| 42. |
192031
|
[1] |
Gasket
|
|
| 43. |
190418
|
[1] |
O-ring
|
|
| 44. |
802720
|
[1] |
Bearing sleeve
|
|
| 45. |
803441
|
[1] |
Sealing ring
|
|
| 46. |
19258
|
[2] |
Ball bearing
|
|
| 47. |
802722
|
[1] |
Spacer sleeve
|
|
| 48. |
944696
|
[1] |
Shim
|
TH=1.0mm
|
| 48. |
34615
|
[3] |
Shim
|
TH=0.1mm
|
| 49. |
807292
|
[1] |
Shaft
|
|
| 50. |
802900
|
[1] |
Fitting
|
|
| 51. |
955295
|
[8] |
Hexagon screw
|
|
| 52. |
941907
|
[8] |
Spring washer
|
|
| 53. |
803542
|
[1] |
Gear
|
|
| 54. |
190802
|
[1] |
Ball bearing
|
|
| 55. |
914492
|
[1] |
Snap ring
|
|
| 56. |
802739
|
[1] |
Gear
|
|
| 57. |
803224
|
[1] |
Lock ring
|
|
| 58. |
955272
|
[6] |
Hexagon screw
|
|
| 59. |
941906
|
[6] |
Spring washer
|
|
| 60. |
183458
|
[1] |
Ball bearing
|
|
| 61. |
802707
|
[1] |
Bearing support
|
|
| 62. |
802708
|
[1] |
Washer
|
|
| 63. |
955323
|
[2] |
Hexagon screw
|
|
| 64. |
941908
|
[2] |
Spring washer
|
|
