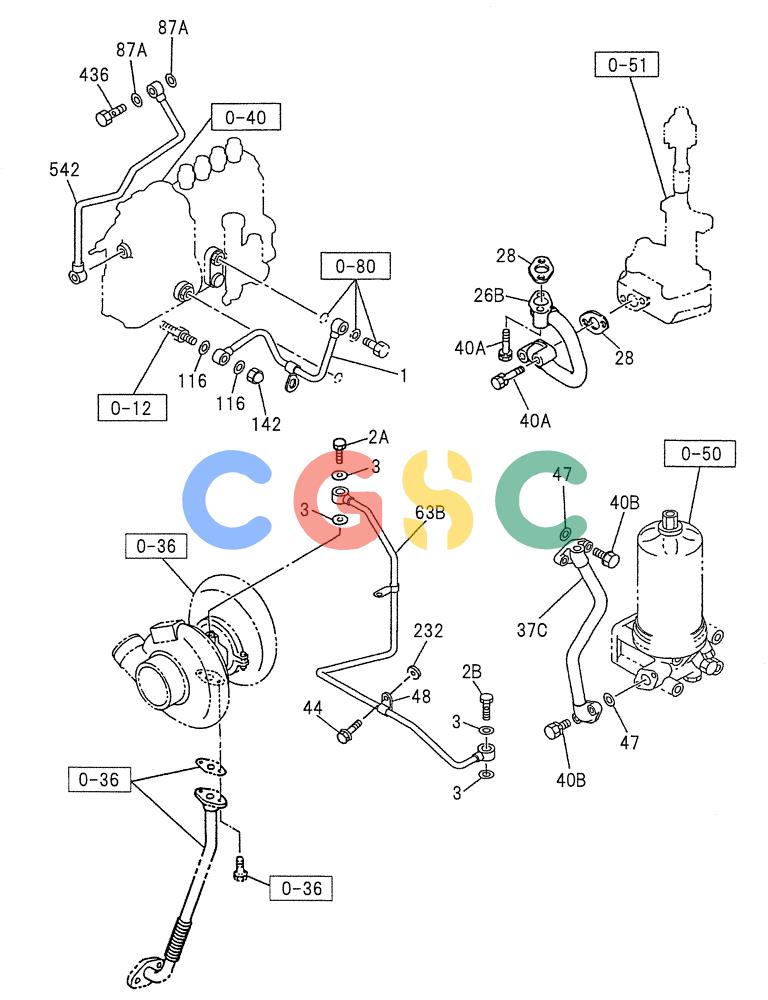

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-024) - OIL AND VACCUM PIPING; ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
610 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8972523211 | [1] | PIPE; OIL,INJ PUMP TO C/BL | |
| 2A. | VI9099062051 | [1] | BOLT | KOBBOLT; EYE,OIL PIPE (M10X24) |
| 2B. | VI1096750810 | [1] | BOLT; EYE,OIL PIPE (M12X24) | |
| 3. | VI9095714100 | [2] | SEAL | KOBGASKET; EYE BOLT,OIL PIPE |
| 3. | VI1096300840 | [2] | GASKET; EYE BOLT,OIL PIPE | |
| 26B. | VI8941310603 | [1] | PIPE; OIL,PUMP TO C/BL | |
| 37C. | VI8972274660 | [1] | TUBE | KOBPIPE; OIL,FILTER TO COOLER |
| 40B. | VI0280808300 | [2] | BOLT | KOBBOLT; OIL PIPE (M8X30 FLANGE) Superseded by part number: VI0280508300 |
| 40B. | VI0280808200 | [1] | BOLT | KOBBOLT; OIL PIPE (M8X20 FLANGE) Superseded by part number: VI0280508200 |
| 40A. | VI0501408450 | [4] | BOLT | KOBBOLT; OIL PIPE (M8X45 W/LK & PL WASHER) Superseded by part number: VI0500408450 |
| 44. | VI0280808120 | [1] | BOLT; CLIP,OIL PIPE (M8X12 FLANGE) | |
| 44. | VI0286810300 | [1] | BOLT | KOBBOLT; CLIP,OIL PIPE (M10X30 FLANGE) |
| 47. | VI1096234620 | [1] | PACKING | KOBGASKET; OIL PIPE |
| 48. | VI1097006952 | [1] | CLIP | KOBCLIP; OIL PIPE (ID=12) |
| 63B. | VI8972221201 | [1] | PIPE | KOBPIPE; OIL, TURBOCHARGER FEED |
| 116. | VI9095720100 | [2] | SEAL | KOBGASKET; CAP NUT,OIL PIPE |
| 142. | VI9098440220 | [1] | NUT | KOBNUT; CAP,OIL PIPE,INJ PUMP TO C/BL |
| 232. | VI5123790010 | [1] | BRACKET | KOBSPACER; OIL PIPE CLIP |
| 436. | VI1096750770 | [1] | BOLT; JOINT | |
