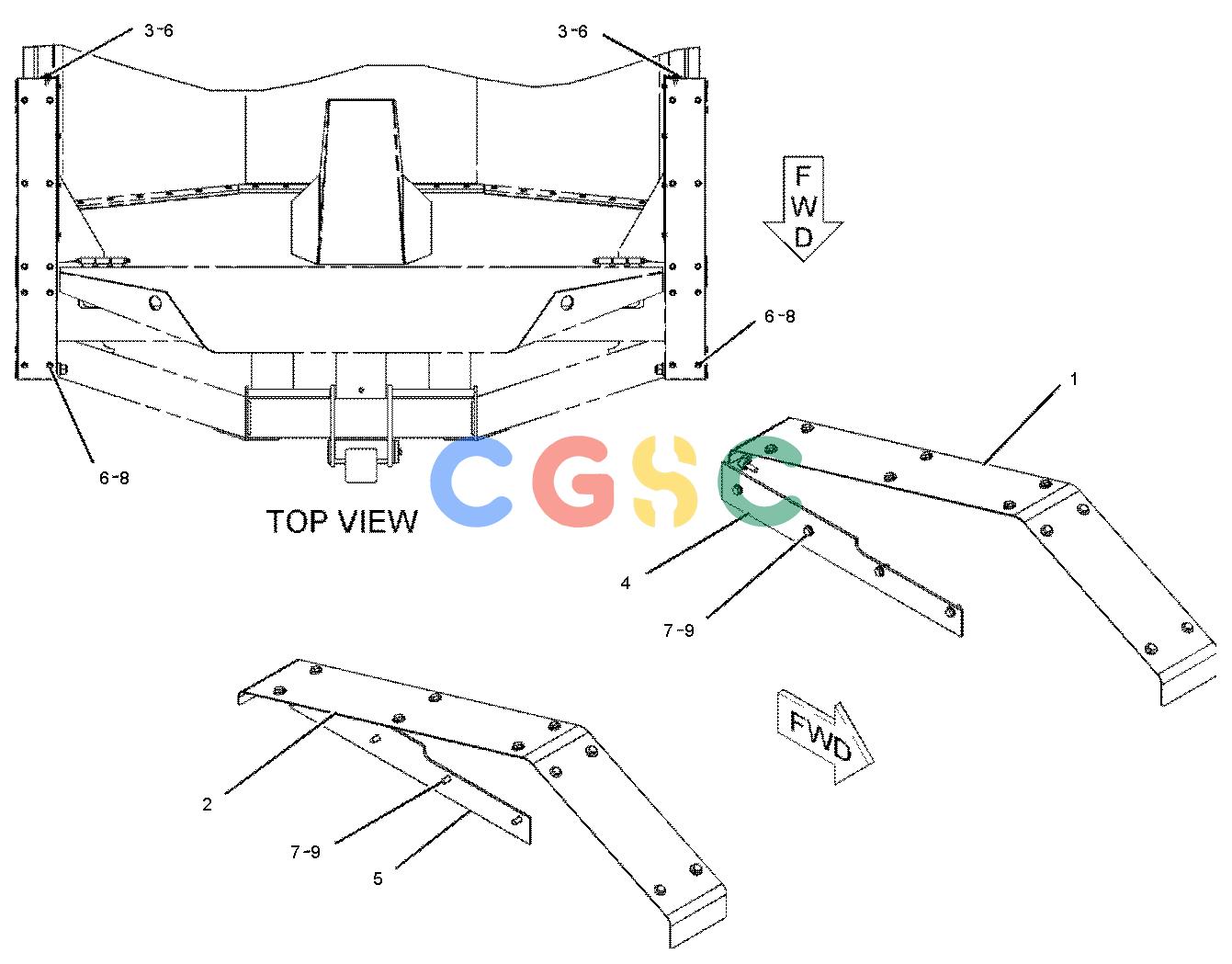

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 174-6371 | [1] | COVER | |
| 2. | 174-6372 | [1] | COVER | |
| 3. | 8T-4910M | [2] | BOLT(M12X1.75X60-MM) | |
| 4. | 196-9764 | [1] | PLATE AS(LH) | |
| 5. | 196-9765 | [1] | PLATE AS(RH) | |
| 6. | 5P-1076 | [22] | WASHER-HARD(13.5X30X4-MM THK) | |
| 7. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 8. | 8T-4192M | [20] | BOLT(M12X1.75X25-MM) | |
| 9. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| M | METRIC PART | |||
