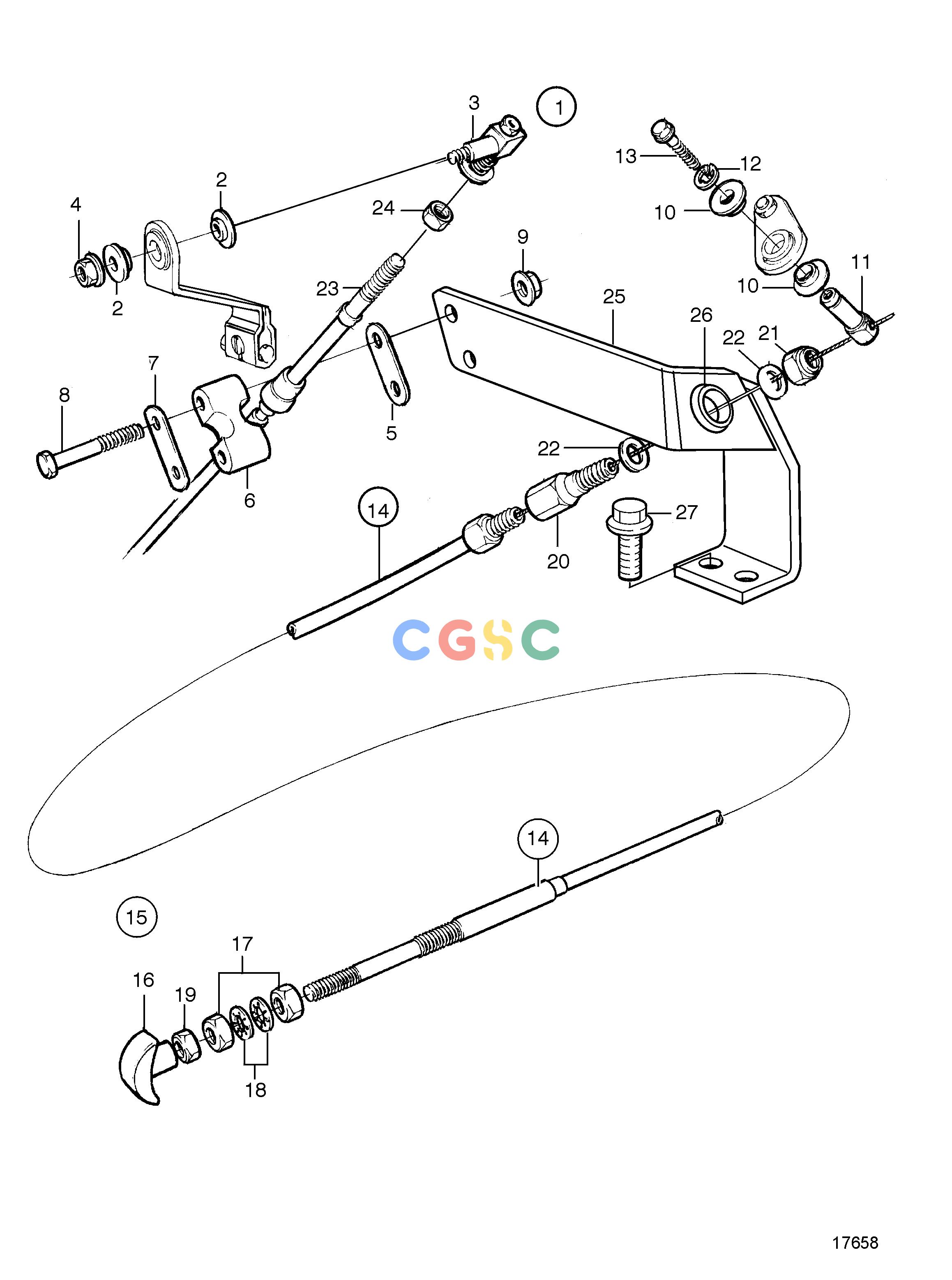

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EControlsControl Connection, Speed and Stop ControlEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
621 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
843105
|
[2] |
Spacer washer
|
|
| 3. |
840692
|
[1] |
Cube
|
|
| 4. |
949874
|
[1] |
Flange lock nut
|
(946577)
|
| 5. |
872076
|
[1] |
Washer
|
|
| 6. |
872074
|
[1] |
Retainer
|
|
| 7. |
819068
|
[1] |
Washer
|
|
| 8. |
969439
|
[2] |
Six point socket scr
|
(955251)
|
| 9. |
949874
|
[2] |
Flange lock nut
|
(946577)
|
| 10. |
843105
|
[2] |
Spacer washer
|
|
| 11. |
861479
|
[1] |
Cable clamp
|
|
| 12. |
951669
|
[1] |
E-circlip
|
|
| 13. |
969556
|
[1] |
Six point socket scr
|
(955229)
|
| 14. |
825765
|
[1] |
Choke control
|
L=3,3m
|
| 14. |
825764
|
[1] |
Choke control
|
L=6,9m
|
| 15. |
818478
|
[1] |
Push pull control
|
For L=3,3m
|
| 15. |
818470
|
[1] |
Push pull control
|
For L=6,9m
|
| 16. |
829241
|
[1] |
Handle
|
|
| 17. |
955857
|
[2] |
Hexagon nut
|
|
| 18. |
955950
|
[2] |
Toothed washer
|
|
| 19. |
955844
|
[1] |
Hexagon nut
|
|
| 20. |
829070
|
[1] |
Cable lock
|
|
| 21. |
945467
|
[1] |
Lock nut
|
|
| 22. |
955894
|
[2] |
Washer
|
|
| 23. |
7740690_087
|
|
Control cable
|
|
| 24. |
|
|
|
|
| 25. |
3580116
|
[1] |
Anchorage
|
|
| 26. |
843109
|
[1] |
Bushing
|
|
| 27. |
946173
|
[2] |
Flange screw
|
(861844)
|
