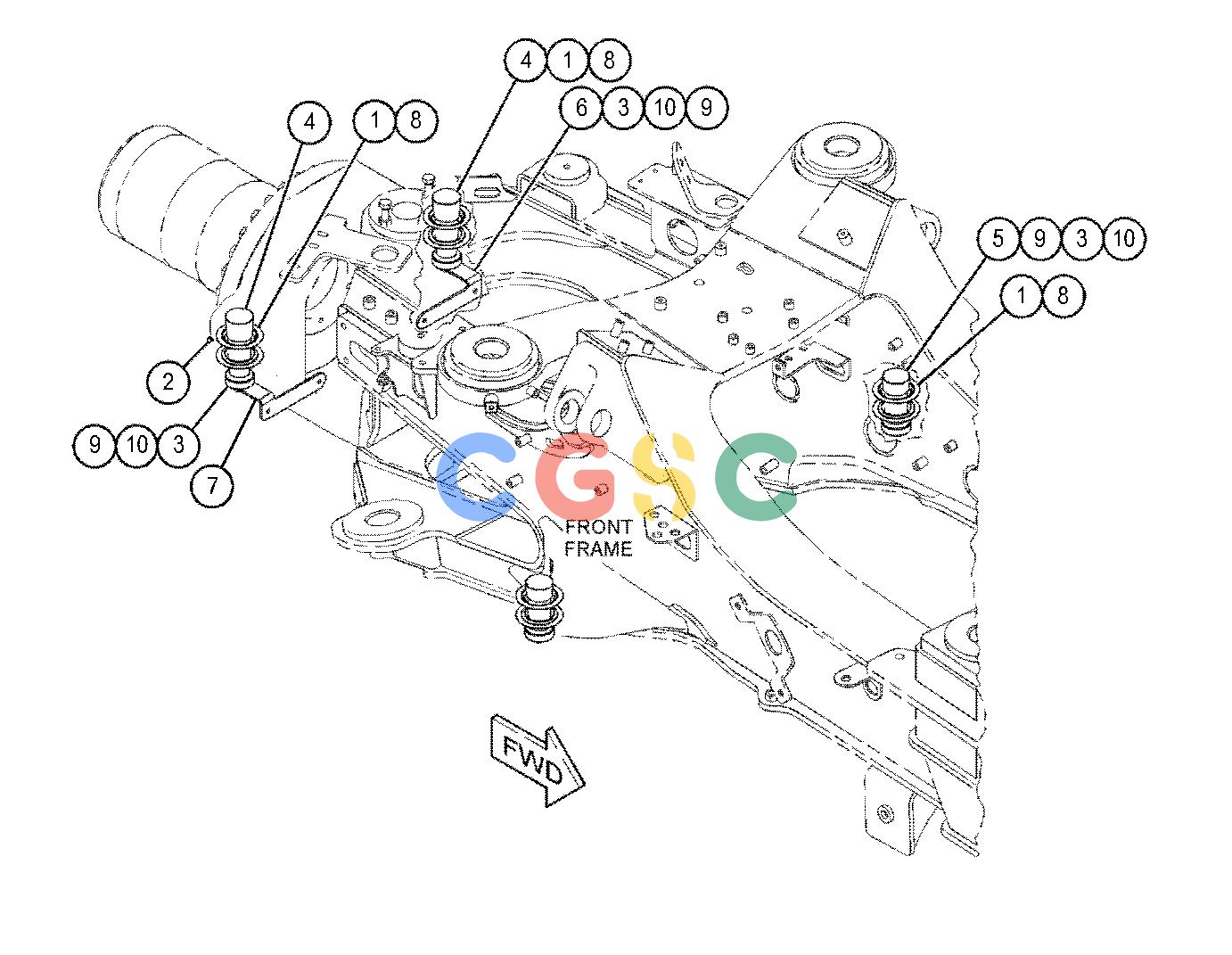

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 3U-9657 | [8] | SEAL-FACE | |
| 2. | 5U-7151 | [2] | CAP-GREASE | |
| 3. | 7U-0887 | [4] | WASHER(17X65X20-MM THK) | |
| 4. | 174-5578 | [2] | PIN-TAPERED | |
| 5. | 174-9517 | [2] | PIN-TAPERED | |
| 6. | 267-1115 | [1] | BRACKET(LH) | |
| 7. | 267-1116 | [1] | BRACKET(RH) | |
| 8. | 7F-2122 | [8] | SEAL-O-RING | |
| 9. | 8T-4140M | [4] | BOLT(M16X2X60-MM) | |
| 10. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| M | METRIC PART | |||
