659241R93
|
[1] |
|
P

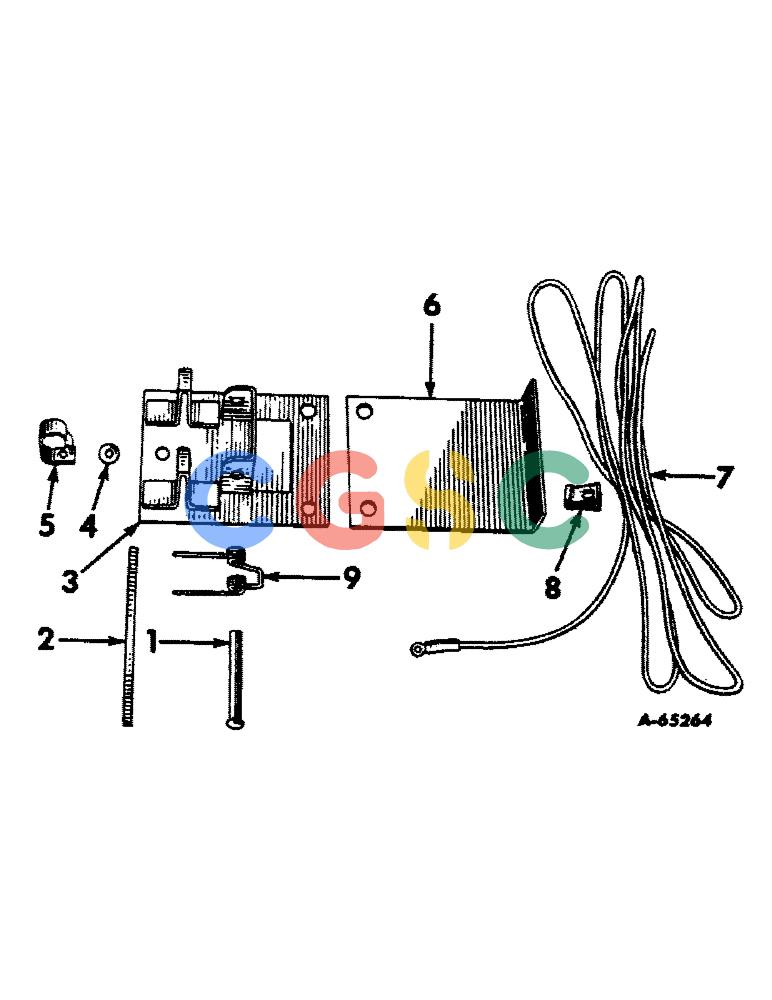

ENGINE SHUT-OFF DEVICE ATTACHMENT, Consists of all the parts listed below
|
| 1. |
Q530
|
[1] |
HEADED PIN,7.92mm OD x 63.5mm L
|
IH
PIN, straight, 5/16 x 1"
|
| . . |
103384
|
[1] |
COTTER PIN,1/8" x 3/4"
|
IH
Pin, Split (Cotter), 1/8" x 3/4" Superseded by part number: 80755
|
| 2. |
659235R1
|
[1] |
|
P
ACTUATOR, engine shut- off
|
| . . |
120614
|
[1] |
NUT,Hex, #10 - 32
|
IH
NUT, #10-32 Superseded by part number: 87825
|
| . . |
490-1108
|
[1] |
SCREW,Cross Pan Hd, #10-32 x 1/2"
|
CAS
slotted-hd., cd-pltd., no. 10-32 x 1/2" Superseded by part number: 86625206
|
| . . |
120217
|
[1] |
LOCK WASHER,#10
|
IH
WASHER, LOCK, #10 Superseded by part number: 80684
|
| . . |
120391
|
[1] |
WASHER,#10
|
IH
plain, 7/32" ID x 1/2" OD x no. 18 ga. Superseded by part number: 9824326
|
| 3. |
659229R91
|
[1] |
|
P
BASE, engine shut-off (Welded assembly)
|
| . . |
17425R1
|
[2] |
BOLT,Hex, 5/16" - 18 x 1", Gr 2
|
IH
mach., hex-hd., 5/16-18NC x 1" Superseded by part number: 179818
|
| . . |
9635082
|
[2] |
NUT,5/16" - 18, Gr 5
|
NH
hex., 5/16-18NC
|
| . . |
103320
|
[2] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| 4. |
659236R1
|
[2] |
|
P
WASHER, engine shut-off spring
|
| 5. |
659233R1
|
[1] |
|
P
SPRING, contact, engine shut-off
|
| 6. |
665186R1
|
[1] |
|
P
SUPPORT, engine shut-off
|
| . . |
17411R1
|
[2] |
BOLT,Hex, 5/16"-18 X 3/4", G2
|
IH
mach., hex-hd., 5/16-18NC x 3/4" Superseded by part number: 179816
|
| 7. |
664547R91
|
[2] |
|
P
LEAD, assembly
|
| 8. |
140568
|
[3] |
CLAMP
|
IH
CLIP, cable
|
| 9. |
659234R1
|
[1] |
|
P
SPRING, engine shut-off actuator
|
