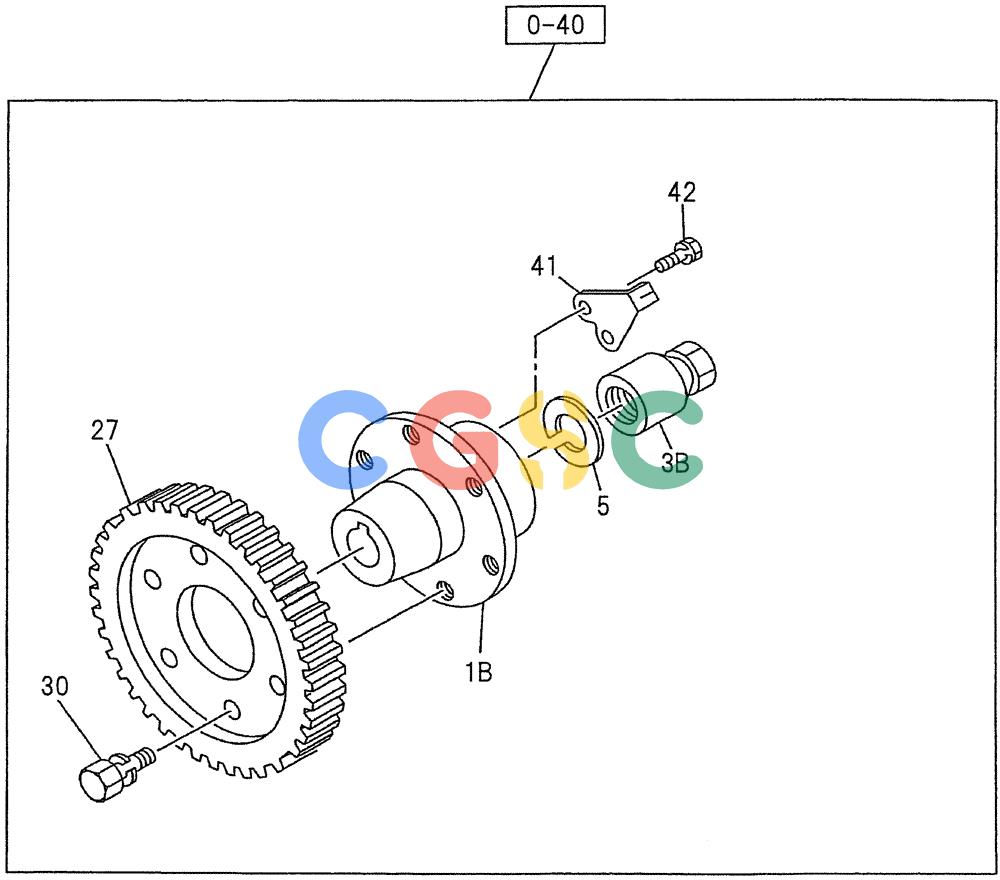

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-032) - COUPLING; INJECTION PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
792 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1B. | VI8971177760 | [1] | COUPLING; INJ PUMP DRIVE | |
| 3B. | VI1157491440 | [1] | NUT; COUPLING FIX, INJ PUMP | |
| 5. | VI1157491450 | [1] | WASHER; COUPLING FIX, INJ PUMP | |
| 27. | VI8971360130 | [1] | GEAR; COUPLING | |
| 30. | VI8944575170 | [6] | BOLT | KOBBOLT; GEAR TO COUPLING |
| 41. | VI8971177770 | [1] | POINTER; COUPLING | |
| 42. | VI9019106120 | [2] | BOLT; POINTER TO COUPLING (M6X12 W/LK WASHER) | |
