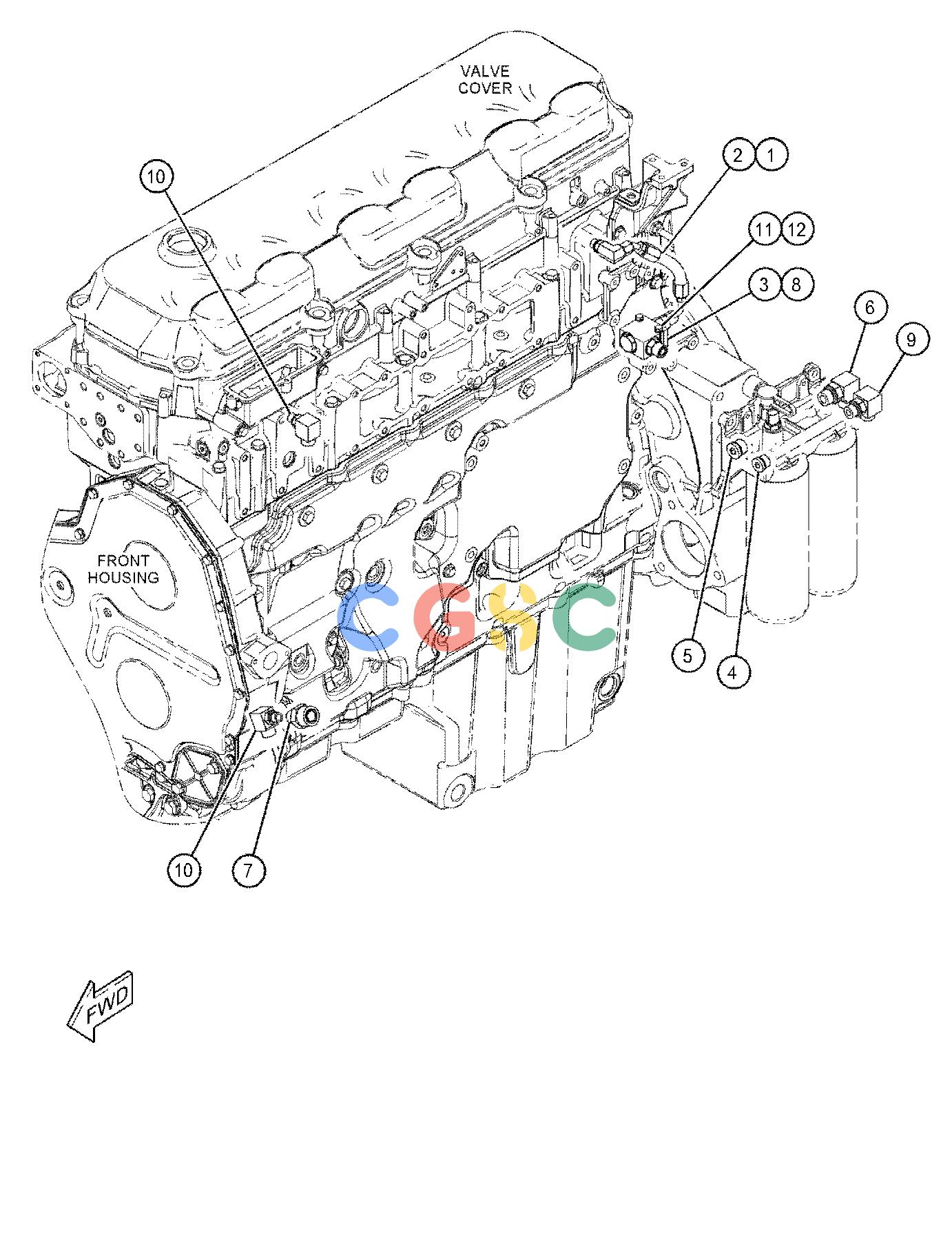

卡特零件查询（730） 344-7260: LINES GP-FUEL
广数供应链运营团队, 15 02月, 2025，浏览：
912 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 345-7589I | [1] | HOSE AS | |
| 2. | 347-4404 | [1] | ADAPTER AS | |
| | 214-7568 | [11] | SEAL-O-RING | |
| | 347-4403 | [1] | ADAPTER-ELBOW | |
| 3. | 352-8928Y | [1] | REGULATOR GP-FUEL PRESSURE | |
| 4. | 398-5596C | [1] | PLUG AS | |
| | 238-5080 | [1] | SEAL-O-RING | |
| | 360-3680 | [1] | PLUG | |
| 5. | 398-5601C | [1] | PLUG AS | |
| | 238-5081 | [1] | SEAL-O-RING | |
| | 360-3681 | [1] | PLUG(7/8-14-THD) | |
| 6. | 281-5975C | [1] | ELBOW AS | |
| | 6V-8626 | [1] | ELBOW | |
| | 228-7091 | [1] | SEAL-O-RING | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 7. | 281-5982C | [1] | CONNECTOR AS | |
| | 6V-9874 | [1] | CONNECTOR(STRAIGHT) | |
| | 228-7092 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 8. | 319-6217 | [1] | CONNECTOR AS | |
| | 6V-8639 | [1] | CONNECTOR | |
| | 228-7090 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 9. | 319-6225C | [1] | ELBOW AS | |
| | 6V-8625 | [1] | ELBOW | |
| | 228-7090 | [1] | SEAL-O-RING | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 10. | 319-6226C | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 8T-6876 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7090 | [1] | SEAL-O-RING | |
| 11. | 9X-8267 | [2] | WASHER(6.6X12X2-MM THK) | |
| 12. | 8T-0275M | [2] | BOLT(M6X1X50-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
