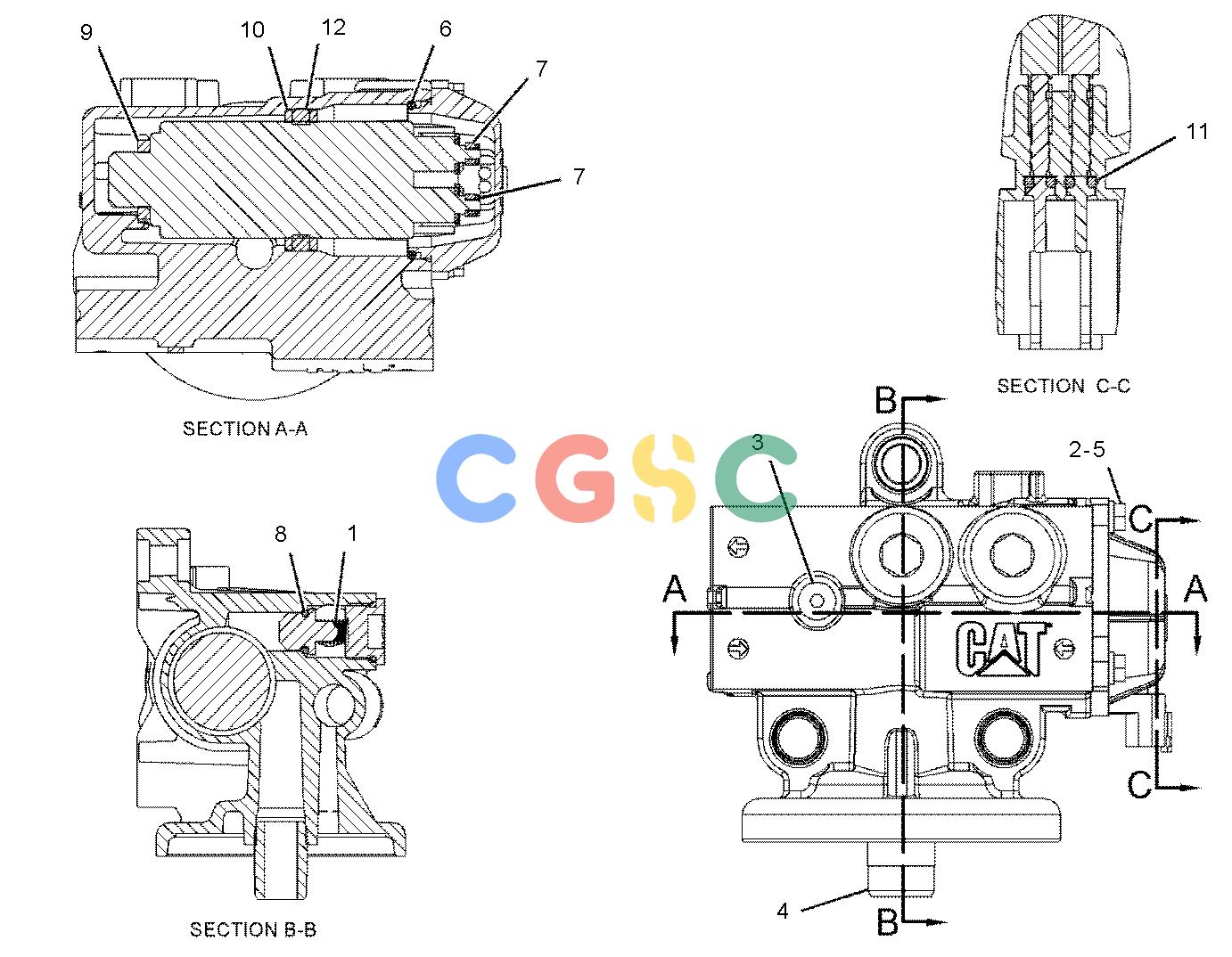

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 162-2222 | [2] | SPRING | |
| 2. | 9X-8267 | [3] | WASHER(6.6X12X2-MM THK) | |
| 3. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 4. | 9S-4167 | [1] | STUD-HOLLOW(1-14X1.47-IN) | |
| 5. | 8T-4138M | [3] | BOLT(M6X1X20-MM) | |
| 6. | 447-7206 | [1] | SEAL-O-RING | |
| 7. | 6D-5801 | [2] | LOCKNUT(8-32-THD) | |
| 8. | 236-6717 | [2] | SEAL-O-RING | |
| 9. | 188-7541 | [1] | SEAL | |
| 10. | 173-1016 | [2] | RING-BACKUP | |
| 11. | 179-7400 | [2] | SEAL | |
| 12. | 188-7536 | [1] | SEAL | |
| M | METRIC PART | |||
