日立零件查询（CX1000）INTAKE HEATER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
745 次

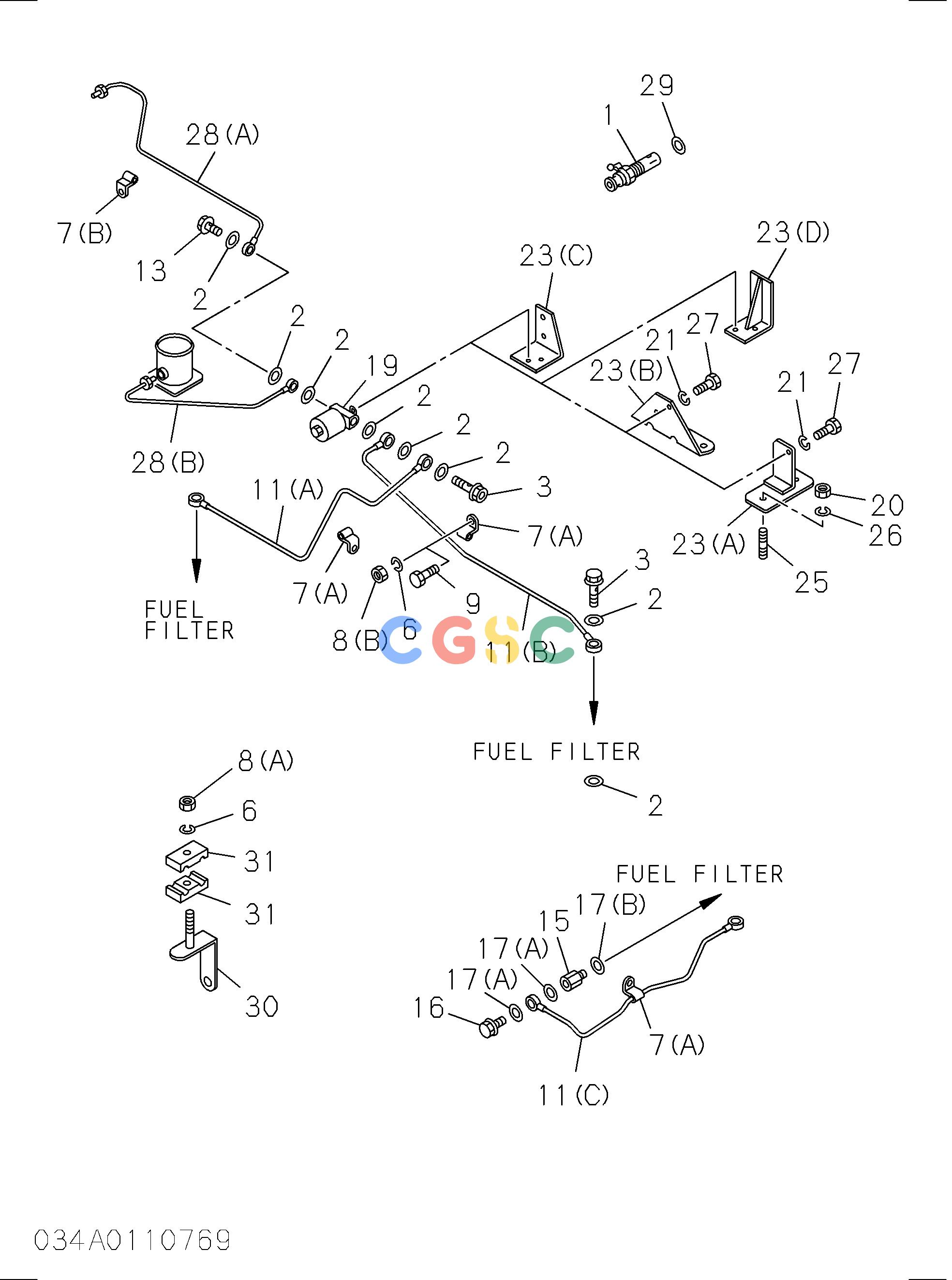

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1814300230 | [2] | HEATER; INT | |
| 2. | 1096300830 | [4] | GASKET; FUEL PIPE FILTER TO VLV | |
| 2. | 1096300820 | [3] | GASKET; FUEL PIPE FILTER TO VLV | |
| 3. | 1096750760 | [2] | BOLT; EYE FUEL PIPE | M10X18 |
| 6. | 9091505100 | [2] | WASHER; LK,CLIP,FUEL PIPE | |
| 6. | 9091505050 | [5] | WASHER; LK,CLIP,FUEL PIPE | |
| 7(A). | 1097005630 | [2] | CLIP; FUEL PIPE | |
| 7(A). | 9095250350 | [1] | CLIP; FUEL PIPE | |
| 8(A). | 9991104050 | [4] | NUT; CLIP FUEL PIPE | |
| 8(B). | 9091104100 | [2] | NUT; CLIP FUEL PIPE | |
| 11(B). | 1154145040 | [1] | PIPE ASM; FUEL FILTER TO VLV | |
| 13. | 1096750381 | [1] | BOLT; EYE | M8X24 |
| 19. | 1825633441 | [1] | VALVE; MAG INT HTR | |
| 20. | 9091104100 | [2] | NUT; BRKT | |
| 21. | 9091505050 | [2] | WASHER; LK,VLV | |
| 23(D). | 1825690880 | [1] | BRACKET; MAG VLV INT HTR | |
| 26. | 9091505100 | [2] | WASHER; LK,BRKT | |
| 27. | 0208005100 | [2] | BOLT; VLV | M5X10 |
| 28(A). | 1154135511 | [1] | PIPE ASM; FUEL VLV TO INT HTR | |
| 28(B). | 1154135501 | [1] | PIPE ASM; FUEL VLV TO INT HTR | |
| 29. | 9095714220 | [2] | GASKET; INT HTR | |
