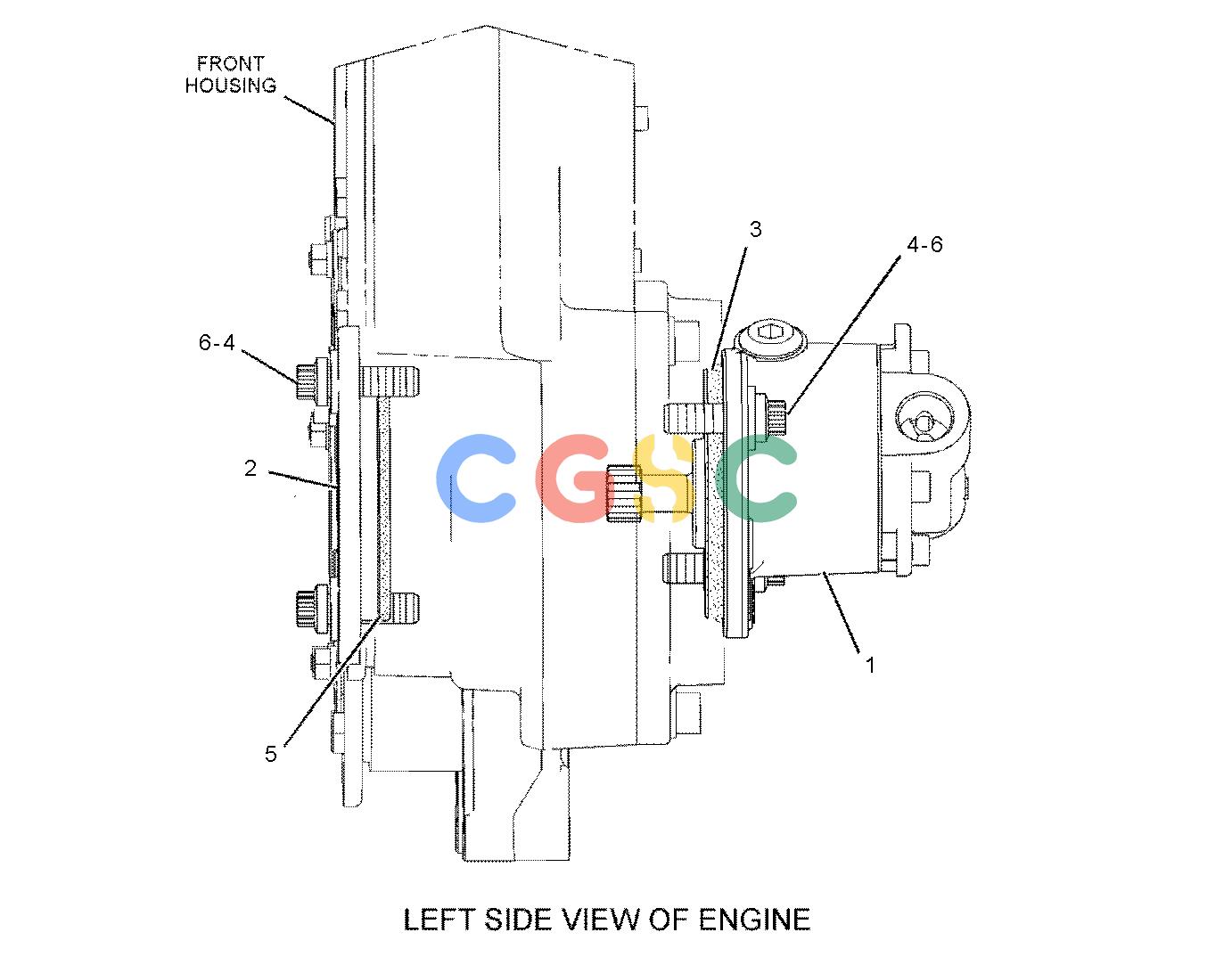

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 384-8611Y | [1] | PUMP GP-FUEL TRANSFER | |
| 2. | 296-3447 | [1] | COVER | |
| 3. | 107-5769 | [1] | SEAL-O-RING | |
| 4. | 136-4183M | [4] | BOLT-12 POINT HEAD(M10X1.5X30-MM) | |
| 5. | 5P-4889 | [1] | SEAL-O-RING | |
| 6. | 6V-5839 | [4] | WASHER(11X21X2.5-MM THK) | |
| M | METRIC PART | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
| Y | SEPARATE ILLUSTRATION | |||
